3.2v 230ah 280ah Li-Ion Prismatic Engery Storage Battery Cells

3.2v 230ah 280ah Li-Ion Prismatic Engery Storage Battery Cells

Category Solar Related Products Tag Engery Storage Battery Cells

Standard Voltage	3.2V RT@0.5C Discharge	3.2V RT@05C Discharge
Nominal Capacity	230Ah RT@0.5C Discharge	280Ah RT@0.5C Discharge
Voltage Range	2.0V-3.65V	2.0V-3.65V
Standard Charge	0.5C CC to 3.65V, 3.65V CV to 0.05C

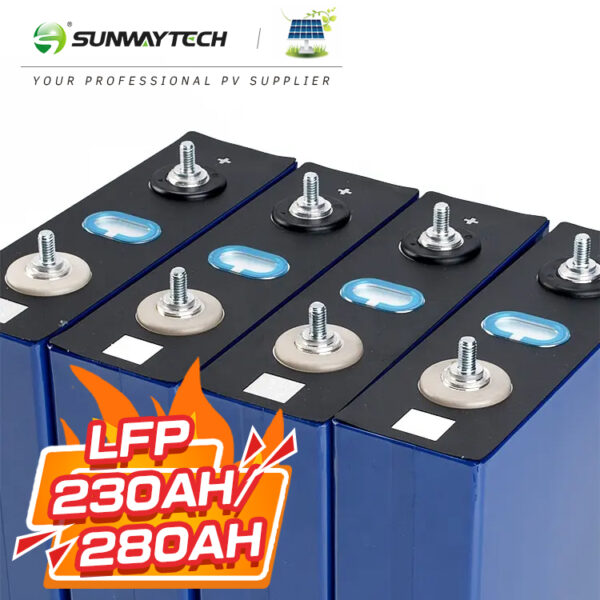

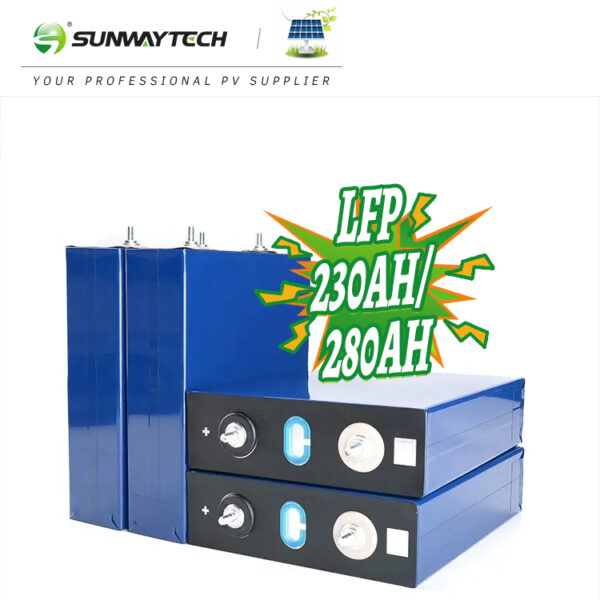

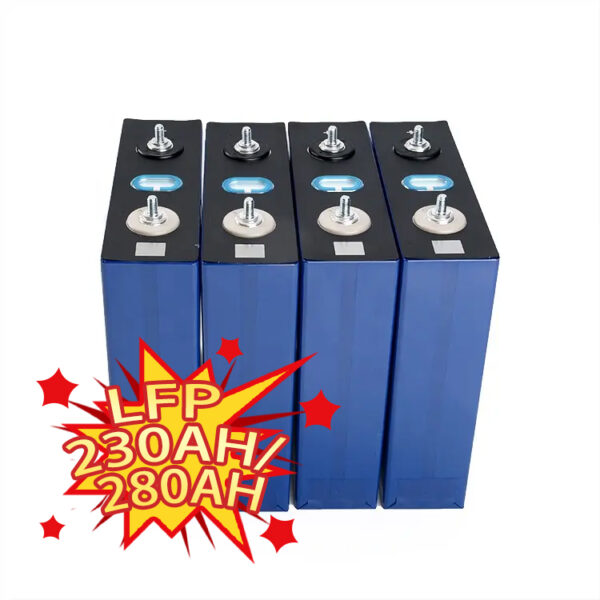

Prismatic Cells

Prismatic cells consist of large sheets of anodes, cathodes, and separators sandwiched, rolled up, and pressed to fit into a metallic or hard-plastic housing in cubic form. The electrodes can also be assembled by layer stacking. Lithium prismatic cells feature either single-row or two-row modules and the arresters are always on the same side regardless of the row.

Prismatic cells are either adhesive-bonded by welding, with busbars and support plates, or traction / form-fit connected with screwing/] or latching as joining technology and hole-busbars as a bridge. Lastly, prismatic cells can be fixed by gluing. This requires a light and elastic joining medium to avoid air pockets.

Product Parameters

Type	LFP54173202	LFP71173204
Standard Voltage	3.2V RT@0.5C Discharge	3.2V RT@05C Discharge
Nominal Capacity	230Ah RT@0.5C Discharge	280Ah RT@0.5C Discharge
Voltage Range	2.0V-3.65V	2.0V-3.65V
Standard Charge	0.5C CC to 3.65V, 3.65V CV to 0.05C
Max Charge Current	230A	280A
Standard Discharge	0.5C CC to 2.5V
Max Discharge Current	230A	280A
TEM	Charge: 0°C - 55°C Discharge : -20°C - 55°C
Weight	4150g	5350g
Dimension（mm）	53173206	71173206
Densitu	>=175Wh/kg >=380wh/L	>=165wh/kg >=350wh/L
Life Cycle	4000	4000

Product Details

Product Packaging
