Item | Spec. | Qty |

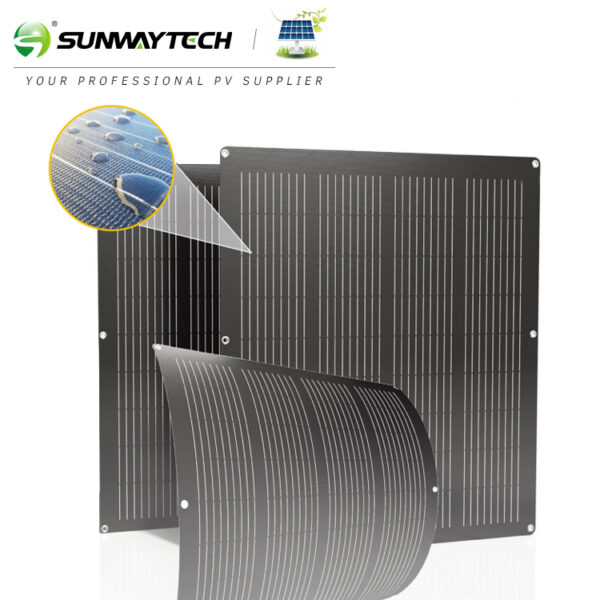

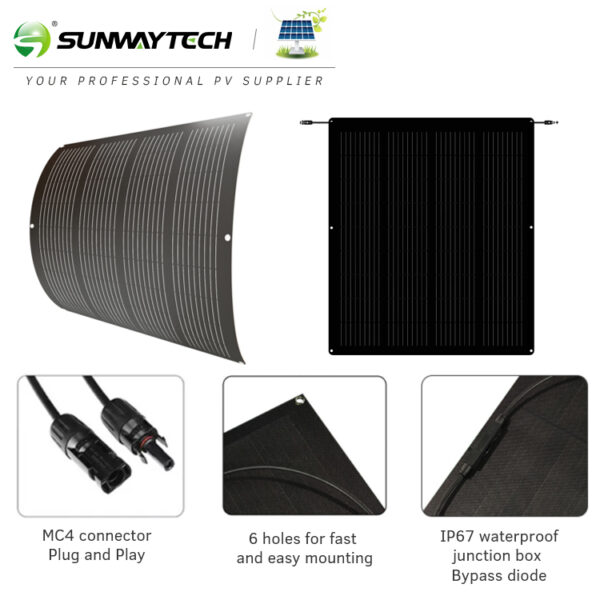

110W Flexible Solar Panel | 110W 6 holes | 8 |
Fastener (optional) | Stainless steel Black | 6*8 |
Tieback+zinc coat fastener | 6*8 | |

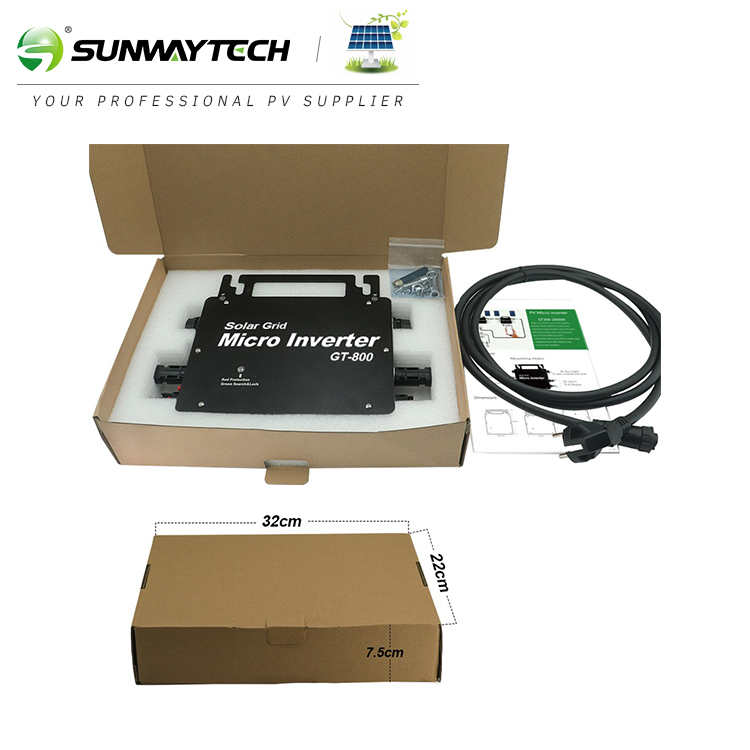

800W Micro inverter | 800W Micro inverter (2M AC cable+ users manual) | 1 |
PV cables 2 | 4mm2 PV cables red+black | / |
A "balcony solar system" typically refers to a small-scale solar power generation setup installed on a balcony, typically as part of a residential or commercial building. It is a type of distributed energy system designed to harness solar energy for generating electricity to meet some of the energy needs inside the building. Here's some basic information about a balcony solar system:
1. Solar Panels: The core component of a balcony solar system is solar panels, usually mounted on the top or sides of the
balcony. These solar panels consist of numerous solar cells that convert sunlight into direct current (DC) electricity.
2. Inverter: The electricity generated by the solar panels is in the form of DC, while most household appliances use alternating current (AC). Therefore, the system typically includes an inverter to convert the DC electricity generated by the solar panels into AC electricity that can be used for household power.
3. Battery Storage System: Some balcony solar systems may include battery storage systems to store excess electricity generated. This allows the solar system to provide power during the night or in adverse weather conditions. Battery storage also increases self-sufficiency and reduces dependence on the grid.
4. Monitoring and Control System: To ensure the efficiency and safety of the system, balcony solar systems often come with monitoring and control systems that track real-time information such as solar energy production, battery status, and electricity consumption.

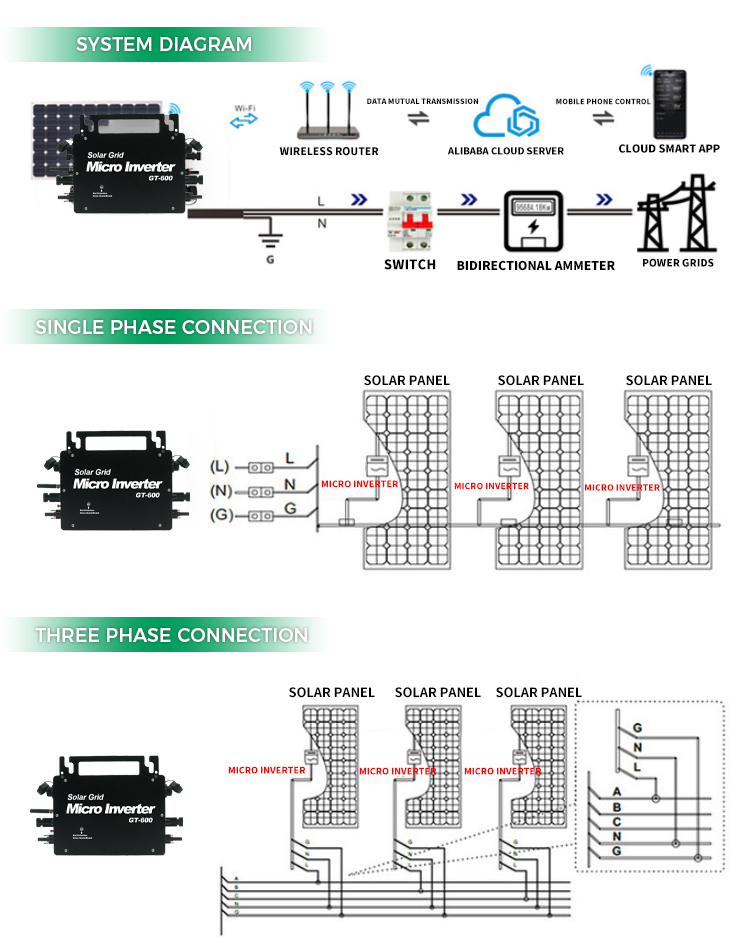

5. Grid Connection: Some balcony solar systems are designed to be grid-connected, meaning they can sell excess electricity back to the grid or draw power from the grid when needed. This is often referred to as "grid-tied photovoltaic."
Advantage:
High Power Output;
Item | Spec. | Qty |
110W Flexible Solar Panel | 110W 6 holes | 8 |
Fastener (optional) | Stainless steel Black | 6*8 |
Tieback+zinc coat fastener | 6*8 | |
800W Micro inverter | 800W Micro inverter (2M AC cable+ users manual) | 1 |
PV cables 2 | 4mm2 PV cables red+black | / |
Packing | carton box | 1 |
