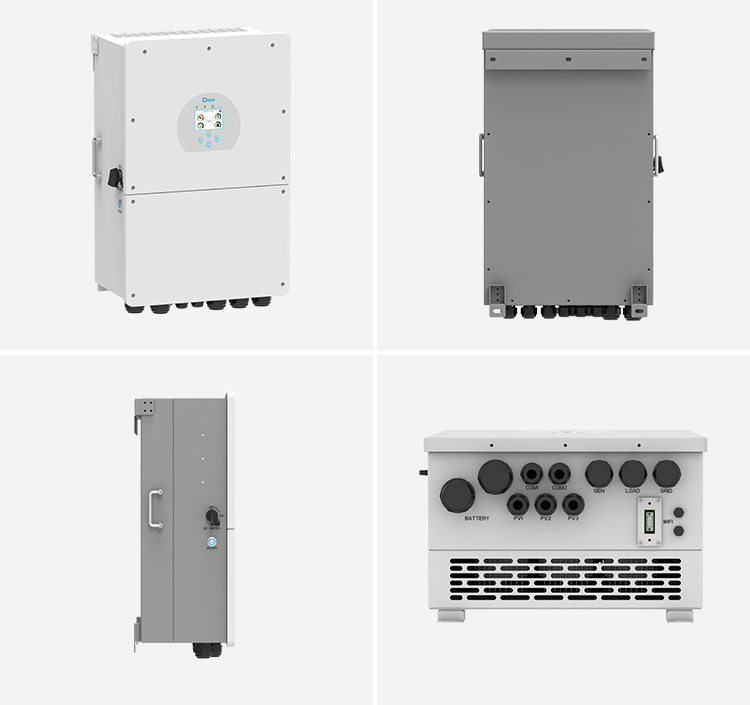

Deye SUN-16K-SG01LP1-EU 16KW Single-Phase Hybrid Solar Inverter

Deye 16KW Single-Phase Hybrid Solar Inverter

Deye SUN-16K-SG01LP1-EU 16KW Single-Phase Hybrid Solar Inverter

Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)

Model Number:	SUN-16K-SG01LP1-EU
Output power：	16KW
Output Voltage:	230V
Size:	464763282(mm)
Weight：	52KG

SUN-12/14/16K-SG01LP1-EU is an advanced hybrid inverter specifically designed for energy storage systems. With a power capacity of 12-16 kW, it operates on a single phase and features three Maximum Power Point Tracking (MPPT) inputs to optimize solar energy harvesting. This inverter seamlessly integrates with low-voltage battery systems, making it perfect for storing renewable energy for later use. Its durable construction comes with a warranty of either 5 or 10 years, ensuring long-term reliability and performance. Ideal for both residential and commercial applications, it offers a sustainable solution for efficient energy management.

Model	SUN-16K-SGO1LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	290
Max.Discharging Current(A)	290
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	2
PV String Input Data	32000
Max. PV Access Power (W)	20800
Max DC Input Voltage（V）	500
Start-up Voltage（V）	125
MPPT Voltage Range（V）	150-425
Rated DC Input Voltage(V)	370
Max Input Short-Circuit Current（A）	44+44+44
Max Operating PV Input Current（A）	26+26+26
No.of MPP Trackers/No.of String Per MPP Tracker	3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	16000
Max AC Input/Output Apparent Power （VA）	17600
Peak Power (off-grid)（W）	2 times of rated power,10s
Rated AC Input/Output Current（A）	72.7/69.6
Max AC Input/Output Current（A）	80/76.5
Max Continuous AC Passthrough (grid to load)（A）	100
Rated Input/Output Voltage/Range(V)	220V/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading-0.8lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Noise	＜50 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	464763282（Excluding connectors and brackets）
Weight[kg]	52
Warranty	5 Years/10 Years，the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727,IEC 62116,NRS 097
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
