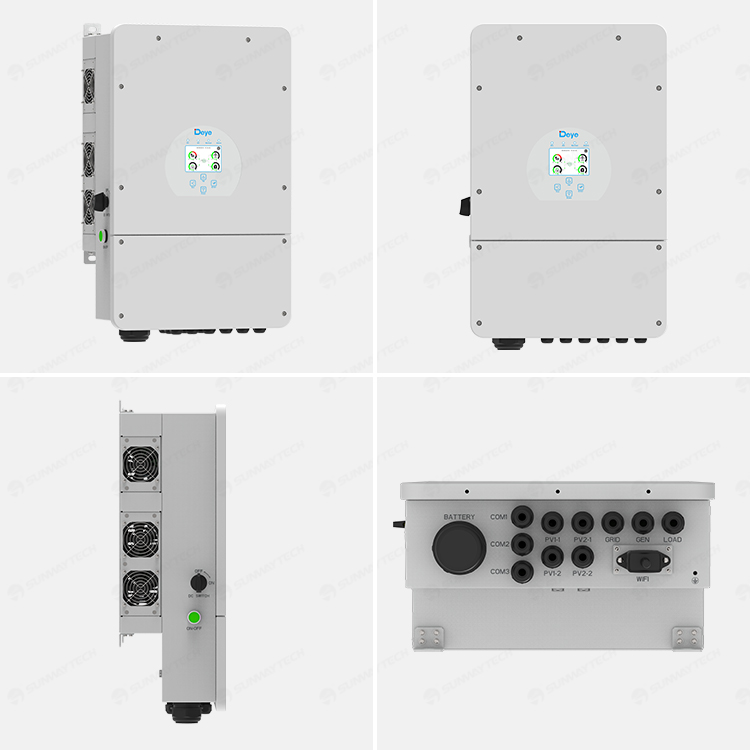

Deye SUN-12K-SG02LP1-EU-AM3 hybrid inverter single phase 10-12KW

Deye hybrid inverter single phase 10-12KW

Deye SUN-12K-SG02LP1-EU-AM3 hybrid inverter single phase 10-12KW

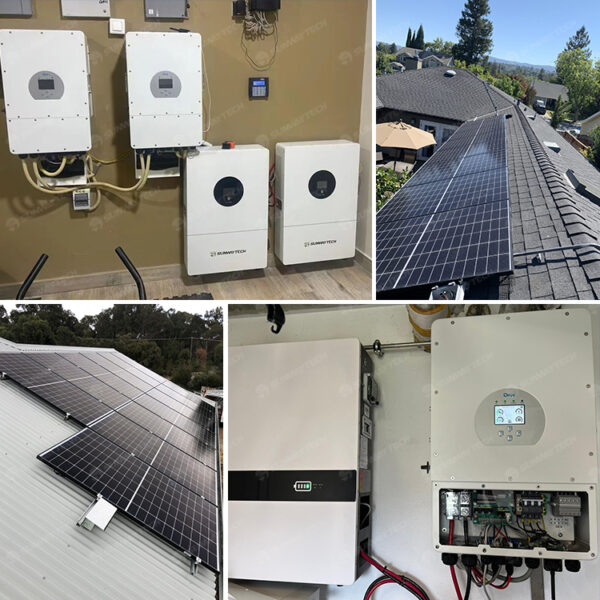

Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)

Model Number:	SUN-12K-SG02LP1-EU-AM3
Output power：	7.6KW 8KW 10KW 12KW
Output Voltage:	230v
Size(mm):	420×670×233
Weight(KG)：	35.6

SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3, is a high-performance single-phase inverter designed for residential and commercial solar applications. With power options ranging from 7.6 kW to 12 kW, this inverter efficiently converts solar energy into usable electricity. Its advanced MPPT technology ensures optimal energy harvesting under varying conditions. The device features an IP65 rating, making it suitable for outdoor installations, and offers robust communication capabilities for remote monitoring.

Model	SUN-7.6K-SG02LP1-EU-AM2	SUN-8K-SG02LP1-EU-AM2	SUN-10K-SG02LP1-EU-AM3	SUN-12K-SG02LP1-EU-AM3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	190	190	220	250
Max.Discharging Current(A)	190	190	220	250
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	15200	16000	20000	24000
Max DC Input Power（W）	11400	12000	15000	18000
Max DC Input Voltage（V）	500
Start-up Voltage（V）	125
MPPT Voltage Range（V）	150-425
Rated DC Input Voltage(V)	370
Max. Operating PV Input Current (A)	26+26		26+26+26
Max. Input Short-Circuit Current (A)	44+44		44+44+44
No.of MPP Trackers/No.of String Per MPP Tracker	2/2+2		3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	7600	8000	10000	12000
Max AC Input/Output Apparent Power （VA）	8360	8800	11000	13200
Peak Power (off-grid)（W）	2 times of rated power,10s
Rated AC Input/Output Current（A）	34.6/33.1	36.4/34.8	45.5/43.5	54.6/52.2
Max AC Input/Output Current（A）	34.6/33.1	36.4/34.8	45.5/43.5	54.6/52.2
Max Continuous AC Passthrough (grid to load)（A）	50		60
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Noise	＜45
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC IV(AC)
Cabinet size （WHD）[mm]	420×670×233（Excluding connectors and brackets）
Weight[kg]	35.6
Warranty	5 Years/10 Years，the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
