Deye SUN-3.6/5/6K-SG03LP1-EU Hybrid Inverter Single Phase

Deye SUN-3.6/5/6K-SG03LP1-EU Hybrid Inverter Single Phase

Categories Deye Inverter, Hybrid Solar Inverter

Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)

Model Number:	SUN 3.6/5K/6K-SG03LP1-EU
Output power：	3.6KW 5KW 6KW
Output Voltage:	220/230Vac
Size(mm):	330580232mm
Weight(KG)：	25kg

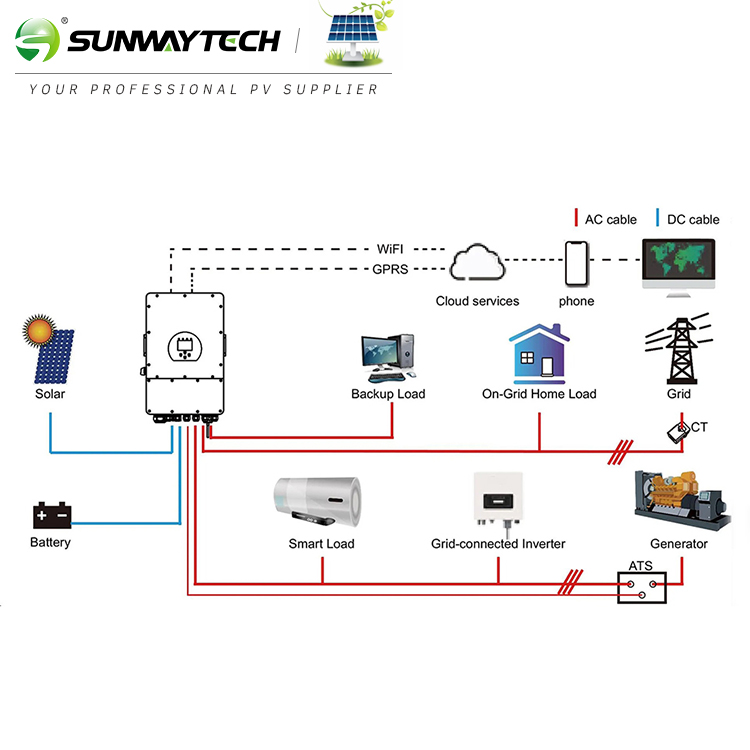

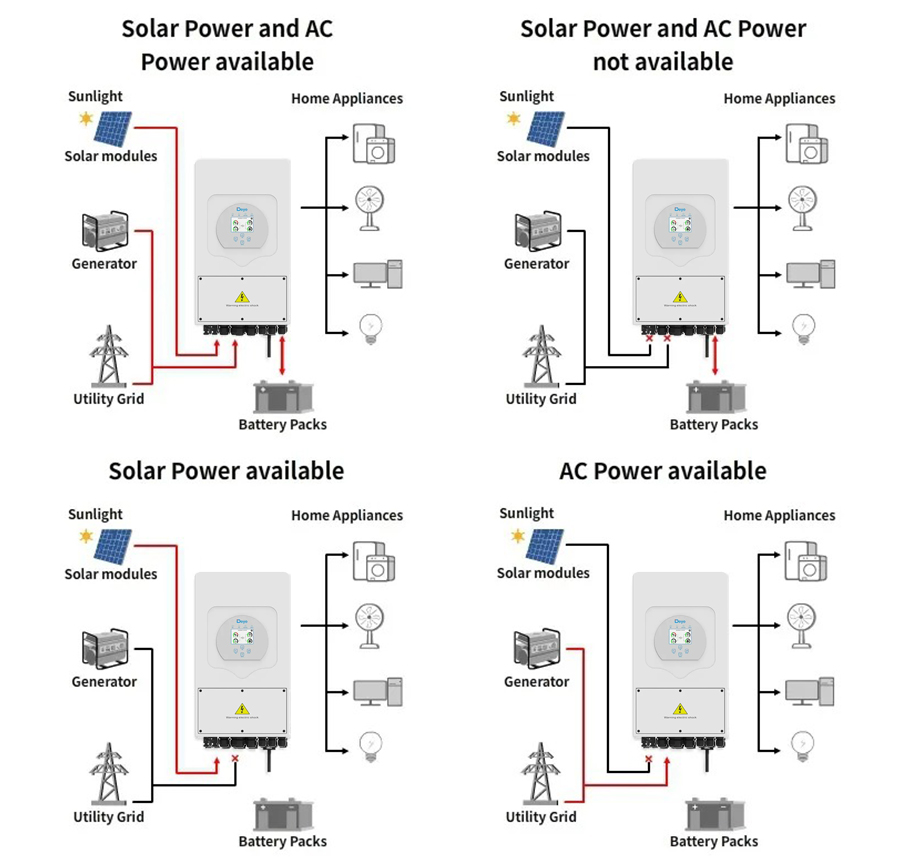

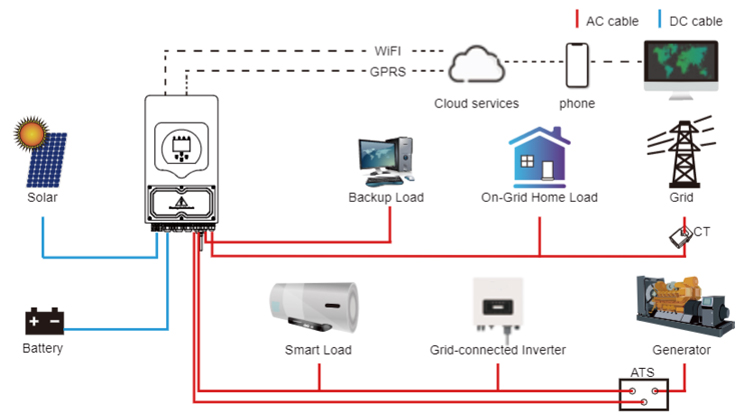

SUN 3.6/5K/6K-SG03LP1-EU，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/5K/6K-SG03LP1-EU. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication

Model	SUN-3.6K-SG03LP1-EU	SUN-5K-SG03LP1-EU	SUN-6K-SG03LP1-EU
Battery Input Date
Battery Type	Lead-acid or Li-Lon
Battery Voltage Range(V)	40~60
Max.Charging Current(A)	90	120	135
Max.Discharging Current(A)	90	120	135
Charging Strategy for Li-lon Battery	Self-adaption to BMS
PV String Input Date
Max.PV Access Power	7200	10000	12000
Max.PV Input Power(W)	4680	6500	7800
Max.PV Input Voltage(V)	500
Rated PV Input Voltage(V)	370(125~500)
Start-up Voltage(V)	125
MPPT Voltage Range(V)	150-425
PV Input Current(A)	13+13
Max.PV ISC(A)	17+17
Number of MPPT/Strings per MPPT	2/1+1

AC Input/Output Date
Rated AC Output/Output Active Power(W)	3600	5000	6000
Max.AC Input/Output Apparent Power(VA)	3690	5500	6600
Rated AC Input/Output Current（A）	16.4/15.7	22.7/21.7	27.3/26.1
Max AC Input/Output Current（A）	18/17.2	25/23.9	30/28.7
Max. Continuous AC Passthrough (A)	35		40
Peak Power (off grid)	2 time of rated power, 10 S
Rated Input/Output Voltage/Range(V)	220V/230 0.85Un-1.1Un
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Type	Single Phase
Total Current Harmonic Distortion THDi	<3% (of nominal power)
General Data
Operating Temperature Range (°C)	-45~60°C, >45°C derating
Cooling	Natural cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	25
Size (mm)	330W x 580H x232D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years/10years
