High Voltage Deye BOS-G(Pro) 5.12kwh Lithium Ion Battery

High Voltage Deye BOS-G(Pro) 5.12kwh Lithium Ion Battery

Category Racked Lithium Battery

Protection Class	IP20
Dimension	530602 1599mm/5306022187mm
Weight(Kg)	408KG /594KG
Nominal Voltage (V)	51.2V
Nominal Capaaity (AH)	51.2

Deye BOS-G Battery
Deye BOS-G high-voltage battery is an advanced energy storage solution designed for efficiency and longevity. With a warranty period of ten years, this battery offers a power range from 15 kWh to 60 kWh, making it suitable for various applications. It features a CAN 2.0/R548 communication port for seamless integration into existing systems. The rack-mounted installation design allows for space-saving setups in diverse environments. Additionally, the Deye BOS-G comes with complete certifications, ensuring safety and reliability for users. This battery is ideal for both residential and commercial energy needs.

Battery Module Number	B0S-G15	B0S-G20	B0S-G25	B0S-G30	B0S-G35
Battery Module Qty In Series (Optional)	3	4	5	6	7
System Nominal Voltage (V)	153.6	204.8	256	307.2	358.4
System Operating Voltage (V)	124.8~175.2	166.4~233.6	208~292	249.6~350.4	291.2~408.8
System Energy (kwh)	15.36	20.48	25.6	30.72	35.84
System Usable Energy (kwh)	13.82	18.43	23.04	27.64	32.25
Rated DC Power	15.36	20.48	25.6	30.72	35.84

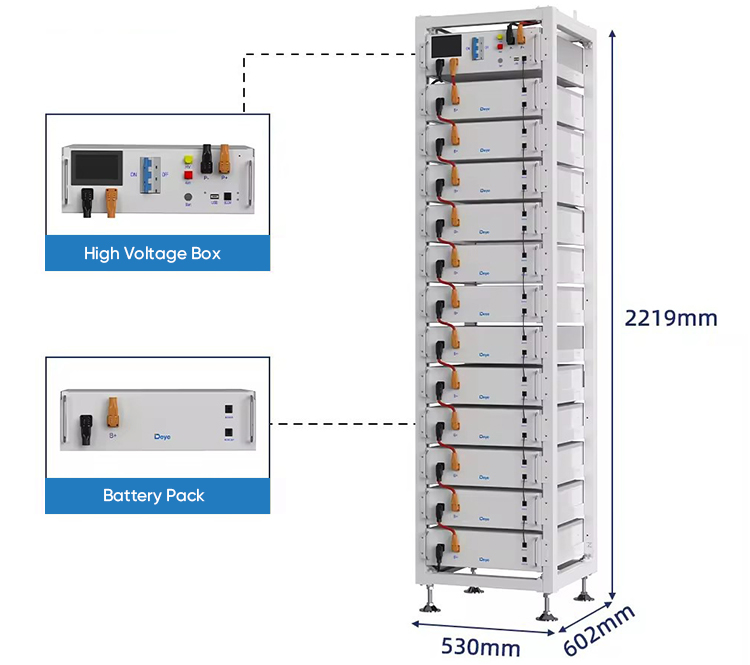

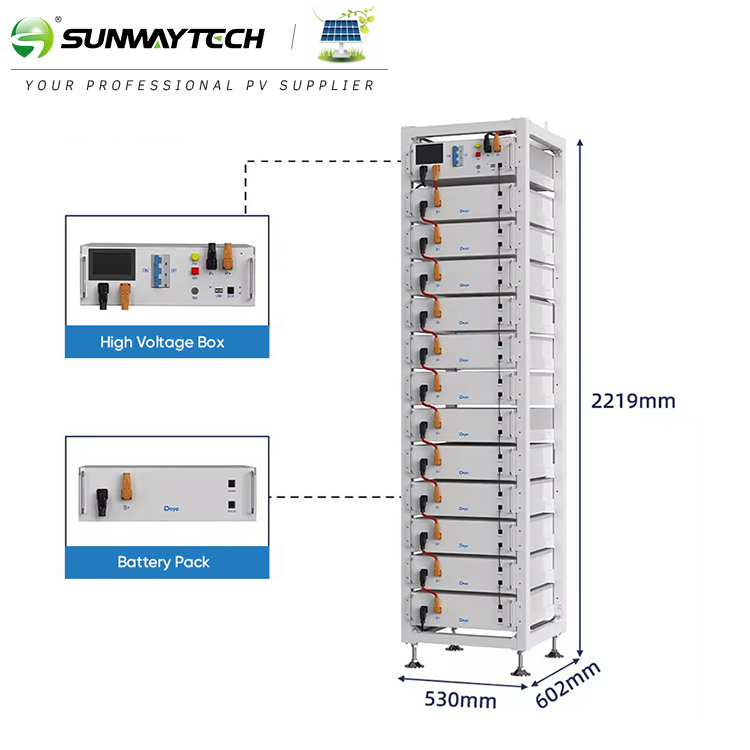

Dimension (W/D/H,mm)	530* 602 *1599
Weight Approximate (kg)	408

Battery Module Number	BOS-G40	BOS-G45	BOS-G50	BOS-G55	BOS-G60
Battery Module Qty In Series (Optional)	8	9	10	11	12
System Nominal Voltage (V)	409.6	460.8	512	563 2	614.4
System Operating Voltage (V)	332.8~467.2	374.4~525.6	416~584	457.6~642.4	499.2~700
System Energy (kwh)	40.96	46.08	51.2	56.32	61.44
System Usable Energy (kwh)	36.86	41.47	46.08	50.68	55.29
Rated DC Power	40.96	46.08	51.2	56.32	61.44
Dimension (W/D/H,mm)	530* 602 *1599	530* 602 *2187
Weight Approximate (kg)	408	594

model		BOS-GX(X=3 4 5 6,7 8 9 10 11 12)
Cell chemistry		LiFePO4
Module Energy (kwh)		5.12
Module Nominal Voltage (V)		51.2
Module Capacity (Ah)		100
Charge/Discharge Current (A)	Recommend	50
	Nominal	100
	Peak Discharge (2 mins, 25℃)	125
Working Temperature (°C)		Charge: 0~55/Discharge: -20~55
Status Indicator		Yellow: Battery High Voltage Power On Red: Battery System Alarm
Communication Port		CAN2.0/ RS485
Humidity		5%~85%RH
Altitude		≤2000m
IP Rating of Enclosure		IP20
Installation Location		Rack Mounting
Storage Temperature (°C)		0~35
Recommend Depth of Discharge		90%
Cycle Life		25±2°C,0.5C/0.5C, EOL70%≥6000
Warranty		10 years
Certification		CE/IEC62619 /VDE2510-50/UL1973/UL9540A/UN38.3
