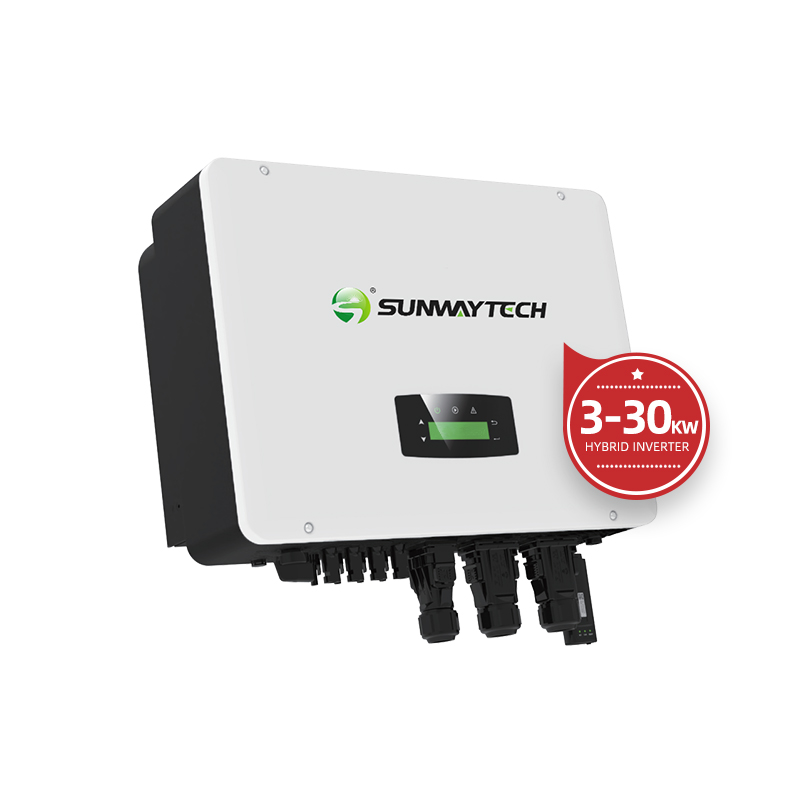

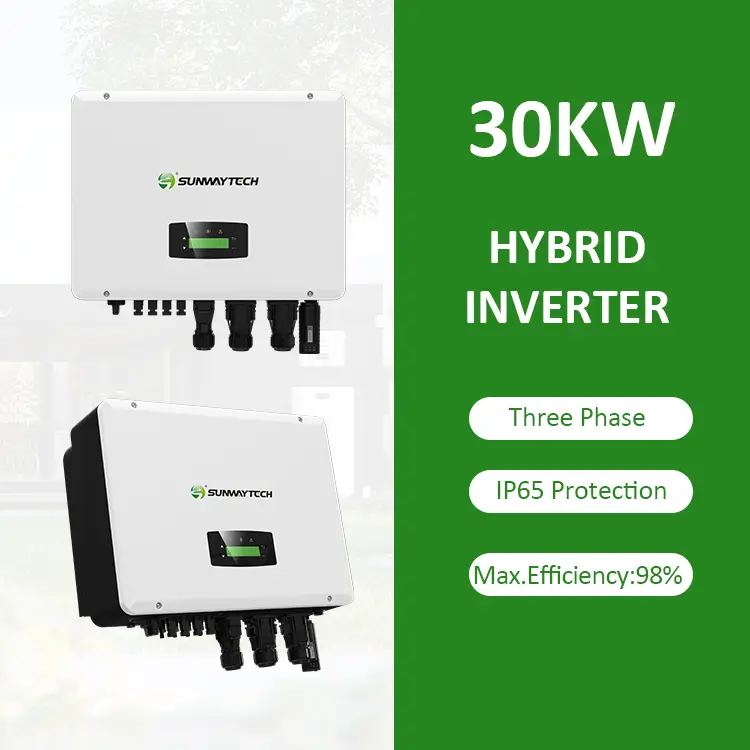

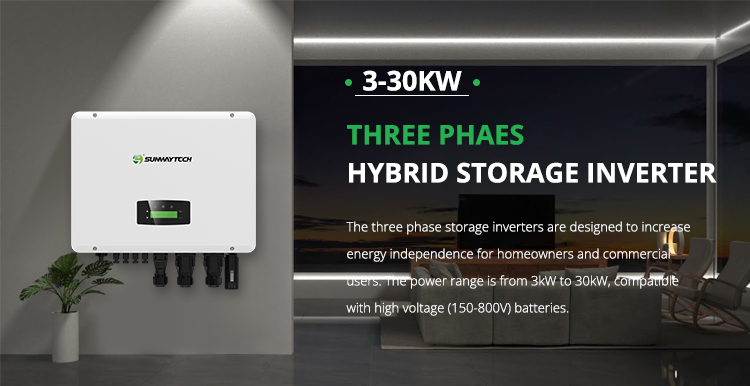

Sunway 5kw 10kw 30kw High Voltage Three Phase Hybrid Solar Inverter

Sunway 5kw 10kw 30kw High Voltage Three Phase Hybrid Solar Inverter

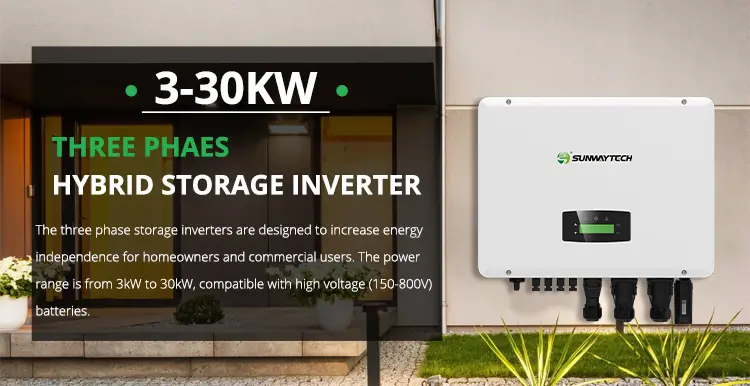

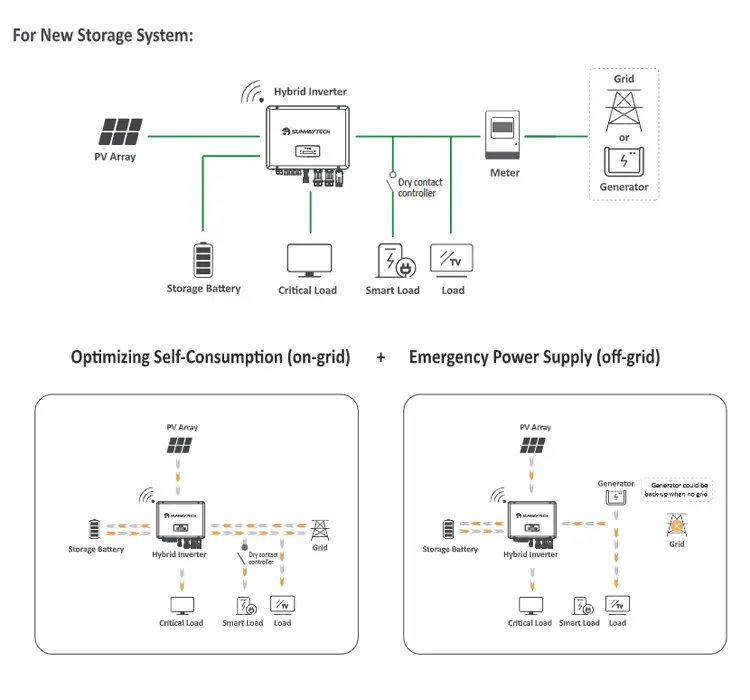

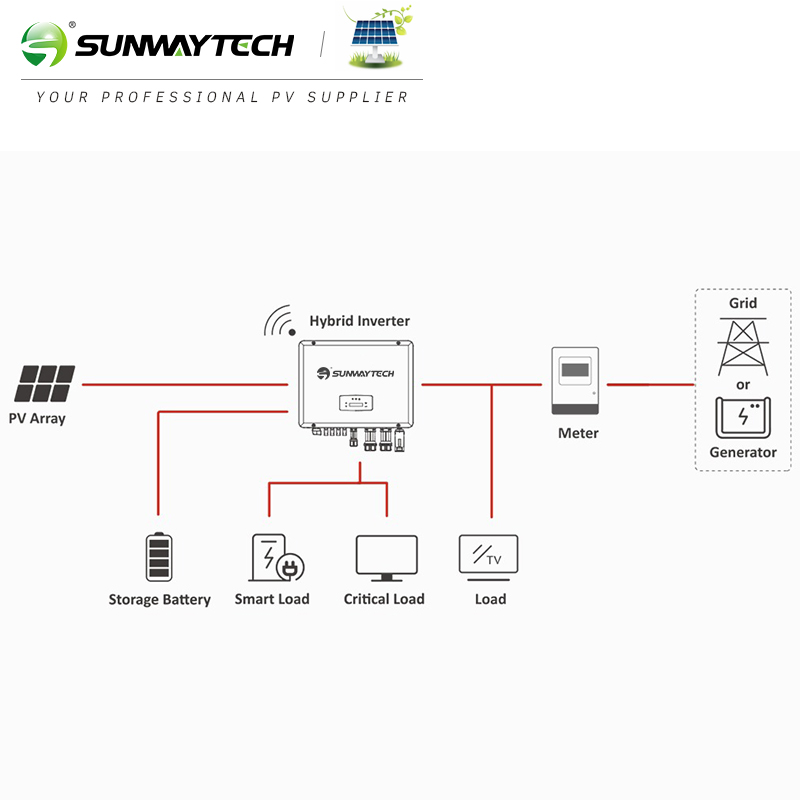

Hybrid solar inverter have function of both on grid inverter and off grid inverter supply Intelligent energy management system for home

Model Number:AF15K-TH	AF15K-TH
Output power：	3-30kw
Output Voltage:	230/400
Size:	558 x 535 x 260 mm
Weight:	29kg

The AF low voltage Series storage Inverters are designed to increase energy independence for homeowners. The power range is from 1kW to 6kW, compatible with low voltage (40-60V) batteries.

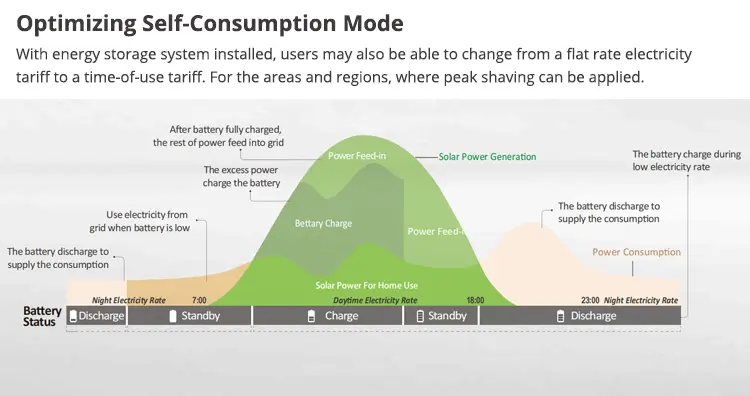

Energy management is based on time-of-use and demand charge rate structures, significantly reduce the amount of energy purchased from the public grid.

Thanks for the UPS function (switch time < 10ms), enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading.

The AF low voltage Series storage inverters integrated with Arc Fault Circuit Interrupter (AFCI) and Rapid Shutdown.

PVInput	AF3K-TH	AF4K-TH	AF5K-TH	AF6K-TH	AF8K-TH	AF10K-TH
Max.DCimput Power (kW)	5	6	7.5	9	12	15
Max. PV Voltage	1000
Ratad DC Input Voltage)	620
DC Input Voltage Range (V)	150-1000
MPPT Voltage Range (V)	150-850
FUIL MPPT Range(V)	200-850			250-850	300-850	500-850
Start-up Voltage (V)	160
Max. DC Input Current (A)	20x2
Max. Short Current(A)	30x2
No. of MPPT Tracker / Strings	22
Dimensions (W x H x D, mm)	370x497x192 mm
Weight (kg)	20.8kg
Topology	Transformerless
Cooling Concept	Natural Convection				Intelligent Fan
Relatively Humidity	0-100%
Operating Tamparature Range (°C)	-25 to 60 °C
Operating g Altitude (m)	<4000
Noise Emission (dB)	<30
Standby Consumption (W)	<5

PV In put	AF12K-TH	AF15K-TH	AF17K-TH	AF2OK-TH	AF25K-TH	AF3OK-TH
Max. DC Input Power (kW)	18	22.5	25.5	30	37.5	45
Max. PV Voltage (V)	1000
Rated DC Input Voltage (V)	620
DC Input Voltage Range (V)	150-1000
MPPT Voltage Range (V)	150-850
Full MPPT Range(V)	500-850
Start-up Voltage (V)	160
Max. DC Input Current (A)	20x2	20+32	32x2		40x2
Max. Short Current(A)	30x2	30+48	48x2		60x2
No. of MPPT Tracker / Strings	2/2	2/3	2/4		2/4
Dimensions (W x H x D, mm)	370 x 497 x 192 mm	558 x 535 x 260 mm
Weight (kg)	20.8kg	29kg			36kg
Topology	Transformerless
Cooling Concept	Intelligent Fan
Relatively Humidity	0-100%
Operating Temperature Range (°C)	-25 to 60 °C
Operating Altitude (m)	<4000
Noise Emission (dB)	<30	<40
Standby Consumption (W)	<5
