Liquid cooling Lithium Ion Baterias Container ESS Solar Energy Storage System

Liquid-cooled container-type energy storage lithium battery

Liquid cooling Lithium Ion Baterias Container ESS Solar Energy Storage System

Category Energy Storage System

Models	SWESS556KWH	SWESS2782KWH
Max PV input voltage	1500V
MPPT voltage range at nominal power	860~1250V	860~1300V
Number of DC inputs	5	24
Max PV input current	1250A	5228A

Liquid-cooled containerized energy storage is a type of energy storage system typically used to store electrical energy or other forms of energy for backup power or grid management needs. The distinctive feature of this system is the utilization of liquid cooling technology to maintain the temperature of energy storage equipment, thereby enhancing efficiency and performance. This technology combines energy storage capabilities with liquid cooling solutions to ensure the efficient operation of the storage equipment. It finds wide-ranging applications in the electricity industry and the integration of renewable energy sources,
contributing to improved reliability and sustainability of power systems.

Models	SWESS556KWH	SWESS2782KWH
PV DATA
Max PV input voltage	1500V
MPPT voltage range at nominal power	860~1250V	860~1300V
Number of DC inputs	5	24
Max PV input current	1250A	5228A
DCDC DATA
Working voltage range	500~1500V	500~1500V
Nominal power	250kw	250kw*5
Max current	344A	344A*5
BATTERY DATA
Cell type	38.4V/100Ah	38.4V/100Ah
Configuration of system	2P252S*3	252S30P
Battery capacity(BOL)	556kWh	2782kWh
Battery voltage range	806.4~1045.8V
AC DATA
AC output power	500kVA@50℃	2750kVA@45℃(113℉)/2500kVA@50℃(122℉)
Max AC output current	480A	2886A
Nominal AC voltage	3/PE,600V	550V
AC voltage range	480~690V	484~605V
Nominal grid frequence/Grid frequence range	60Hz/55~65Hz
Power factor at nominal power/Adjustable power factor	>0.99/0.8leading~0.8lagging
Feed-in phases/connection phases	3/3
GENERAL DATA
Dimension(WHD)	605828962438mm/238.5"114.0"96.0"	1219228962438mm/480.0"114.0"96.0"
Weight(with/without battery)	11.0T/7.0T 24250lbs/15432lbs	37T/16.5T 81571lbs/36376lbs
Degree of protection	IP54/NEMA 3R
Operating temperature range	-30℃~50℃/-22℉~122℉
Relative humidity	0~95%(non-condensing)
Max working altitude	2000m/6562ft
Cooling concept of battery chamber	Heating,Ventilation and air conditioning
Fire suppression system of battery unit	FM-200 extinguishment system
Communication interfaces	RS485,Ethernet
Communication protocols	Modbus RTU,Modus TCP
Compliance	CE
Dimension(WHD)of PV inverter	/	299128962438mm/117.8"114.0"96.0"
Weight of PV inverter	/	6.9T/15211.9lbs

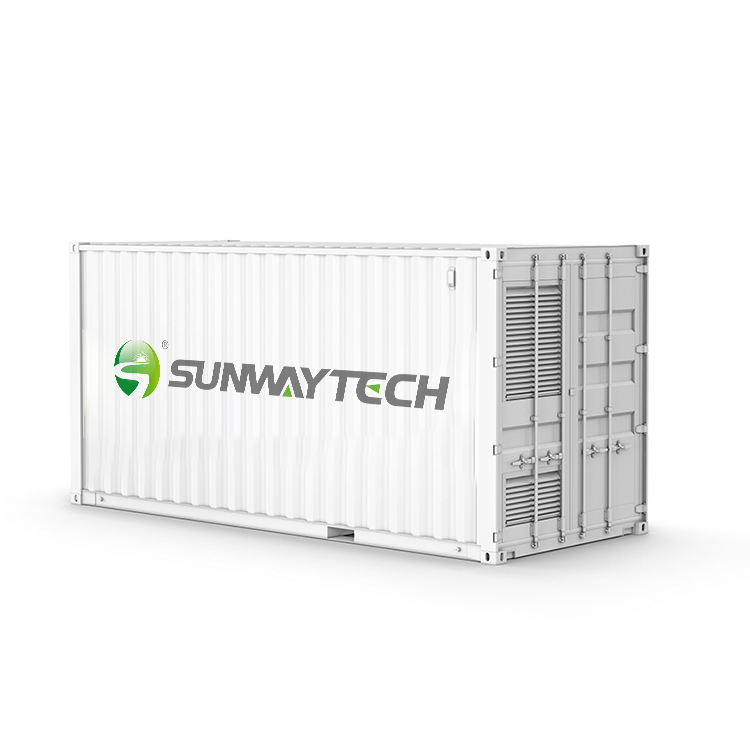

CONTAINER ENERGY STORAGE SYSTEM

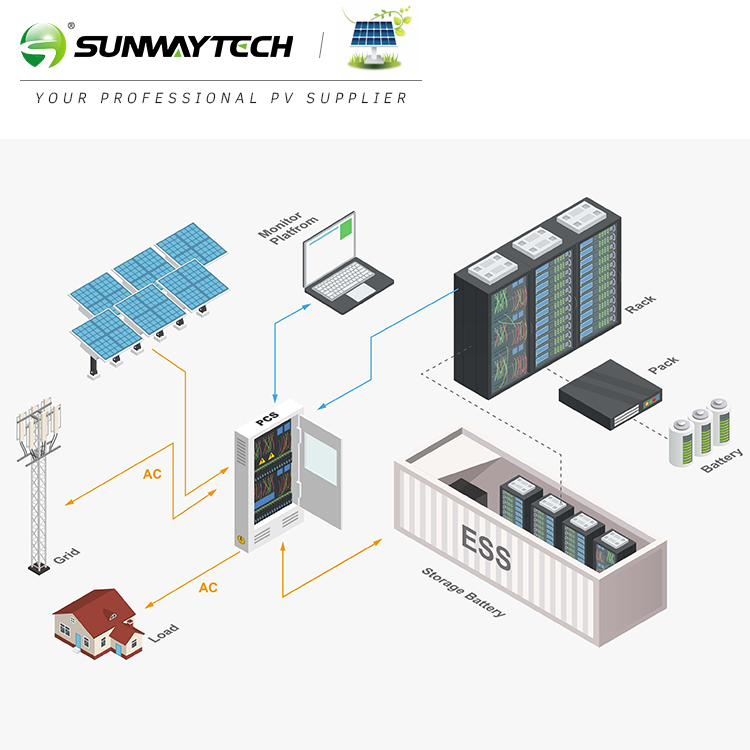

The container energy storage system includes: an energy storage battery system, PCSbooster system, fire fighting system, monitoring system, etc. lt is widely used in seen such as power security, backup power, peak shaving, and valley filling.

LOW COSTS

* Highly integrated ESS for easy transportation and O&M

* Al pre-assembled, no battery module handling on site

* 8-hour installation to the commission, drop on a pad, and make electrical connections

SAFE AND RELIABLE

* DC electric circuit safety management includes fast-breaking and anti-arc protection

* Multi-level battery protection layers formed by discreet standalone systems offer impeccable safety

EFFICIENT AND FLEXIBLE

* Intelligent liquid cooling ensures higher efficiency and longer battery cycle life * Modular design supports parallel connection and easy system expansion *IP55 outdoor cabinet and optional C5 anti-corrosion

SMART AND ROBUST

* Fast state monitoring and faults record enables alarm and faults location * Integrated battery performance monitoring and log

Grid Management and Peak Shaving: This type of energy storage system can store electricity and release it when needed to meet peak demand or for grid management purposes. This helps ensure a stable power supply, reduces electricity costs during peak periods, and improves grid stability.

Emergency Backup Power: Liquid-cooled containerized energy storage systems can serve as emergency backup power sources, providing electricity during power outages or emergency situations to ensure the continuous operation of critical facilities and services such as hospitals, communication stations, and emergency lighting.

Industrial Applications: They can be used in industrial settings for peak shaving, improving power quality, and stabilizing power supply. Some industrial processes may have high electricity demands, and energy storage systems can help balance power requirements and reduce peak demand charges.

Participation in Electricity Markets: In some regions, liquid-cooled containerized energy storage systems can participate in
electricity markets. They can be operated in electricity markets and used for energy trading and market operations to generate economic returns.

Electric Transportation: Liquid-cooled containerized energy storage systems can also be used in electric transportation, such as electric bus charging stations or electric vehicle charging stations. They help manage electricity demand and ensure the efficient operation of charging stations.

Certification
