Low Voltage Deye SE-G5.1 Pro-B 51.2V 100Ah Lifepo4 Battery

Low Voltage Deye SE-G5.1 Pro-B 51.2V 100Ah Lifepo4 Battery

Category Racked Lithium Battery

Model Number	SE-G5.1 Pro-B
Dimension	440133540mm
Weight(Kg)	45KG
Nominal Voltage (V)	51.2V
Nominal Capaaity (AH)	100Ah/ 5.12kwh

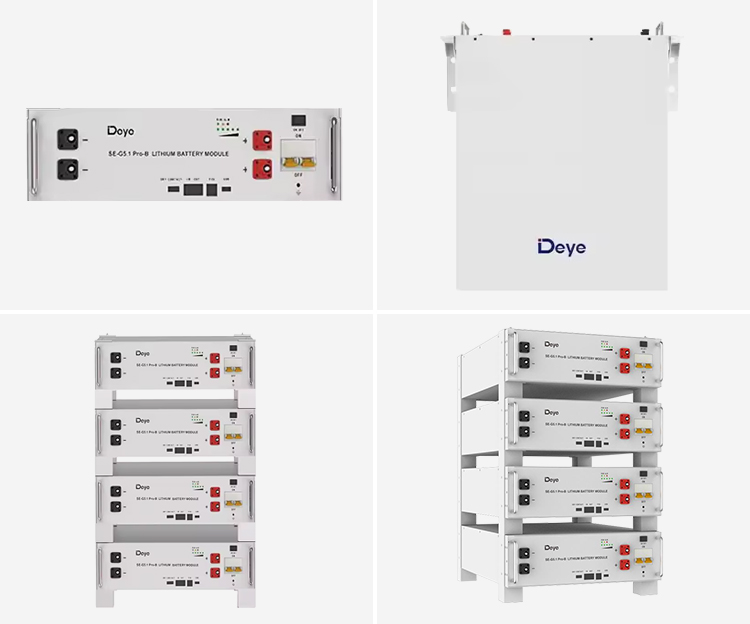

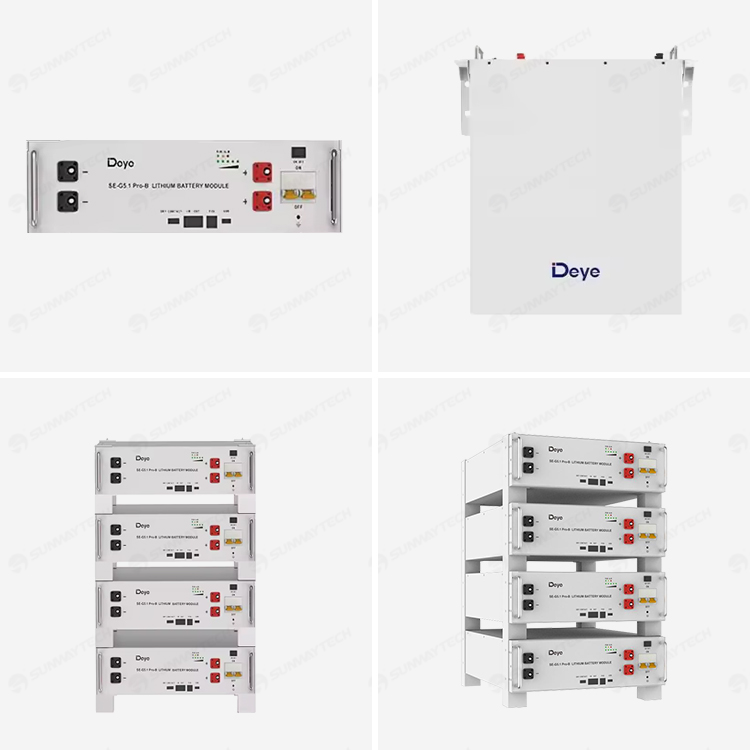

Deye SE-G5.1 Pro-B LiFePO4 Battery

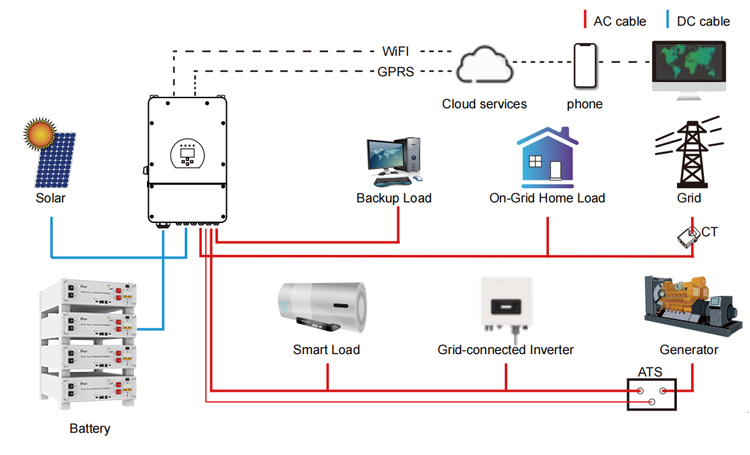

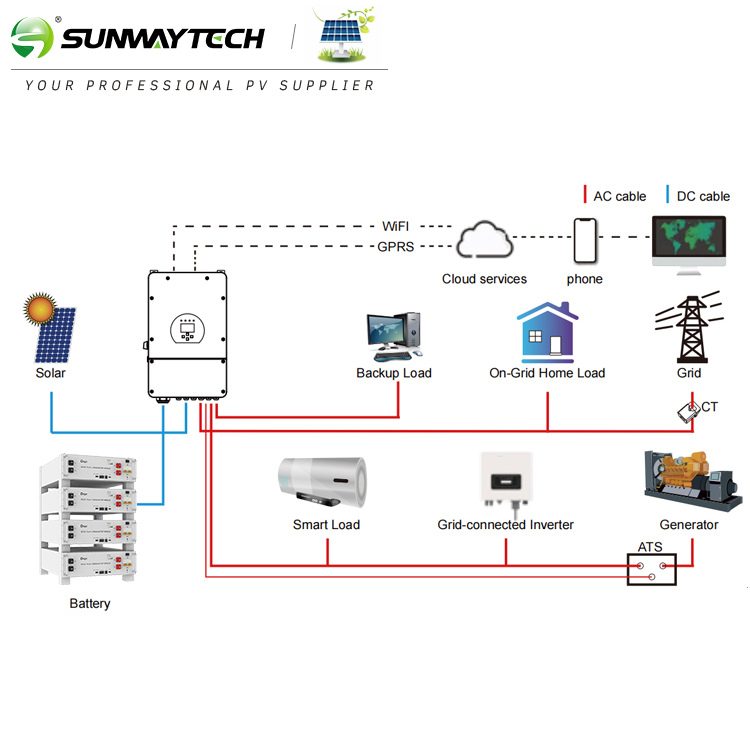

Deye SE-G5.1 Pro-B battery is a high-performance energy solution designed for renewable energy applications, including solar power systems and backup energy storage. With its robust design, it ensures reliable power supply in residential and commercial settings, making it ideal for off-grid living, emergency power backup, and peak shaving. The battery boasts a lifespan of up to 10 years, providing long-lasting performance and peace of mind. Its advanced technology guarantees efficient energy management,
allowing users to maximize their energy savings while contributing to a sustainable future. Choose the Deye SE-G5.1 Pro-B for an eco-friendly energy solution.

Model	SE-G5.1 Pro-B
Main Parameter
Battery Chemistry	LiFePO4
capacity (Ah)	100

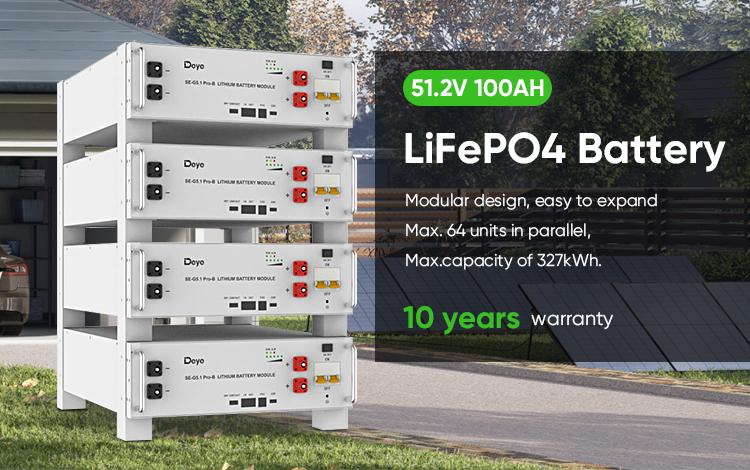

Scalability	Max. 64 pcs pack (327kWh)in parallel (max. 32 pcs no external setup)
Nominal Voltage (V)	51.2
Operating Voltage(V)	43.2-57.6
Nominal Energy (kWh)	5.12
Usable Energy (kWh)	4.6
Charge/Discharge Current (A)	Recommend
	Max.
	Peak(2mins,25°C)
Other Parameter
Recommend Depth of Discharge	90%

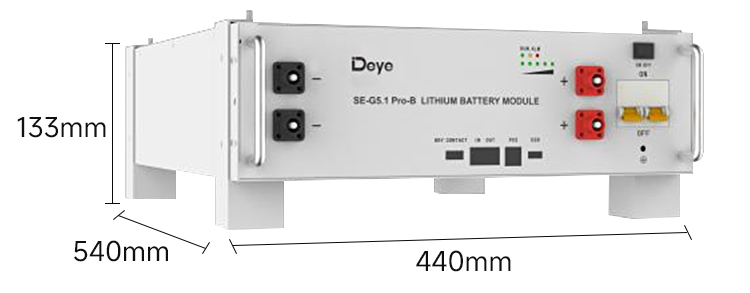

Dimension (W/H/D, mm)	440133540
Weight Approximate(kg)	45
Master LED Indicator	5LED(SOC:20%~S0C100%),3LED (working, alarming, protecting)
IP Rating of Enclosure	IP20
Operating Temperature	Charge:0-55'c(Optional heating:-20°C~55°C)；Discharge:-20°C~55°C
Storage Temperature	0-35℃
Humidity	5%~95%
Altitude	≤2000m

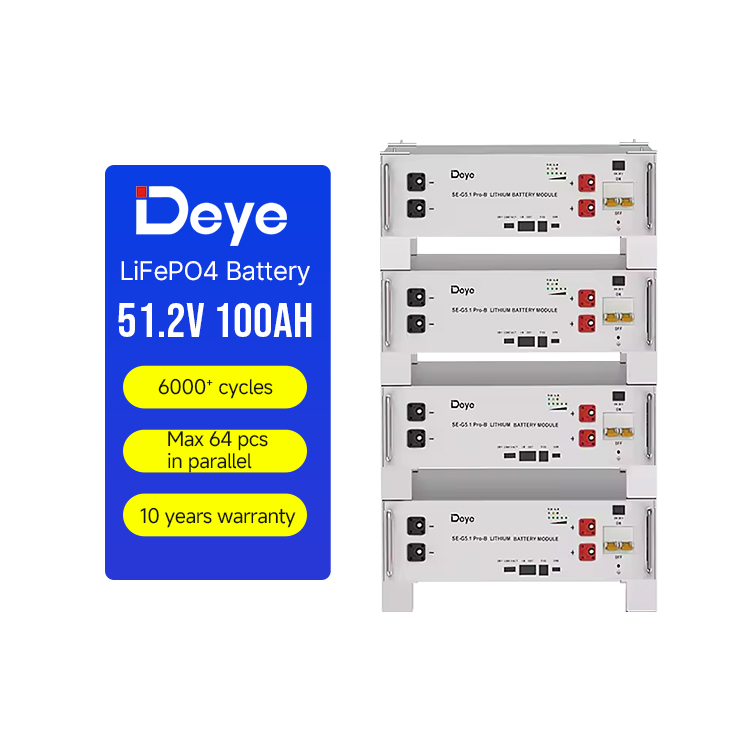

Cycle Life	≥6000(25C+2'℃,0.5C10.5C,90%DOD,70%EOL)
Installation	Wall-Mounted, Floor-Mounted. Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm)
Communication Port	CAN2.0,RS485
Warranty Period	10 years
Energy Throughput	16MWh@70%EOL
Certification	UN38.3.IEC62619,CEUK, VDE2510-50,CEI0-21.FCC,UL1973,UL9540A
