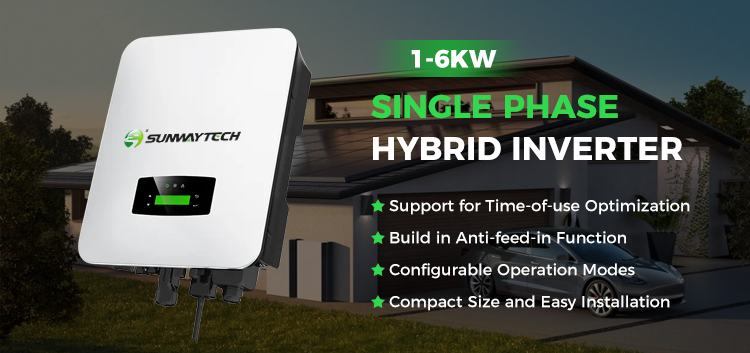

Sunway 220v 1kw 3kw 6kw Low Voltage Single Phase Hybrid Solar Inverter

Sunway 220v 1kw 3kw 6kw Low Voltage Single Phase Hybrid Solar Inverter

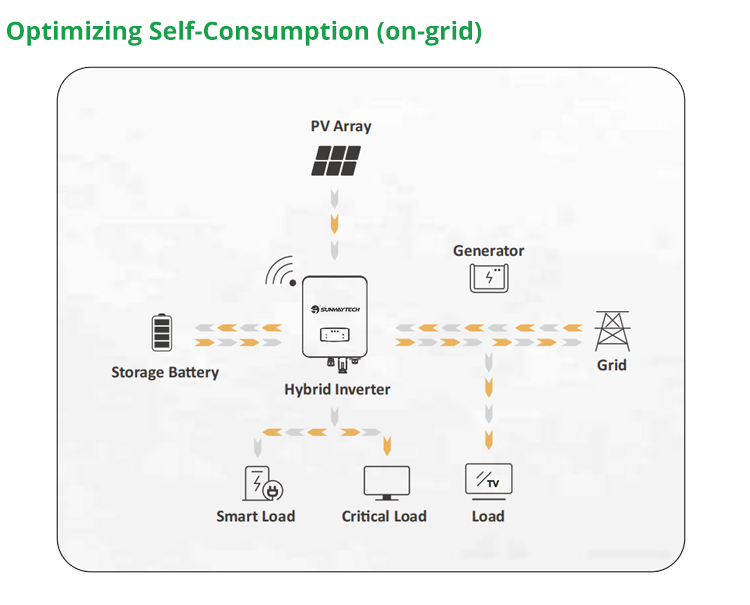

Hybrid solar inverter have function of both on grid inverter and off grid inverter supply Intelligent energy management system for home

Model Number:	AF6K-SL
Output power：	1-6kw
Output Voltage:	220V
Size:	370 x 513 x 192mm
Weight:	17KG

The AF low voltage Series storage Inverters are designed to increase energy independence for homeowners. The power range is from 1kW to 6kW, compatible with low voltage (40-60V) batteries.

Energy management is based on time-of-use and demand charge rate structures, significantly reduce the amount of energy purchased from the public grid.

Thanks for the UPS function (switch time < 10ms), enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading.

The AF low voltage Series storage inverters integrated with Arc Fault Circuit Interrupter (AFCI) and Rapid Shutdown.

PV Input	AF1K-SL-1	AF1.5K-SL-1	AF2K-SL-1	AF2.5K-SL-1	AF3K-SL-1	AF3.6K-SL-1
Max. Input Power(kW)	1.5	2.3	3.0	3.8	4.5	5.4
Max. PV Votage (V)	550
MPPT Range (V)	80-550
Full MPPT Range (V)	80 - 500	90 - 500	120 - 500	150 - 500	170 - 500	210 - 500
Normal Voltage (V)	360
Startup Voltage (V)	100
Max. Input Current (A)	18.5 x 1
Max. Short Current (A)	26 x 1
Nominal AC Voltage L-N (V)	220/230
Nominal AC Frequency (Hz)	50/60
Voltage THD (%)	< 3
Dimensions (W x H x D, mm)	370 x 513 x 192
Weight (kg)	17
Topology	Transformerless
Noise Emission (dB)	<25
Standby Consumption (W)	<10
Mounting	Wall Bracket

PV Input	AF3K-SL	AF3.6K-SL	AF4K-SL	AF4.6K-SL	AF5K-SL	AF5.5K-SL	AF6K-SL
Max. Input Power(kW)	4.5	5.4	6.0	6.9	7.5	8.3	9.0
Max. PV Votage (V)	550
MPPT Range (V)	80-500
Full MPPT Range (V)	90-500	110-500	120-500	130 - 500	150 - 500	160 - 500	170 - 500
Normal Voltage (V)	360
Startup Voltage (V)	100
Max. Input Current (A)	18.5 x 2
Max. Short Current (A)	26 x 2
Dimensions (W x H x D, mm)	370 x 513 x 192
Weight (kg)	17
Topology	Transformerless
Noise Emission (dB)	< 25
Standby Consumption (W)	< 10
Mounting	Wall Bracket
