Battery Capacity
|
537.6W
|
|
Battery Type
|
LiFePO4
|
|
AC Output Power
|
700W
|
|
AC Output Voltage
|
100- 230V/50-60Hz
|
|
DC Input
|
5-24.5V/2-5A(Max)
|
|
Model Type
|
SW700W-P
|
|
Peak Power(Pmax)
|
110
|
|
Maximum Power Voltage(Vmp)
|
10.06V
|
|
Maximum Power Current(lmp)
|
10.94A
|
|
Open Circuit Voltage(Voc)
|
11.76V
|
|
Short Circuit Current(lsc)
|
11.76A
|
|
Module Efficiency(%)
|
17.83
|
|
Maximum System Voltage(V)
|
1000
|
|
Maximum Series Fuse Rating(A)
|
10
|
|
Power Tolerance
|
0~+3%
|
|
Pmax Temperature Cofficients(W/℃)
|
-0.350%
|
|
Voc Temperature Coefficients(V/℃)
|
-0.270%
|
|
Isc Temperature Cofficients(A/℃)
|
+0.048%
|
|
NOCT Nominal Operating Cell Temperature(℃)
|
45+2
|
|
Operating and Storage Temperatre(℃)
|
-40~+85
|
|
Cell Type
|
166*83Mono
|
|
No. of Cells
|
36(4x9)
|
|
Dimensions
|
730*845*2.5mm
|
|
Weight
|
2.3kg
|
|
Junction box
|
IP67
|
|
Output cables
|
4m㎡- 90cm cables + mc4
|
|
Battery Capacity
|
537.6W
|
|
Battery Type
|
LiFePO4
|
|
AC Output Power
|
700W
|
|
AC Output Voltage
|
100- 230V/50-60Hz
|
|
DC Input
|
5-24.5V/2-5A(Max)
|
|
Type-C1 Output
|
PD100W
|
|
Type-C2 Output
|
PD27W
|
|
USB A1&2 Output
|
22.5W
|
|
On-board Charging
|
12-13V10A
|
|
LED Lights
|
2.5W
|
|
Cycle Life
|
2000 Times
|
|
Charging Temperature
|
0-45℃
|
|
Discharge Temperature
|
-10-45℃
|
|
Weight
|
7.8kg
|
|

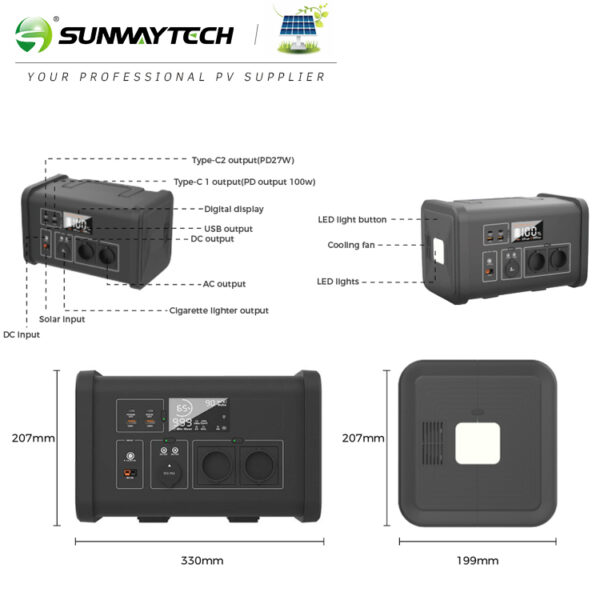

Size
|
330*199*207mm
|
