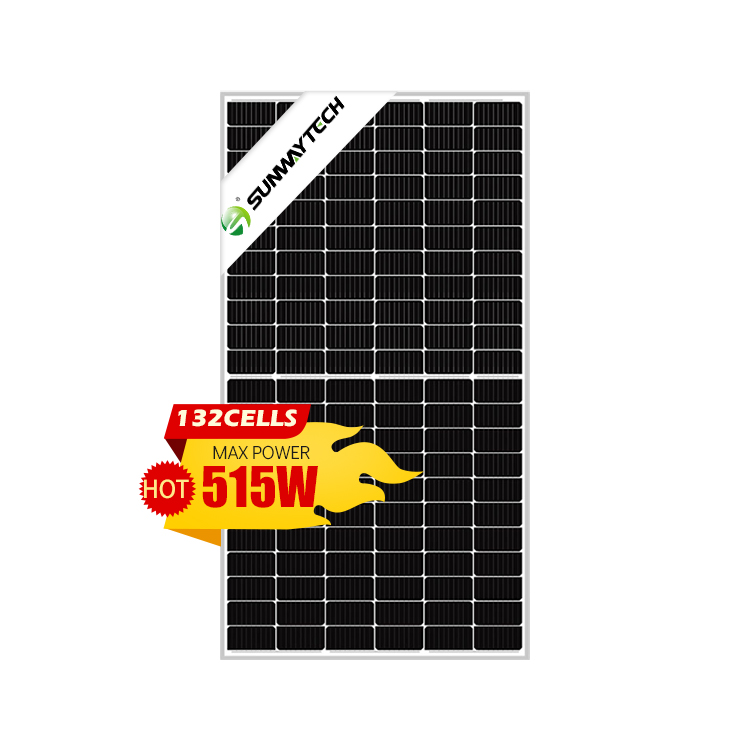

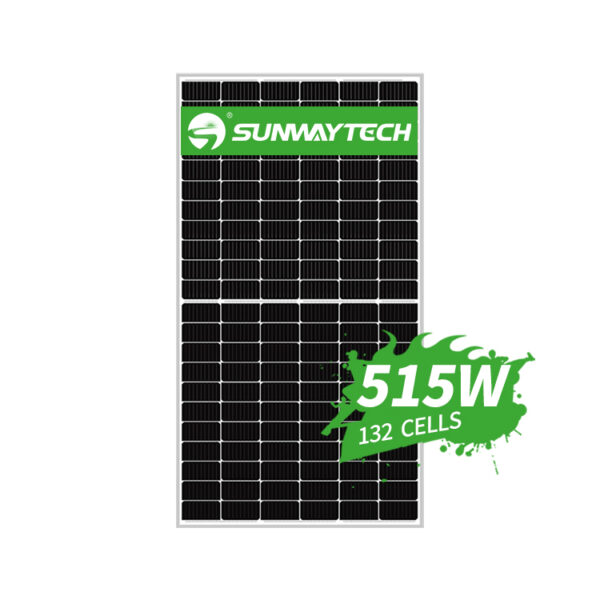

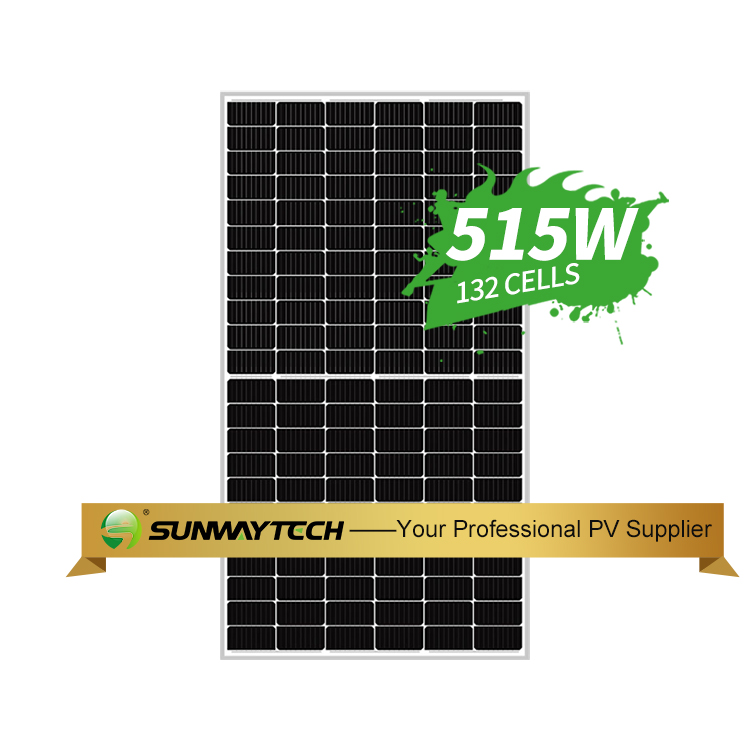

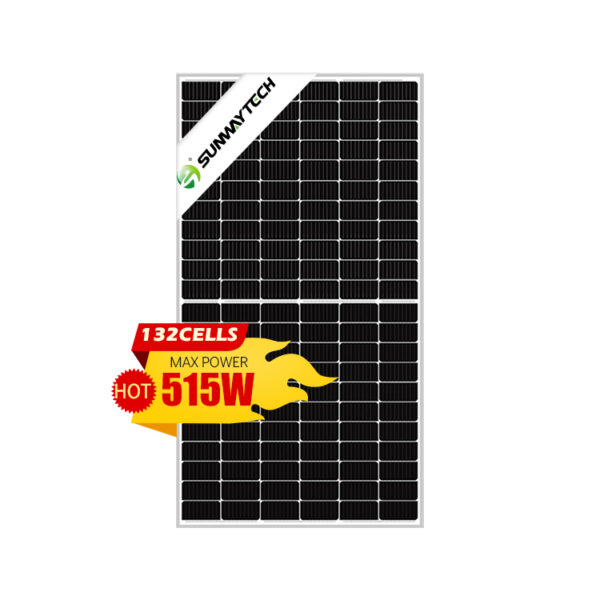

Half Cell Solar Panel:
Sunway 36v 450W 480w low price solar panel monocrystalline for household
| Model Number: | SW515M-132 |
| Power Range： | 475W-515W |
| Dimensions: | 2094*1134*35mm |
| Weight: | 24.5kg |
| Certificate: | CE/TUV |
|

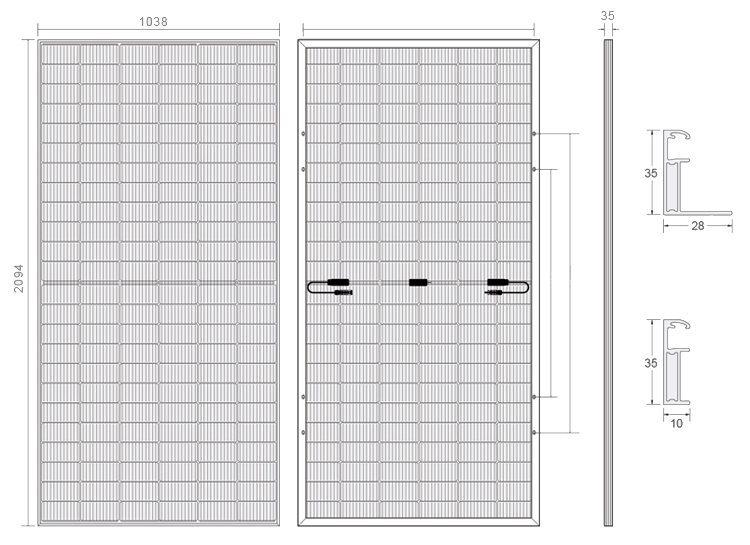

MECHNICAL SPECIFICATION
|
|
|
Module Size
|
2094*1038*35mm
|
|
Weight
|
24.5kgs
|
|
Cell Type
|
Half Cut Perc
|
|
Junction Box
|
IP67/IP68, 3Diodes
|
|
Cable
|
300m 4mm2 cable or customized
|
|
Connector
|
Mc4 Connector
|
|
ELECTRICAL CHARACTERISTICS(STC)
|
|||
|
Module
|
SW470M-144 ~ SW480M-144
|
||
|
Maximum Power (Pmax)
|
470W
|
475W
|
480W
|
|
Maximum Power Voltage (Vmp)
|
42.20V
|
42.50V
|
42.80V
|
|
Maximum Power Current (Imp)
|
11.22A
|
11.28A
|
11.34A
|
|
Open-circuit Voltage (Voc)
|
50.70V
|
51.00V
|
51.30V
|
|
Short-circuit Current (Isc)
|
11.66A
|
11.72A
|
11.78A
|
|
Module Efficiency (%)
|
21.50%
|
21.70%
|
21.90%
|
|
Power Tolerance
|
0~+5W
|
||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
||
|
Electrical Characteristics(STC)
|
||||
|
Module
|
SW450M-144 ~ SW465M-144
|
|||
|
Maximum Power (Pmax)
|
450W
|
455W
|
460W
|
465W
|
|
Maximum Power Voltage (Vmp)
|
41.00V
|
41.30V
|
41.60V
|
41.90V
|
|
Maximum Power Current (Imp)
|
10.98A
|
11.04A
|
11.10A
|
11.16A
|
|
Open-circuit Voltage (Voc)
|
49.50V
|
49.80V
|
50.10V
|
50.40V
|
|
Short-circuit Current (Isc)
|
11.42A
|
11.48A
|
11.54A
|
11.60A
|
|
Module Efficiency (%)
|
20.70%
|
20.90%
|
21.10%
|
21.30%
|
|
Power Tolerance
|
0~+5W
|
|||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
|||
|
PACKAGE CONFIGURATION
|
||||
|
Container
|
310W-340W
|
360W-410W
|
450W-480W
|
500W-660W
|
|
Pallet
|
35pcs
|
30pcs
|
31pcs
|
31pcs
|
|
40GP
|
924pcs
|
840pcs
|
726pcs
|
620pcs
|
