MECHANICAL DATA
|
|
|
Solar cells
|
n-type HJT
|
|
Cell configuration
|
132cells(6×11+6×11)
|
|

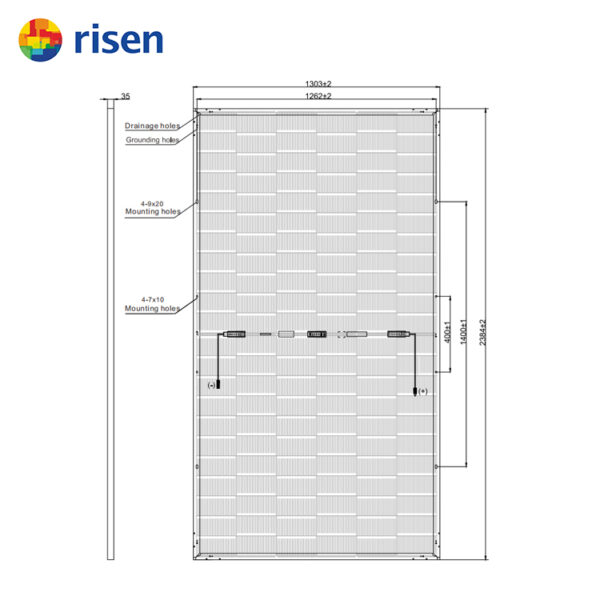

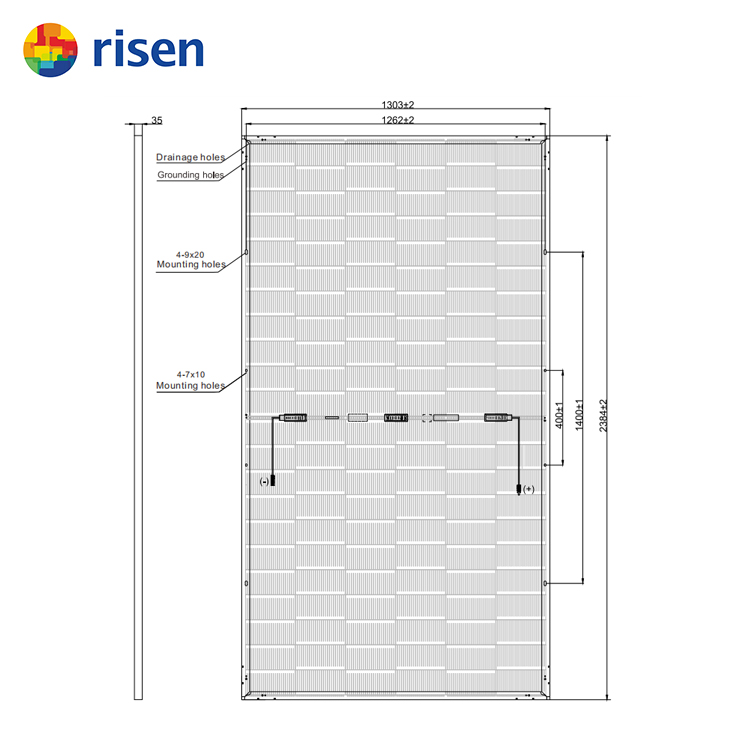

Module dimensions
|
2384X1303×35mm
|
|
weight
|
40.5kg
|
|
Superstrate
|
High Transmission,AR Coated Heat Strengthened Glass
|
|
Substrate
|
Heat Strengthened Glass
|
|
Frame
|
High strength alloy steel
|
|
J-Box
|
Potted, IP68,1500VDC, 3 Schottky by pass diodes
|
|
Cables
|
4.0mm2,Positive(+)350mm, Negative(-)230mm(Connector Included), or customized length
|
|
Connector
|
Risen TwinselPV-SY02, IP68
|

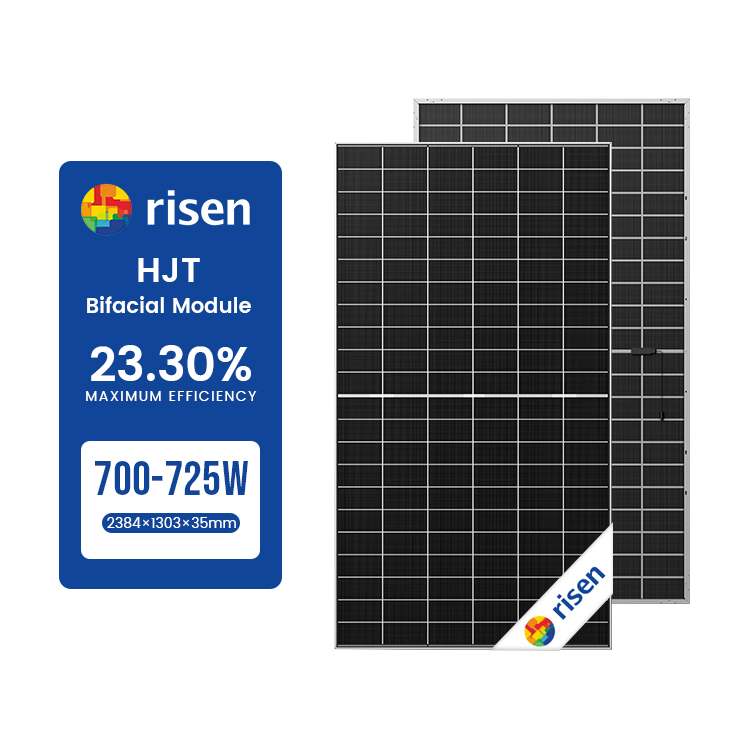

Advantages of RSM132-8-700-725BHDG
|
ELECTRICAL DATA (STC)
|
||||||
|
Model Number
|
RSM132-8-700BHDG
|
RSM132-8-705BHDG
|
RSM132-8-710BHDG
|
RSM132-8-715BHDG
|
RSM132-8-720BHDG
|
RSM132-8-725BHDG
|
|
Rated Power in Watts-Pmax(Wp)
|
700
|
705
|
710
|
715
|
720
|
725
|
|
Open Circuit Voltage-Voc(V)
|
49 .83
|
49 .92
|
50.01
|
50.09
|
50.18
|
50.26
|
|
Short Circuit Current-Isc(A)
|
17 .82
|
17 .91
|
18.00
|
18.10
|
18.19
|
18.29
|
|
Maximum Power Voltage-Vmpp(V)
|
41.78
|
41.86
|
41.93
|
42.00
|
42.08
|
42.14
|
|
Maximum Power Current-Impp(A)
|
16.77
|
16.86
|
16.95
|
17.05
|
17.13
|
17.23
|
|
Module Efficiency (%)
|
22.5
|
22.7
|
22.9
|
23.0
|
23.2
|
23.3
|
