Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.

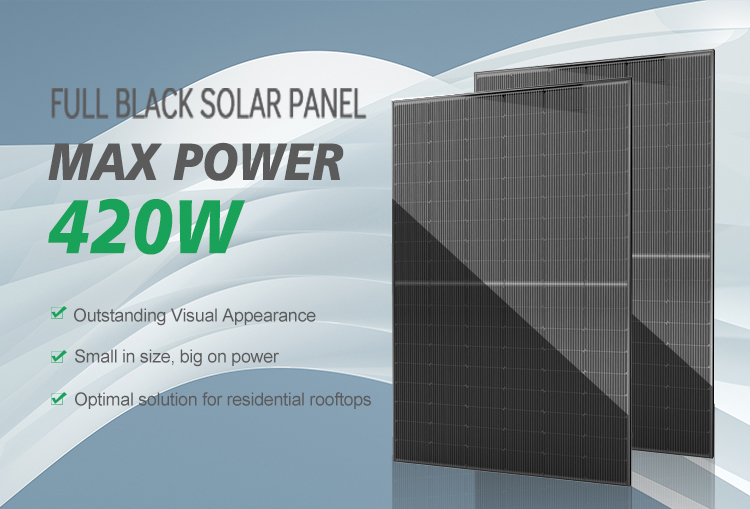

Sunway Monocrystalline Solar Panels All Black 425W 420W 410W 405W Eu Solar Panel From China
| Model Number: | SW420M-108 |
| Power Range： | 420W |
| Dimensions: | 1762*1134*30mm |
| Weight: | 21.8kg |
| Certificate: | CE/TUV |
|
Electrical Parameters
|
|||||
|
Module
|
SW400M-108 ~ SW420M-108
|
||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
||||
|
Maximum Power Pmax (W)
|
400
|
405
|
410
|
415
|
420
|
|
Maximum Power Voltage (Vmp/V)
|
31.00
|
31.15
|
31.30
|
31.45
|
31.60
|
|
Maximum Power Current (Imp/A)
|
12.91
|
13.01
|
13.10
|
13.20
|
13.30
|
|
Open Circuit Voltage (Voc/V)
|
36.96
|
37.11
|
37.26
|
37.41
|
37.56
|
|
Short Circuit Current (Isc/A)
|
13.60
|
13.70
|
13.79
|
13.89
|
13.98
|
|
Module Efficiency (%)
|
20.48
|
20.74
|
21.00
|
21.25
|
21.51
|
|
Power Tolerance (W)
|
0 ~ +5W
|
||||
|
Temperature Coefficient of Isc (αIsc)
|
+0.048%/℃
|
||||
|
Temperature Coefficient of Voc (βVoc)
|
-0.27%/℃
|
||||
|
Temperature Coefficient of Pmax (γPmp)
|
-0.34%/℃
|
||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5
|
||||
 |
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability, First of 52 steps strict quality control and inspection process. |
 |

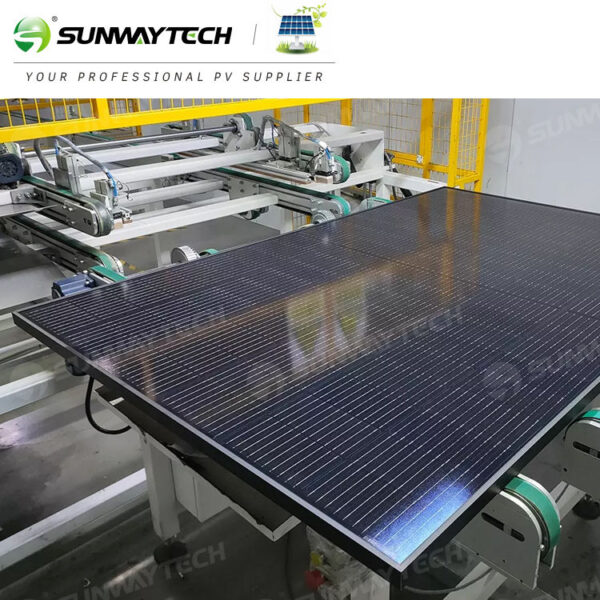

100% Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance, Intelligent alarm and stop mechanism in case of any deviation or errors. |
 |
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel. |
