| Model Number: | SK-10000P-48L |
| Output power： | 10KW |
| Output Voltage: | 208/220/230/240Vac±5% |
| Size(mm): | 805*530*200mm |
| Weight(KG)： | 20.9KG |

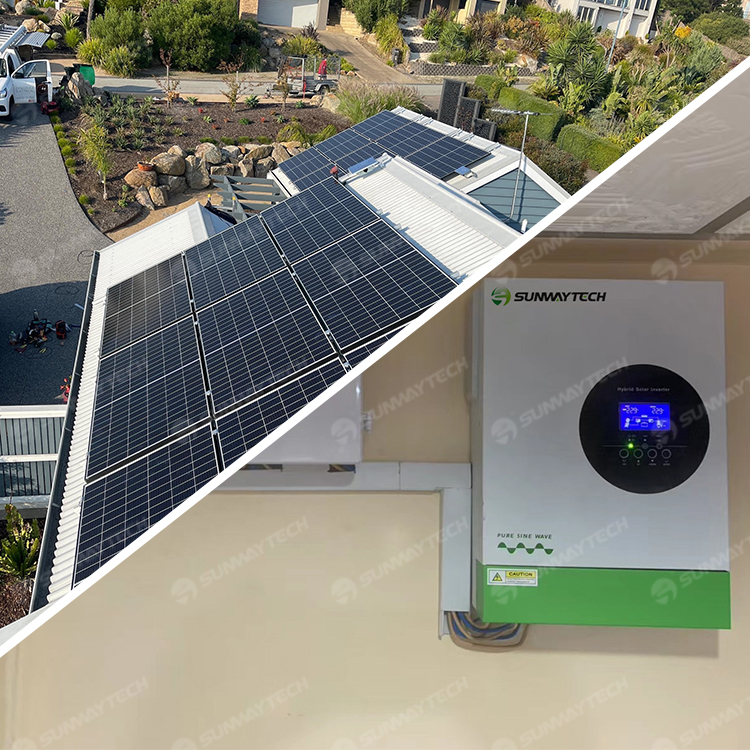

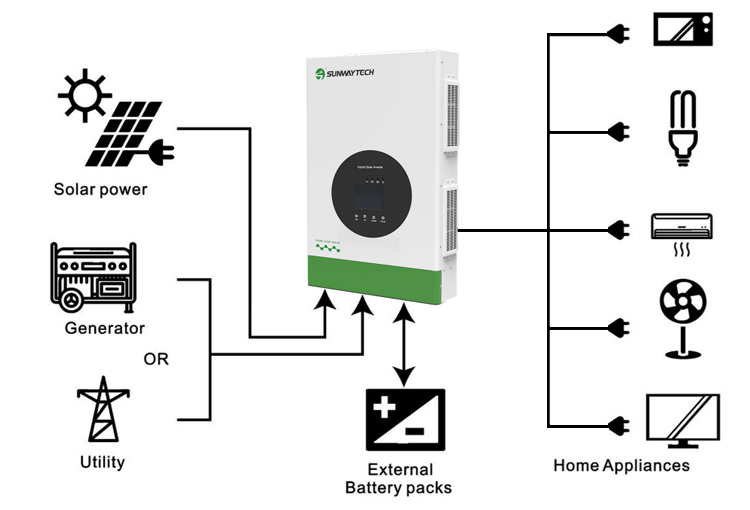

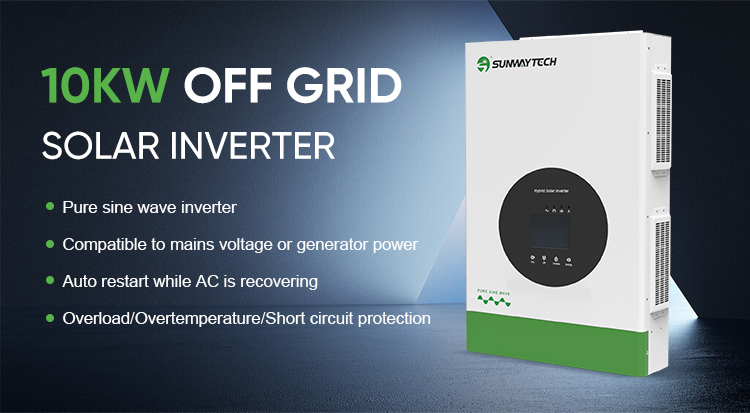

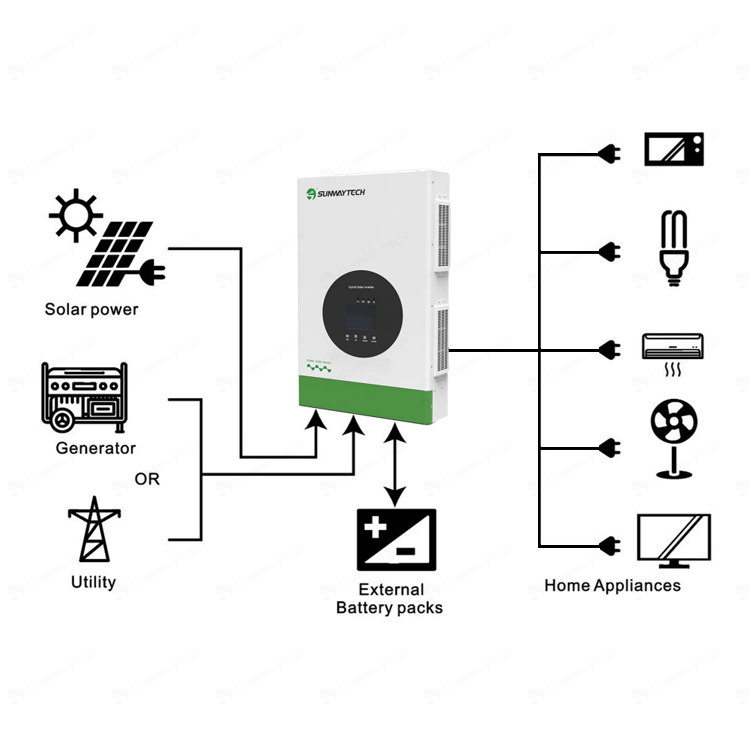

Sunway 10KW Off-Grid Solar Inverter is specifically designed for use in energy storage systems. It provides a pure sine wave output, featuring multiple communication options such as WiFi, USB, and CAN (RS485) ports, this inverter allows for easy monitoring and management of your energy storage setup. Additionally, it includes a cold start function, enabling operation without battery power when necessary. Ideal for residential energy storage applications, the Sunway 10KW inverter helps maximize solar energy utilization while providing a stable and reliable power supply.
|
Model
|
SK-10000P-48L
|
|
Capacity
|
10kVA/10kW
|
|

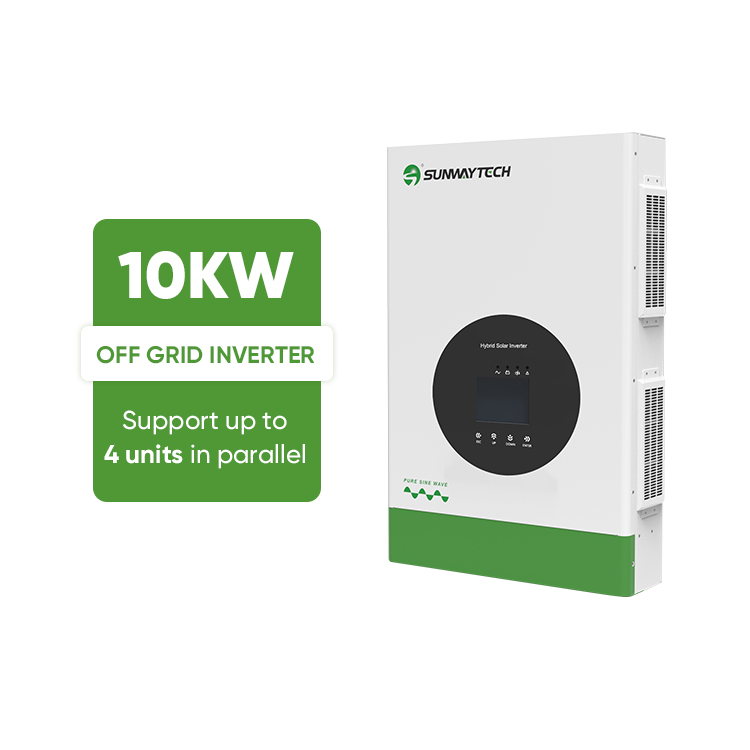

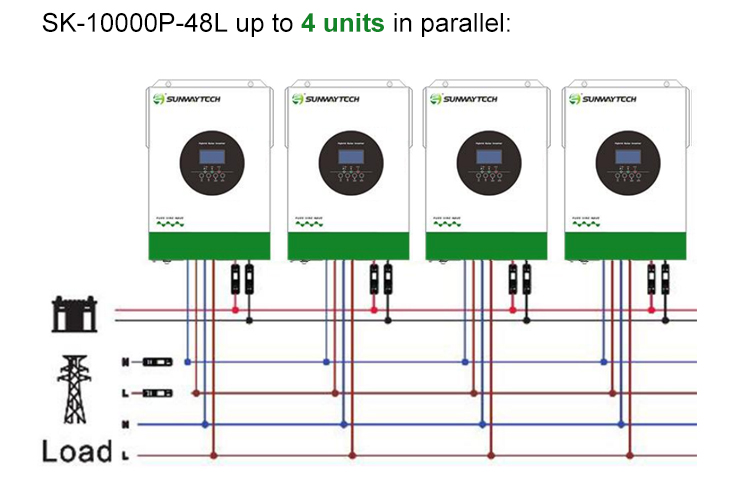

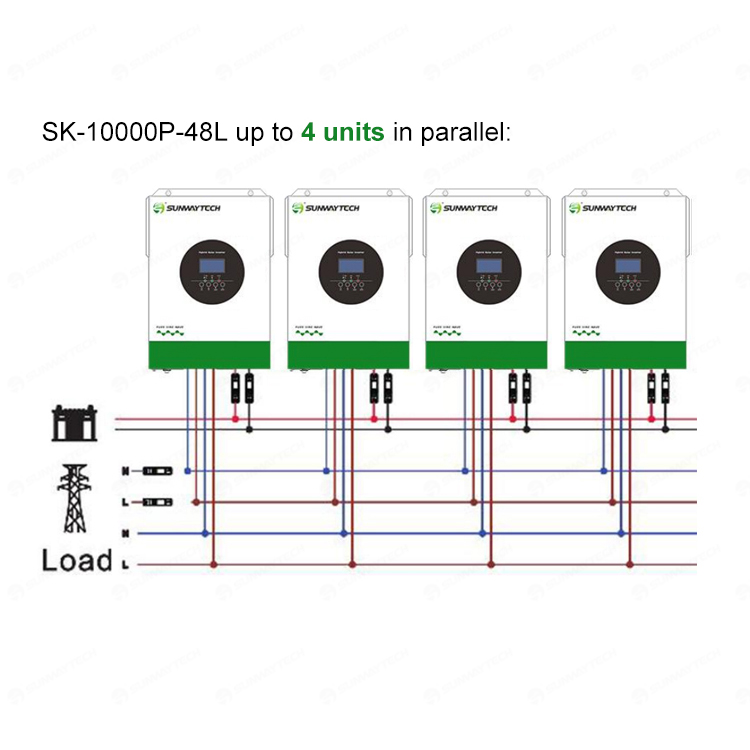

Parallel Capability
|
Up to 4 units
|
|
Input
|
|
|
Input Sources
|
L+N+PE
|
|
Rated Input Voltage
|
208/220/230/240Vac
|
|
Voltage Range
|
90~280Vac ± 3V(APP Mode),170~264Vac ± 3V(UPS Mode)
|
|
Frequency
|
50Hz/60Hz(Auto Adaptive)
|
|
Output
|
|
|
Output Voltage
|
208/220/230/240Vac±5%
|
|
Output Frequency
|
Line Mode:50Hz:(43.5~56.5)Hz(UPSMode),(40~70)Hz(APPMode)
60Hz:(53.5~66.5)Hz(UPSMode),(40~70)Hz(APPMode)，Battery Mode; 50/60Hz±0.1%
|
|
Wave Form
|
Pure sine wave
|
|
Transfer Time(Adjustable)
|
20ms(Typical)
|
|
Peak Power
|
20kVA
|
|
Overload Ability
|
Battery Mode:1min@102%~110%Load 10s@110%~130%Load
3s@130%~150%Load 200ms@>150%Load
|
|
Peak Efficiency(Battery Mode)
|
>94%
|
|
Battery
|
|
|
Battery Voltage
|
48Vdc
|
|
Constant Charging Voltage (Adjustable)
|
51.75Vdc(Adjustable)
|
|
Chargers
|
|
|
PV Charging Mode
|
MPPT
|
|
Max PV Input Power
|
6000W*2
|
|
Max PV Input Current
|
18A*2
|
|
MPPT Tracking Range
|
120~450Vdc
|
|
Max PV Input Voltage
|
500Vdc
|
|
Best Open Circuit Voltage Range
|
370~430Vdc
|
|
Best Voltage
|
300~340Vdc
|
|
Max PV Charging Current
|
100A*2
|
|
Max AC Charging Current
|
160A
|
|
Max Charging Current
|
200A
|
|
Display
|
|
|
LCD Display
|
Display Running Mode/Loads/Input/Output etc.
|
|
Interface
|
|
|
Communication Port
|
WiFi/USB/CAN(RS485)
|
|
Environment
|
|
|
Operating Temperature
|
0~40℃
|
|
Humidity
|
20%~95%(No Condensing)
|
|
StorageTemperature
|
-15~60℃
|
|
Altitude
|
No derating below 1000m,derating for 1% every 100m from 1000m to 4000m
|
