Solar lithium phosphate battery 24v 100ah 200ah portable lithium battery pack
| Model Number: | SWB12180 |
| Capacity： | 2304WH |
| Battery Rated Voltage: | 12.8V |
| Dimensions（mm）: | 520*270*220 |
| Weight（kg）: | 31.5 |
|
Electrical
|
|||||
|
Battery Model
|
SWB12100
|
SWB12150
|
SWB12180
|
SWB12200
|
SWB12240
|
|
Nominal Voltage/V
|
12.8V
|
||||
|
Nominal Capacity/Ah
|
100Ah
|
150Ah
|
180Ah
|
200Ah
|
240Ah
|
|
Rated Energy/Wh
|
1280Wh
|
1920Wh
|
2304Wh
|
2560Wh
|
3072Wh
|
|
BMS Function
|
Overcharge, overdischarge, over current and temperature protection
|
||||
|
Charge Cut-off Voltage/V
|
14.4V
|
||||
|
Discharge Cut-off Voltage/V
|
10.8V
|
||||
|
Standard Charge Current/A
|
50A
|
||||
|
Max.Charge Current/A
|
60A
|
100A
|
|||
|
Continuous Discharge Current/A
|
60A
|
100A
|
|||
|
Maximum Discharge Current/A@10S
|
100A
|
200A
|
|||
|
Mechanical
|
|||||
|
Dimensions/mm
|
307*169*213
|
520*270*220
|
|||
|
Weight/kg
|
11.5kg
|
31.5kg
|
|||
|
Terminal
|
M8
|
||||
|
Casing Material
|
ABS
|
||||
|

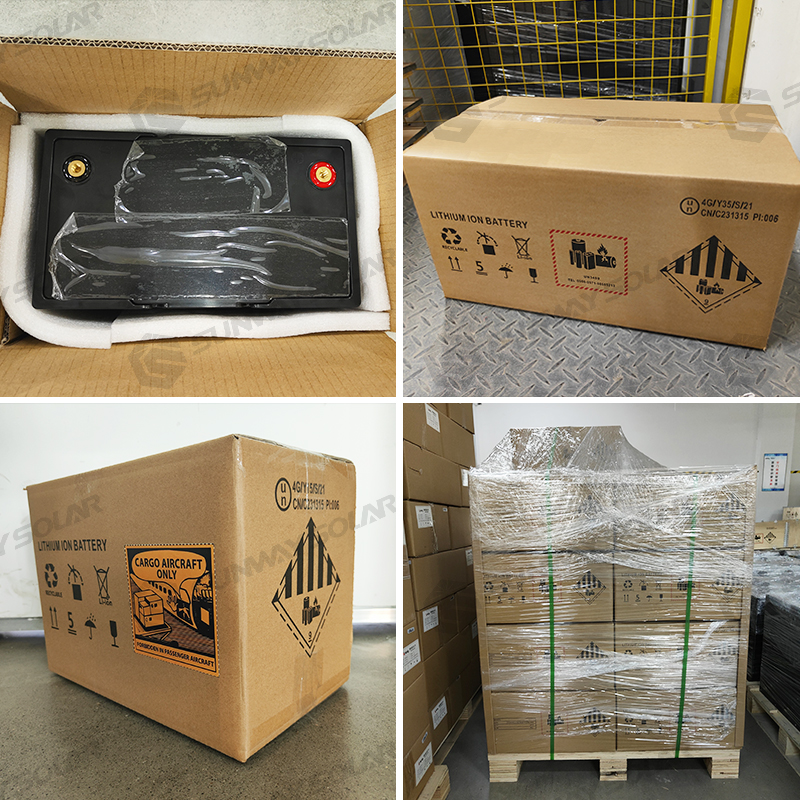

STANDARD PACKAGING DETAIL
|
|||||
|
Battery
Model
|
Dimension
(mm)
|
Weight
(kg)
|
No./UN Carton
|
Weight(kg)/
Carton
|
Dimension
(mm)/Carton
|
|
SWB1208
|
151*65*94
|
0.95
|
12
|
30.4
|
553*337*296
|
|
SWB1212
|
151*65*94
|
1.4
|
12
|
33.6
|
553*337*296
|
|
SWB1220
|
181*77*170
|
2.3
|
4
|
27.6
|
435*260*335
|
|
SWB1236
|
197*165*170
|
4.1
|
2
|
10
|
362*223*262
|
|
SWB1250
|
223*150*178
|
5.6
|
4
|
11.2
|
362*223*262
|
|
SWB12100
|
307*169*213
|
11.5
|
1
|
12.5
|
362*223*262
|
|
SWB12150
|
520*270*220
|
31.5
|
1
|
32.5
|
553*337*296
|
|
SWB12180
|
520*270*220
|
31.5
|
1
|
32.5
|
553*337*296
|
|
SWB12200
|
520*270*220
|
31.5
|
1
|
32.5
|
553*337*296
|
|
SWB12240
|
520*270*220
|
31.5
|
1
|
32.5
|
553*337*296
|
