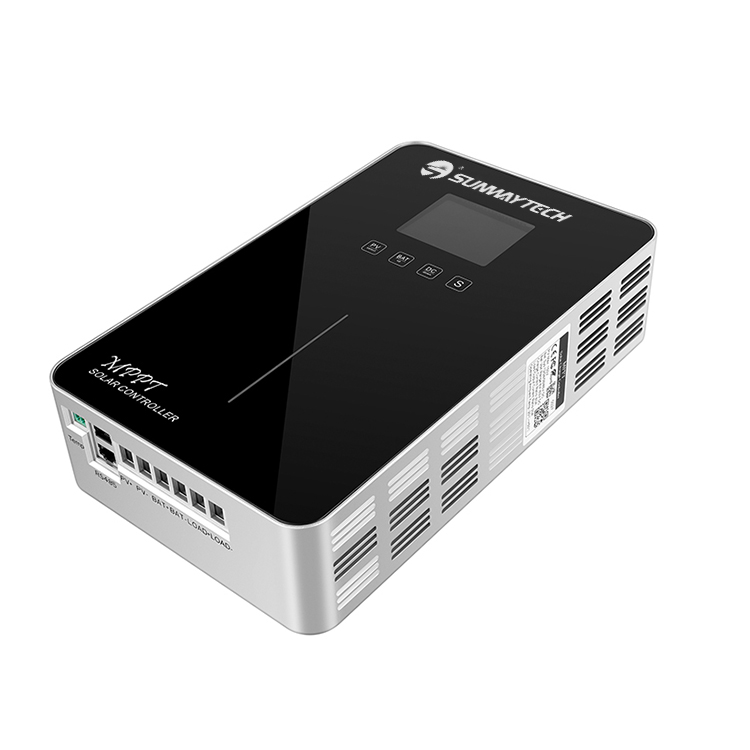

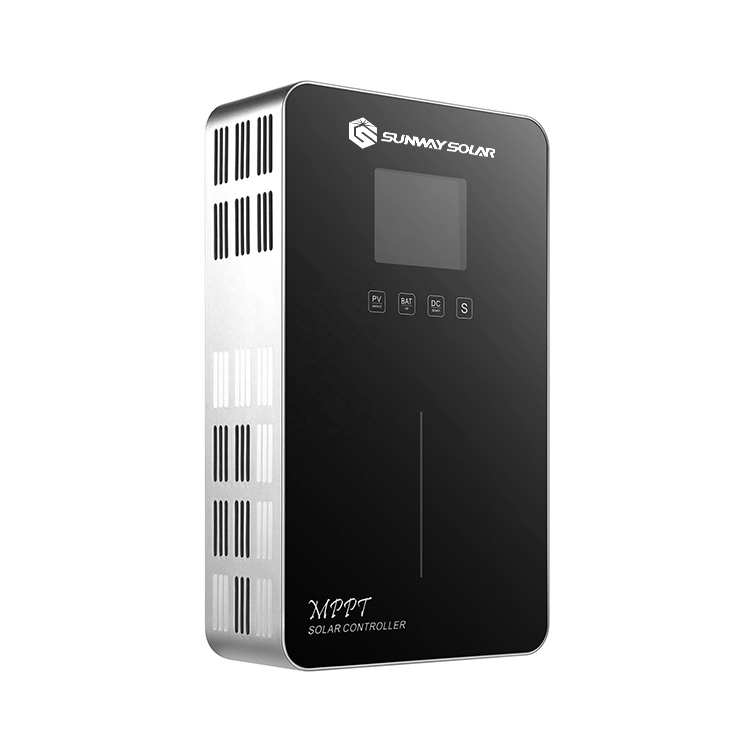

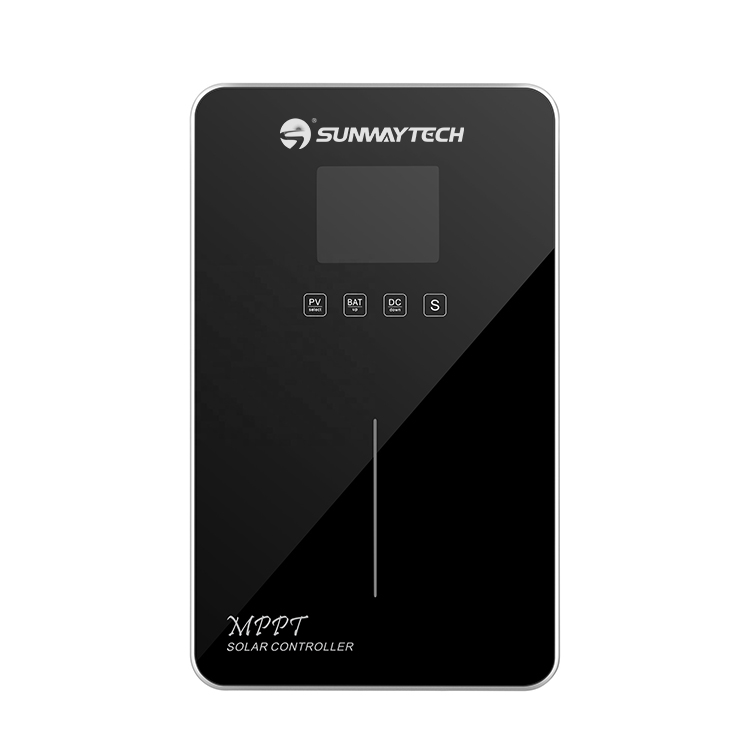

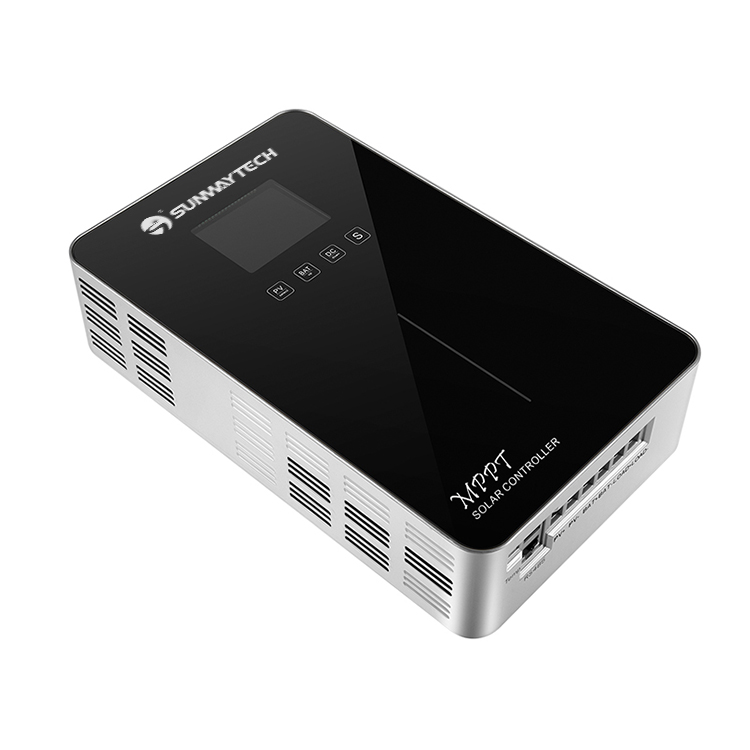

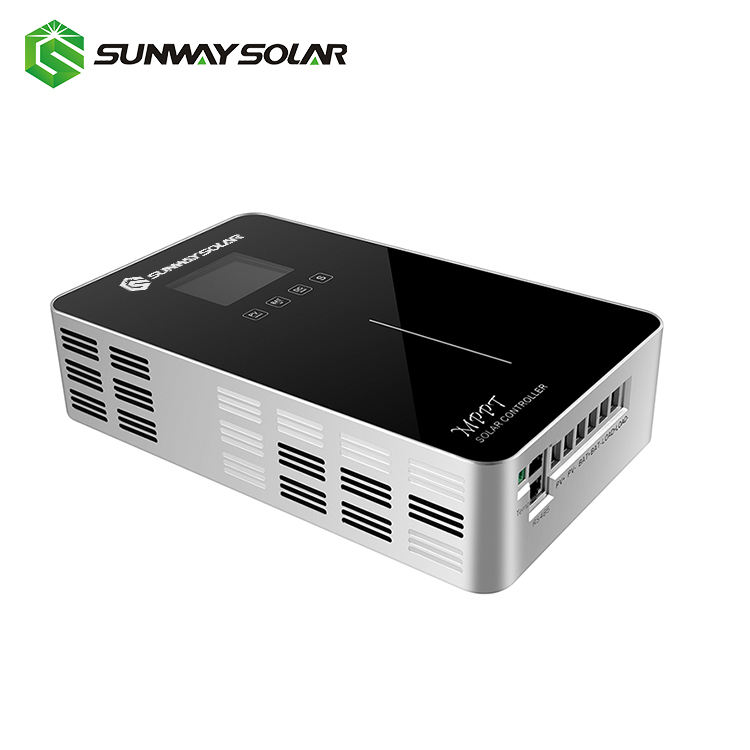

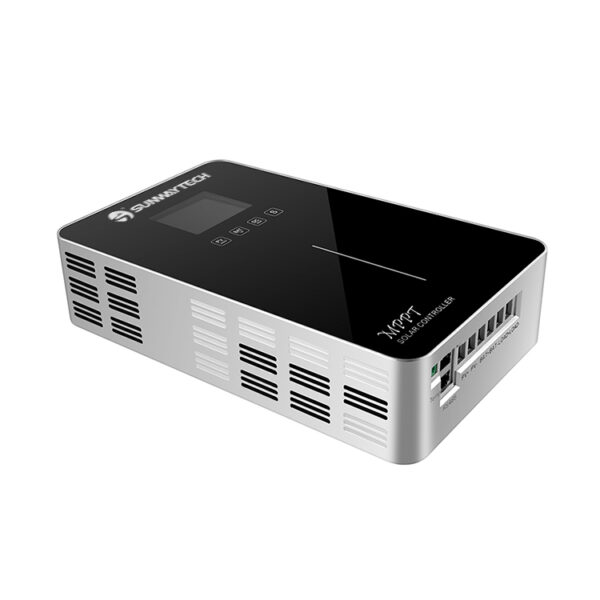

Sunway MPPT charge controllers 24V 48V solar charge inverter charge controller for solar system
|
Model Number: |
R48L100 |
|
Reted PV Power: |
12V/24V/36V/48V |
|
Output Voltage: |
60V |
|
Size: |
380mm*210mm*80mm |
|
Weight: |
2.6-6.2KG |
A New Generation of Intelligent Digital MPPT Solar Controller
1. high-end design, color screen, touch button
2. four-stage charging to extend battery life
3. tracking efficiency up to 99.5%
4. perfect protection function
5. expandable APP, host computer, and unlimited parallel connection
6. monitor the entire system status, diagnose system matching, etc.
Characteristics of Sunway Runner Series Solar Charge Controller
* High-efficient MPPT algorithm, MPPT efficiency ≥99.5%.
* Support Seal/Gel/Flooded battery and customized batteries.
* Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control.
* Current-limited charging function. * High definition LCD display.
* Intelligent interaction experience.
* Dual RS485 communication ports, support for parallel communication.
* Support PC and APP (Android & iOS) monitoring.
* CE, RoHS, FCC certifications approved.
Working Principle of Sunway Runner Series Solar Charge Controller
|
Runner-RS Reries |
R48L40
|
R48L50
|
R48L60
|
R48L80
|
R48L100
|
|
|
Product Category |
||||||
|
MPPT efficiency |
≥99.5%
|
|||||
|
Standby power |
1W~1.8W
|
|||||
|
Heat-Dissipating method |
Built-in fan for cooling
|
|||||
|
Lead-acid battery system |
12V System：9VDC~15VDC 24V System：18VDC~30VDC
36V System：32VDC~40VDC 24V System：42VDC~60VDC
|
|||||
|
Lithium-ion battery system |
8VDC~60VDC
|
|||||
|
Input Characteristics |
||||||
|
Max.PV input voltage(Voc) |
150VDC
|
|||||
|
Min.Vmpp Voltage |
Battery Voltage + 2V
|
|||||
|
Start-up charging voltage |
Battery Voltage + 3V
|
|||||
|
Low input voltage protection |
Battery Voltage + 2V
|
|||||
|
Over voltage protection / Recovery |
150VDC/145VDC
|
|||||
|
|
12V system |
560W
|
700W
|
840W
|
1120W
|
1400W
|
|
24V system |
1120W
|
1400W
|
1680W
|
2240W
|
2800W
|
|
|
36V system |
1680W
|
2100W
|
2520W
|
3360W
|
4200W
|
|
|
48V system |
2240W
|
2800W
|
3360W
|
4480W
|
5600W
|
|
|
Battery type Default |
Sealed(SEL),Gel(GEL),Flooded(FLD),User-defined(USER),Li-ion LifePo4(LFP)
|
|||||
|
Rated charge current |
40A
|
50A
|
60A
|
80A
|
100A
|
|
|
Communication |
Dual RJ45 port / RS485 / support PC software monitoring / support WiFi module for APP cloud monitoring / support centralized parallel monitoring |
|||||
|
Recommended breaker |
≥63A
|
≥ 63A
|
≥ 100A
|
≥ 120A
|
≥ 150A
|
|
|
Net weight/Gross weight (kg) |
2 /2.6
|
5 / 6.2
|
||||
|
Product size /Packing size (mm) |
305x185x90/370x218x98
|
380x210x80/490x350x195
|
||||
|
Remarks: 1. The above is the standard parameters of the company. If there are any changes, please contact with our sales
2. Our company can customize non-conventional MPPT controllers for customers and provide OEM and ODM services
|
||||||

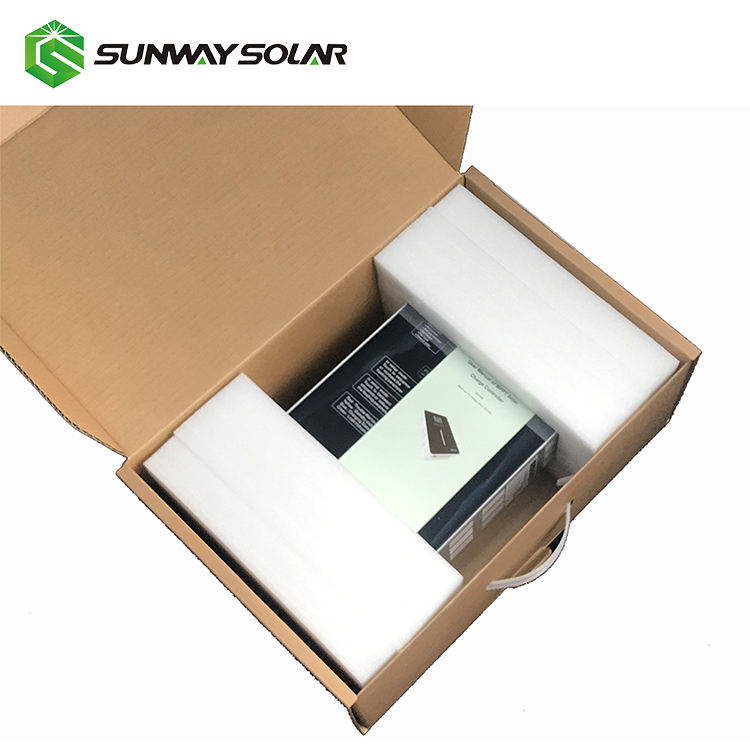

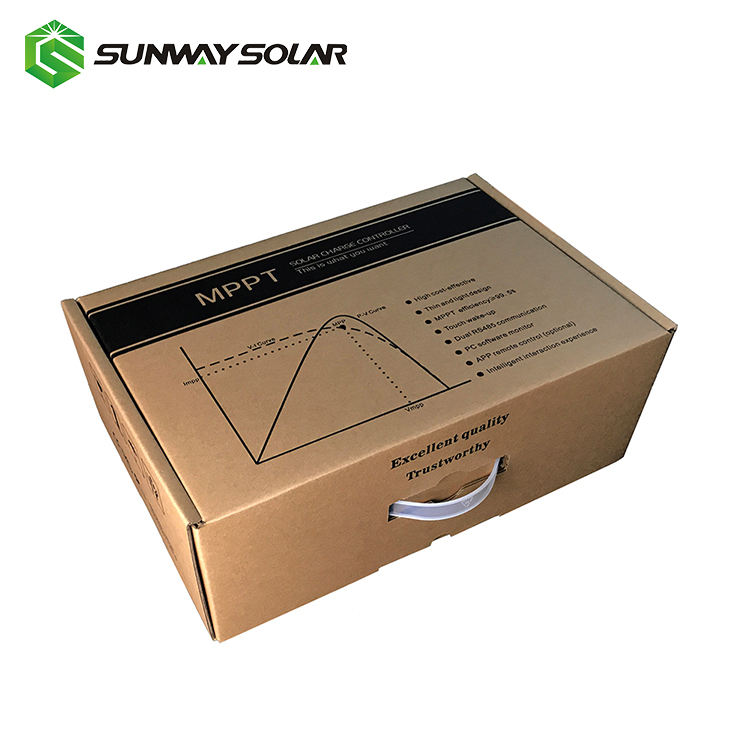

Mppt Solar Charge Controller Packaging
|

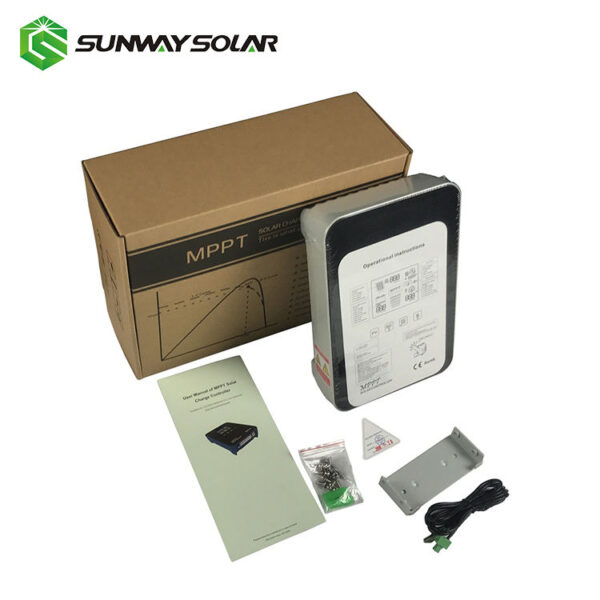

Product List for Runner Series MPPT Solar Charge Controller
|
||
|
Item |
Description
|
Quantity
|
|
Product Name |
MPPT controller
|
1 unit
|
|
Installation accessories package |
Mounting backboard
|
1 pcs
|
|
Temperature sensing cable
|
1 pcs
|
|
|
M4 screws (for mounting backboard)
|
4 pcs
|
|
|
plastic expansion particles
|
4 pcs
|
|
|
Accessory pack |
User manual
|
1 pcs
|
|
Optional |
RS485-USB cable
|
1 pcs
|
|
Bluetooth communication module
|
1 pcs
|
|
|
External WIFI communication module
|
1 unit
|
|
|
|
|
|

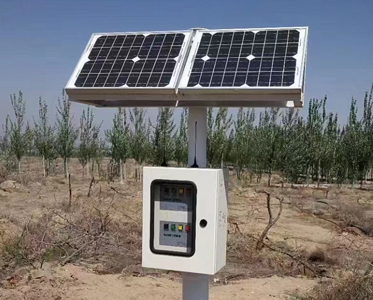

Home Solar Energy System |
Energy Storage System |
|
|
|
|
Solar Monitoring System |
Communication Basestation |
