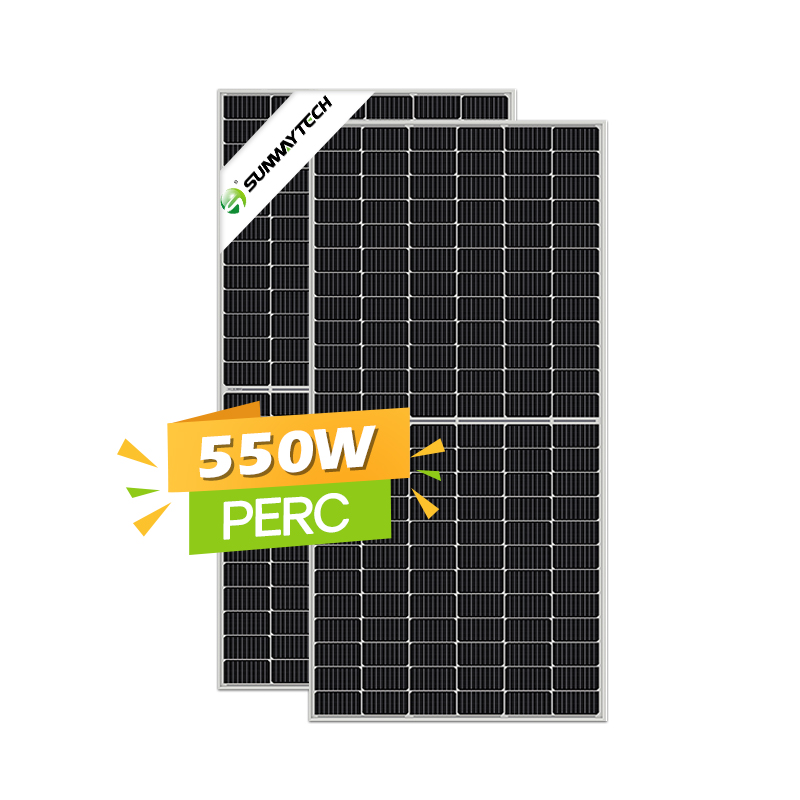

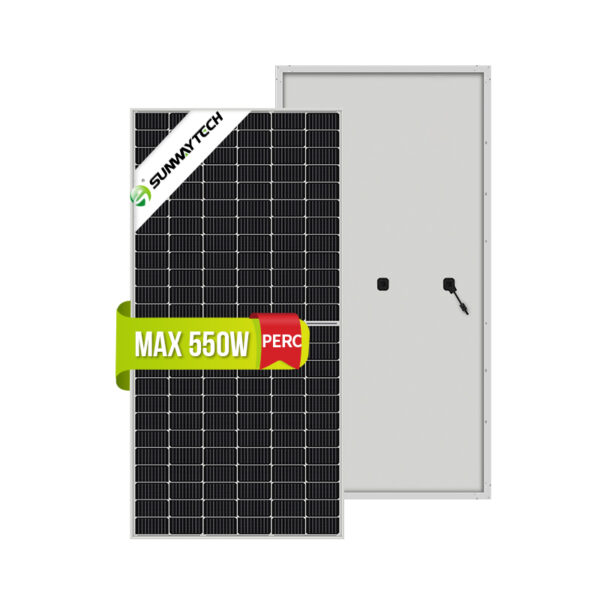

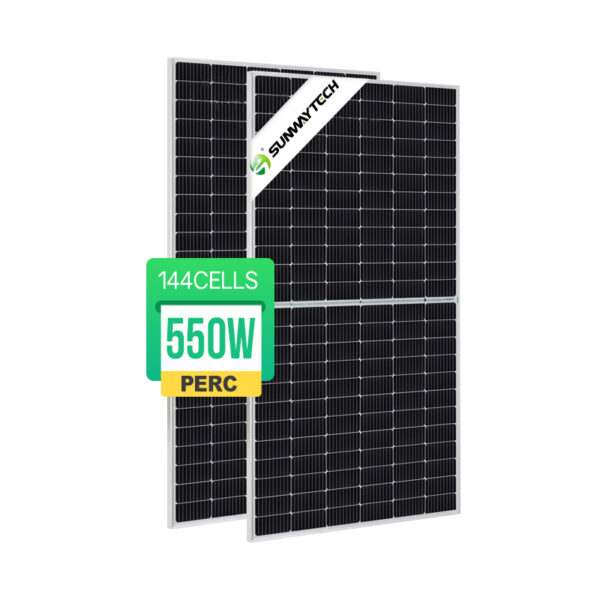

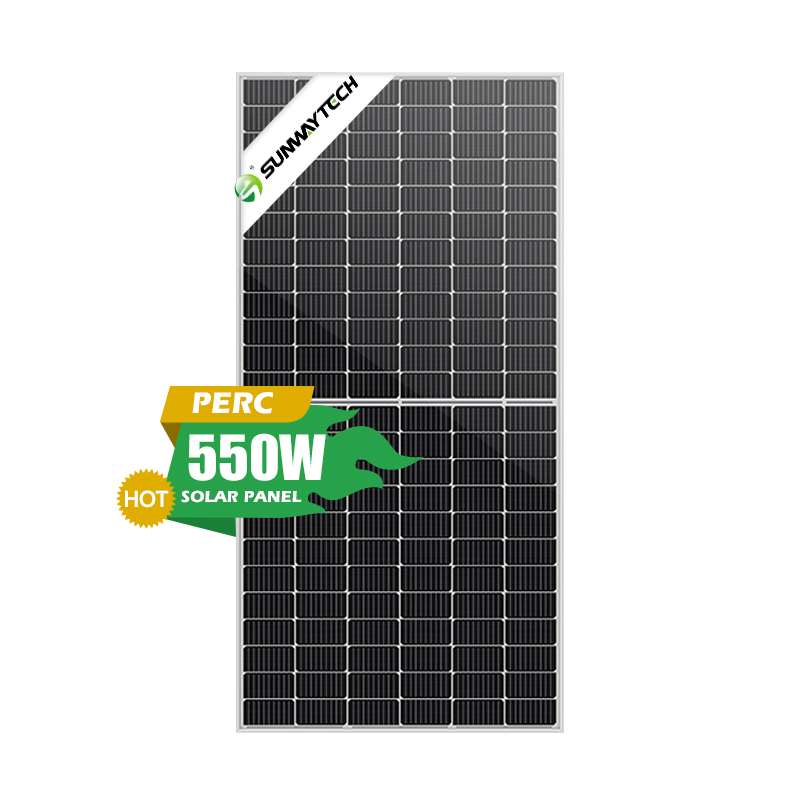

Perc Half Cell Solar Panel:
High power 550watt half cell solar panel 540w 550w 560w mono photovoltaic module pv solar panel
| Model Number: | SW550M-144 |
| Power Range： | 540W-560W |
| Dimensions: | 2279*1134*35mm |
| Weight: | 29kg |
| Certificate: | CE/TUV |
Sunway High power perc half cell solar panel 540w 550w mono photovoltaic module pv solar panel
|

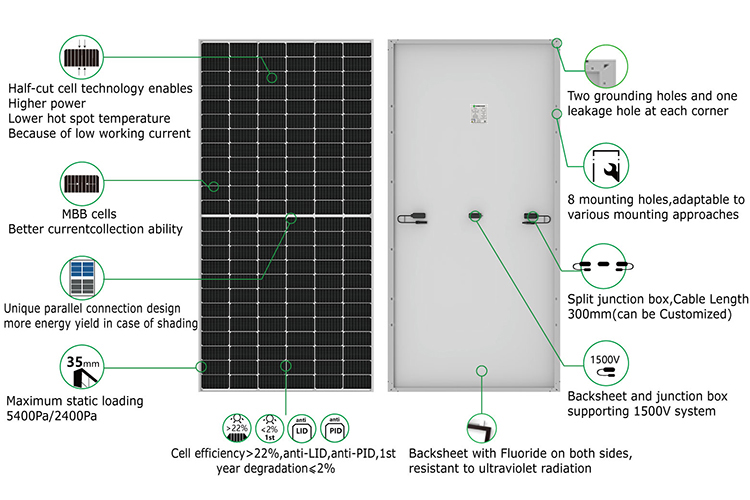

MECHNICAL SPECIFICATION
|
|
|
Module Size
|
2279*1134*35mm
|
|
Weight
|
29kgs
|
|
Cell Type
|
Half Cut Perc
|
|
Junction Box
|
IP67/IP68, 3Diodes
|
|
Cable
|
300m 4mm2 cable or customized
|
|
Connector
|
PV Connector
|
|
ELECTRICAL CHARACTERISTICS(STC)
|
|||
|
Module
|
SW550M-144 ~ SW560M-144
|
||
|
Maximum Power (Pmax)
|
550W
|
555W
|
560W
|
|
Maximum Power Voltage (Vmp)
|
41.60V
|
41.80V
|
42.00V
|
|
Maximum Power Current (Imp)
|
13.23A
|
13.29A
|
13.35A
|
|
Open-circuit Voltage (Voc)
|
49.80V
|
50.00V
|
50.20V
|
|
Short-circuit Current (Isc)
|
13.99A
|
14.05A
|
14.11A
|
|
Module Efficiency (%)
|
21.20%
|
21.39%
|
21.58%
|
|
Power Tolerance
|
0~+5W
|
||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
||
|
Electrical Characteristics(STC)
|
|||
|
Module
|
SW535M-144 ~ SW545M-144
|
||
|
Maximum Power (Pmax)
|
535W
|
540W
|
545W
|
|
Maximum Power Voltage (Vmp)
|
41.00V
|
41.20V
|
41.40V
|
|
Maximum Power Current (Imp)
|
13.05A
|
13.11A
|
13.17A
|
|
Open-circuit Voltage (Voc)
|
49.20V
|
49.40V
|
49.60V
|
|
Short-circuit Current (Isc)
|
13.81A
|
13.87A
|
13.93A
|
|
Module Efficiency (%)
|
20.62%
|
20.81%
|
21.01%
|
|
Power Tolerance
|
0~+5W
|
||
|
Standard Test Environment
|
Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5
|
||
 |
||
|

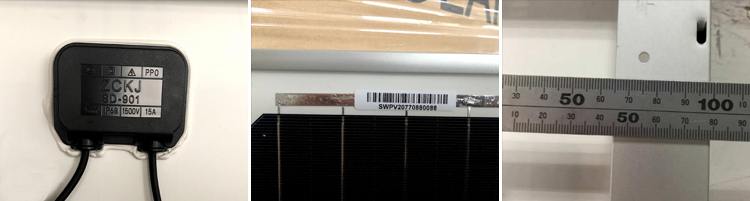

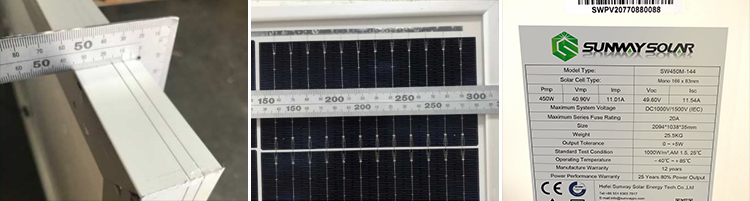

Junction Box |
Serial No. |
Grounding Hole |
 |
||
| Frame Corner | Tier 1 Solar Cell | Sunway Label |
