Energy Solar System :
Microgrid mainly has solar power system(Inverter, Solar panels), Energy storage system( AGM, GEL or lithium battery), can be also connect with generator
| Model Number: | SWS1MW-BESS |
| System Type： | Energy Storage System |
| Solar Power: | 1MW/1.5MW |
| Output Voltage: | 380V-400V |
| Certificate: | UL/TUV/CE/ISO |
Features of Sunway Energy Storage Container Energy Storage System
1、Multilevel protection strategy to ensure the safe and stable operation of the system.
2、The technology is mature and stable through inspection and testing by many stakeholders.
3、Multi-scenario application, flexible configuration and compatibility, adapting to various energy storage requirements.
4、It is suitable for use in special and harsh areas such as high altitude and cold areas.
5、High degree of standardization, integration, rapid deployment, short construction and commissioning period, simplicity and easy maintenance.

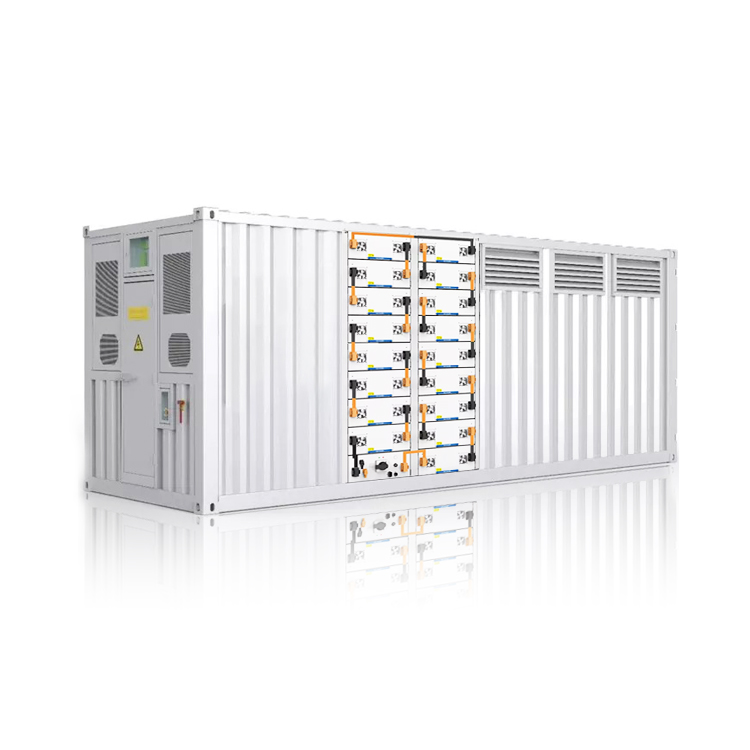

ESS Container Battery
Sunway Ess battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application.
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
|
product model
|
HJESLFP-38240

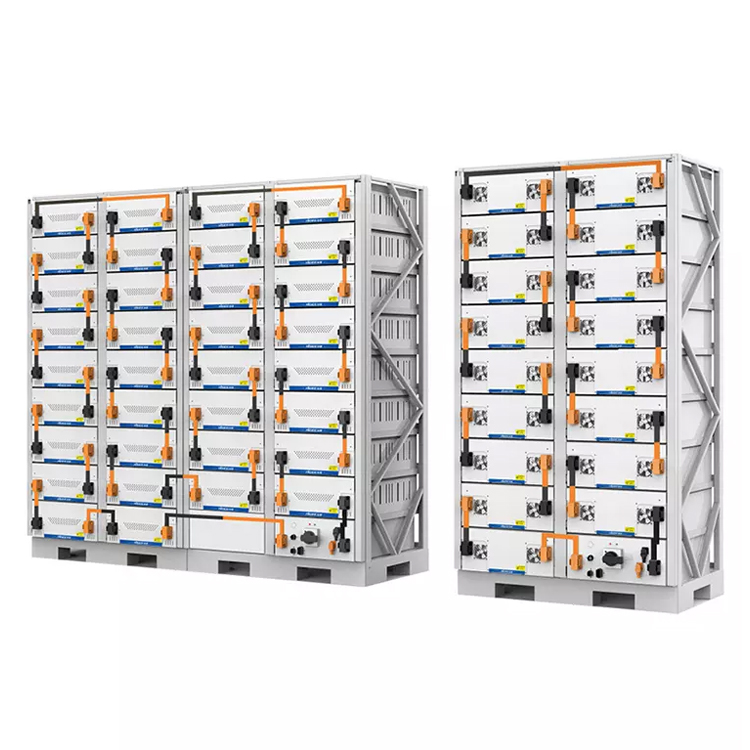

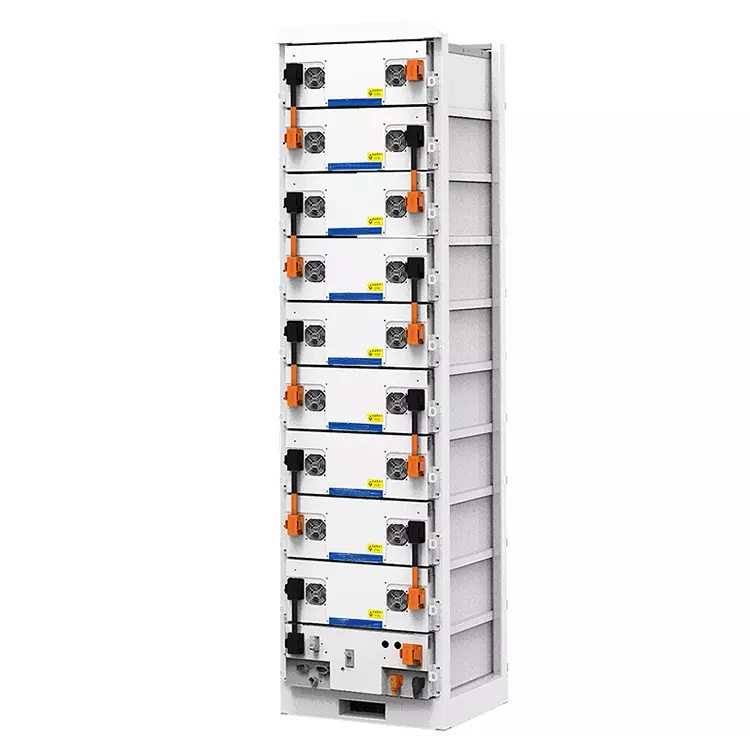

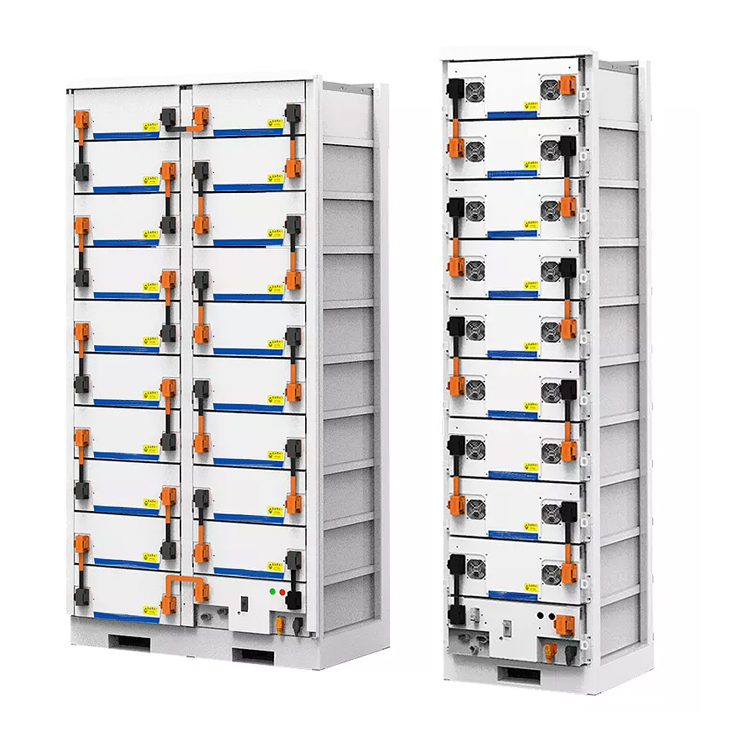

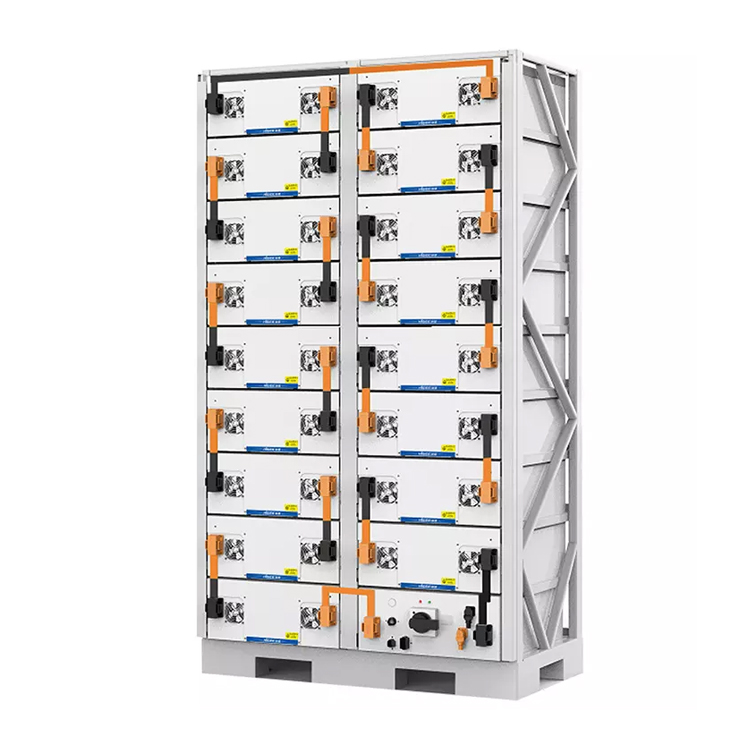

Battery clusters
|
HJESLFP-76120
Battery clusters
|
HJESLFP-38240
Battery clusters (1500VDC)
|
HJESLFP-76120
Battery clusters (1500VDC)
|
|
Cell type
|
LFP48173170E-120Ah
|
LFP48173170E-120Ah
|
LFP48173170E-120Ah
|
LFP48173170E-120Ah
|
|
Module type
|
HJESLFP-38240
|
HJESLFP-76120
|
HJESLFP-38240
|
HJESLFP-76120
|
|
compound mode
|
2P(192S~240S)
|
1P(192S~240S)
|
2P (348S ~ 420S)
|
1P(360S~408S)
|
|
nominal voltage
|
614.4 ~ 768 V
|
614.4 ~ 768 V
|
1113.6-1344 V
|
1152-1305.6 V
|
|
Rated capacity
|
240 Ah
|
120 Ah
|
240 Ah
|
120 Ah
|
|
Nominal energy
|
147.46 ~ 184.32 kWh
|
73.73 ~ 92.16 kWh
|
267.26 ~ 322.56 kWh
|
138.24 〜156.67 kWh
|
|
Standard charging current
|
120 (0.5 C) A
|
120 (1 C) A
|
120 (0.5 C) A
|
120 (1 C) A
|
|
Maximum charging current
|
150 (0.625 C) A @5S
|
150 (1.25 C) A @5S
|
150 (0.625 C) A @5S
|
150 (1.25 C) A @5S
|
|
Standard discharge current
|
120 (0.5 C) A
|
120 (1 C) A
|
120 (0.5 C) A
|
120 (1 C) A
|
|
maximum discharge current
|
150 (0.625 C) A @5S
|
150 (1.25 C) A @5S
|
150 (0.625 C) A @5S
|
150 (1.25 C) A @5S
|
|
running voltage
|
500~ 850V
|
500 ~ 850 V
|
950~1500V
|
950 ~ 1500 V
|
|
Size (width * depth * height)
|
1086x732.5x2220 mm
|
551x732.5x2270 mm
|
2172x732.5x2014 mm
|
1086x732.5x2014 mm
|
|
weight
|
≤1900㎏
|
≤950㎏
|
≤3550㎏
|
≤1800㎏
|
|
product model
|
Medium and small container energy storage power station system
|
Large container energy storage power station system
|
|
Cell type
|
LFP48173170E-120Ah
|
LFP48173170E-120Ah
|
|
rated power
|
≤1 MW
|
≤1.5 MW
|
|
Charge and discharge rate
|
≤0.5C
|
≤0.5C
|
|
compound mode
|
228S2P*12
|
228S2P*18
|
|
nominal capacity
|
2880 Ah
|
4320 Ah
|
|
Nominal energy
|
1 MW/2.1 MWh
|
3.15 MWh
|
|
nominal voltage
|
729.6 V
|
729.6 V
|
|
the protection grades
|
IP54
|
IP54
|
|
Operating voltage range
|
638.4 ~ 809.4 V
|
638.4-809.4 V
|
|
Operating humidity range
|
0-95% （Non-condensation）
|
0-95% （Non-condensation）
|
|

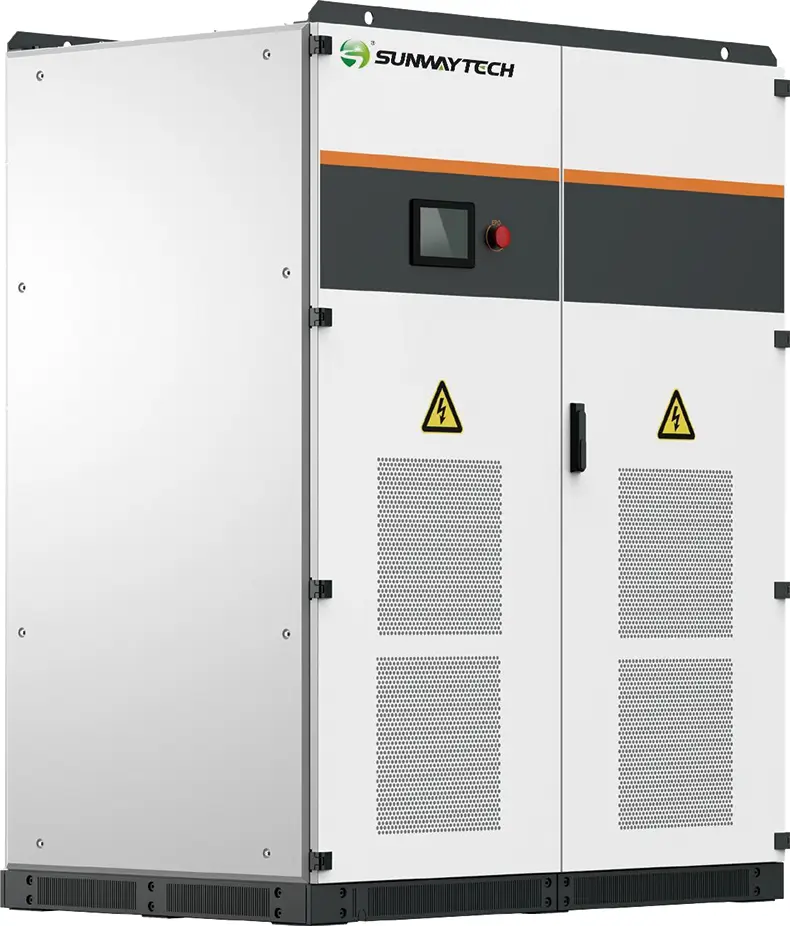

Energy storage inverter
|
<1MW （Including PCS and isolation transformer）
|
March-Past（Including PCS and isolation transformer）
|
|
protocol
|
CAN、RS485、 IEC104、TCP/IP
|
CAN、RS485、IEC104、TCP/IP
|
|
Dimensions (width x depth x height)
|
40-foot high standard container
|
40-foot high standard container
|
|
weight
|
35 T
|
45 T
|
