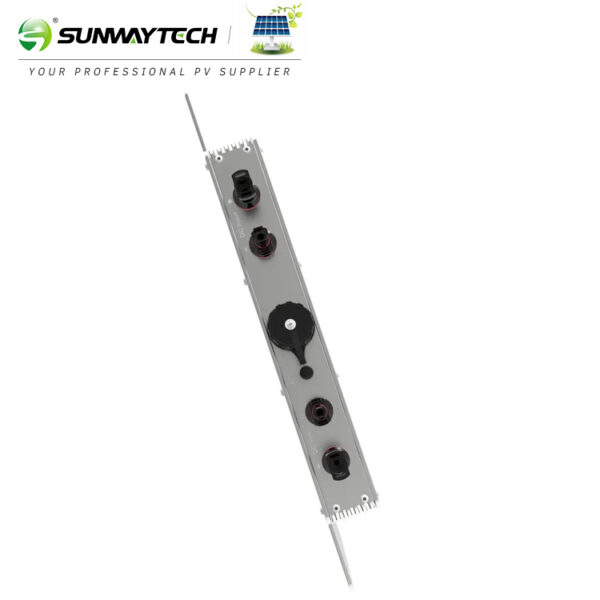

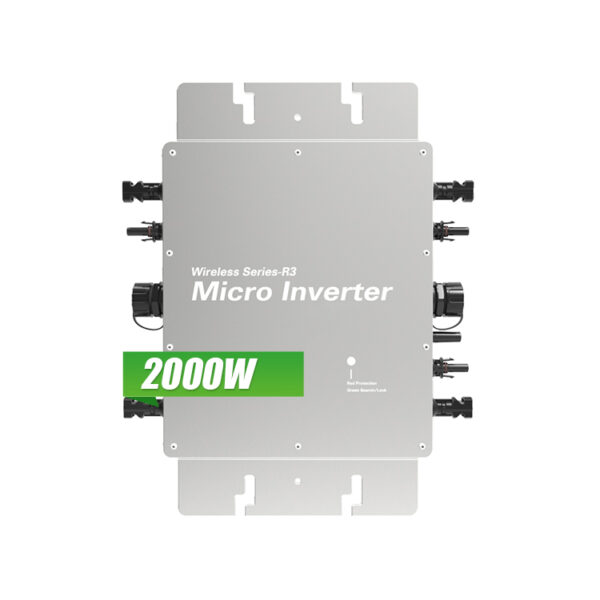

High quality microinverter 2000w 220V On grid inverter for Home Energy Storage Systems
| Model Number: | SW-2000 |
| Output power： | 2000w |
| Output Voltage: | 120/230V |
| Size: | 370 x 300 x 41.6 mm |
| Weight: | 3.0KG |
This system utilizes micro-inverters that convert DC to AC, and are installed at a ratio of one per two PV modules. Each micro-inverter operates independently, maximizing power generation of each module. This approach allows for greater control and flexibility, resulting in a more dependable and efficient system.
|
model
|
SW-2000
|
|
|
Recommend use panels
|
4-625Watt
|
|
|
Output voltage mode
|
120/230V Auto switch
|
|
|
PV Open circuit voltage
|
30-54VOC
|
|
|
Operating voltage range
|
22-60V
|
|
|
Starting voltage range
|
22-60V
|
|
|
short-circuit current
|
4*23A
|
|
|
Maximum working current
|
4*20A
|
|
|
Output parameters
|
@120V
|
@230V
|
|
Output peak power
|
2200Watt
|
2200Watt
|
|
Rated output power
|
2000Watt
|
2000Watt
|
|
Output current
|
16.6A
|
8.7A
|
|
AC voltage range
|
80-160VAC
|
180-280VA
|
|
AC frequency range
|
48-51Hz/58-61Hz
|
48-51Hz/58-61Hz
|
|
Power factor
|
>95%
|
>95%
|
|
Number of branch connections
|
3PCS ( Single)
|
6PCS ( Single )
|
|
Output efficiency
|
@120V
|
@230V
|
|
Static MPPT efficiency
|
99.5%
|
99.5%
|
|
Max output efficiency
|
95%
|
95%
|
|
Loss of power at night
|
<0.5W
|
<0.5W
|
|
Total current harmonics
|
<5%
|
<5%
|
|
Appearance and technical features
|
||
|
Temperature range
|
-40℃ to +65℃
|
|
|
Size(LxWxH)
|
370mmx300mmx41.6mm
|
|
|
Net amount
|
3.0kg
|
|
|
Waterproof grade
|
Ip65 NEMA3R
|
|
|
Heat dissipation mode
|
Self-cooling
|
|
|
Communication mode
|
433MHz
|
|
|
Power transmission mode
|
Reverse transmission,Load priority
|
|
|
monitoring system
|
APP
|
|
|
Electromagnetic Detection
|
EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012
|
|
|
Power Grid standard
|
EN50549-1、EN 50549-2NBR 16149:2013、UL1741
|
|
|
Power grid detection
|
IEC/EN 62109-1IEC/EN 62109-2 IEC 62116IEEE 1547
|
|
|
Certificate
|
CE ， ETL ，INMETRO , Patented technology
|
|
|
Packing weight
|
||
|
Specifications
|
Each ( Packing )
|
Box(4PCS)
|
|
weight
|
4.36KG
|
18.38KG
|
|
Size
|
430x375x140mm
|
430x405x380mm
|
