Model Number
|
CBE2000
|
|
Dimension (L*W*H)
|
450 mm x350 mm x 190 mm (W x H x D)
|
|
Weight
|
27 kg
|
|
Protection Class
|
IP65 |

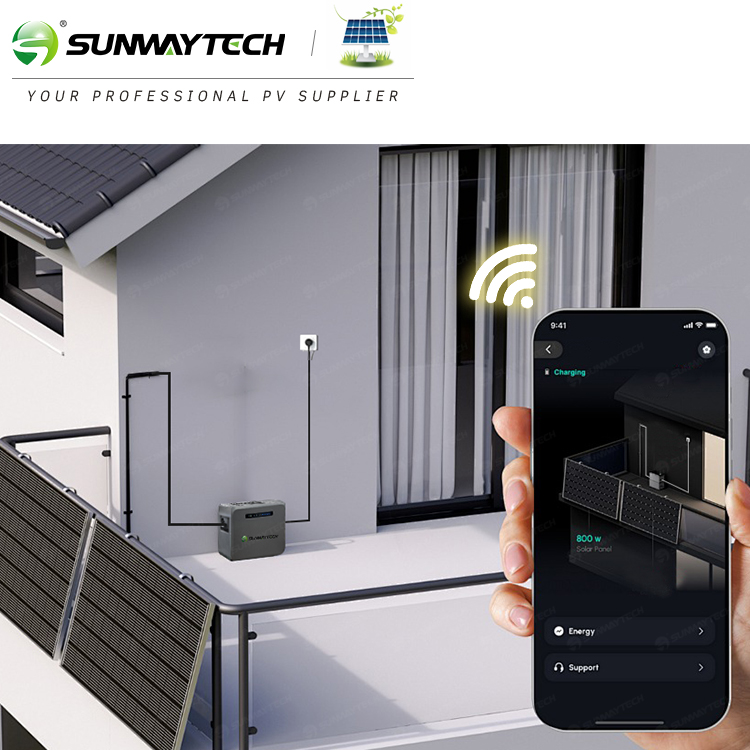

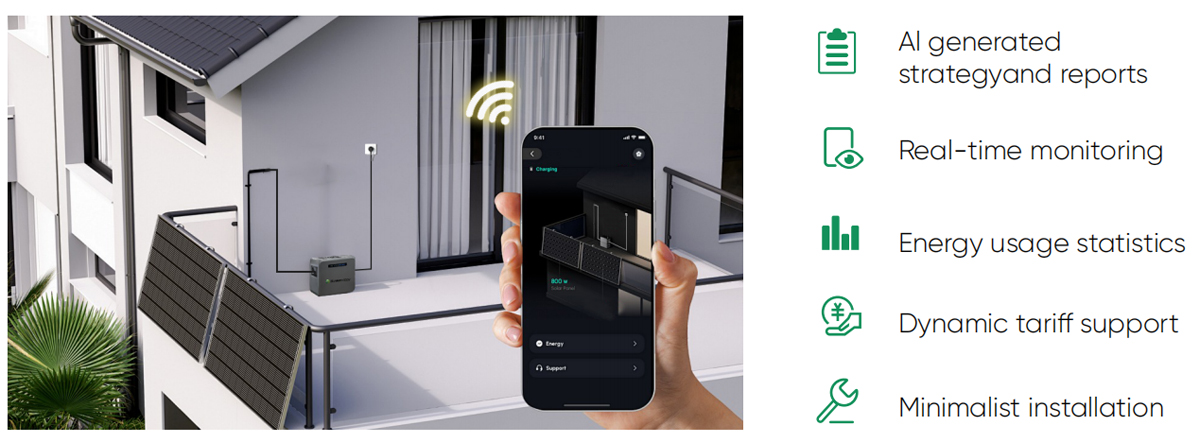

The new balcony energy storage system offers an all-in-one design for easy installation.Its smart app supports dynamic electricity pricing, real-time power calculation, and energy statistics, along with Al-generated strategies and reports for intelligent insights and optimization.
|
Model
|
CBE2000
|
|
Battery Data
|
|
|
Capacity
|
2048 Wh
|
|
Rated Voltage
|
51.2V ( 2P16S )
|
|
Life Cycle (Times)
|
>6000(25°C)
|
|
Battery Type
|
LifePO4
|
|
DOD
|
90%
|
|
Input Data (PV)
|
|
|
Input Power
|
2*800 W
|
|
Input Voltage
|
12V~60V
|
|
Max.Input Current (Single)
|
20A
|
|
Number of MPPT
|
2
|
|
Output Data (AC)
|
|
|
Rated Output Power
|
800W
|
|
Output Voltage
|
220/230/240 VAC (Single-phase)
|
|
AC Frequency Range
|
47.5 Hz - 51 HZ
|
|
Total Harmonic Distortion
|
Typ.<3% , Max.<5%
|
|
Power Factor (Adjustable)
|
>0.99 default 0.9 leading...0.9 lagging
|
|
Efficiency
|
|
|
Max. Output Efficiency
|
96.5%
|
|
MPPT Efficiency
|
99%
|
|
Environmental and Mechanical
|
|
|
Charging Temperature Range
|
0°C to +50°C
|
|
Discharging Temperature Range
|
-20°C to +55°C
|
|
Enclosure Rating
|
IP65
|
|
Cooling
|
Natural convection
|
|
Dimensions
|
450 mm x 350 mm x 190 mm (W x H x D)
|
|
Weight
|
27kg
|
|
Regulatory
|
|
|
Compliance
|
IEC/EN 62109,IEC/EN62619,IEC/EN61000-3-21-3,EN61000-6-11-3,EN 300328,RoHS 2.0,UN38.3VDE 4105/0124,NF EN50549-10,EN
50549-1/-10,OVE-directiveR25:2020-03 TOR Erzeuger Type A
|
