SUNWAY 22-75KW AC Solar Water Pump System

SUNWAY 22-75KW AC Solar Water Pump System

Category Solar Related Products

Controller Type	MPPT/32bit MCU/FOC/Sine Wave Current
OEM	OEM Services Provided
Lifespan	25YEARS
Place of Origin	China
Material	Stainless Steel

Solar Pump Solution

Professional solar pump inverter and system provider

Application

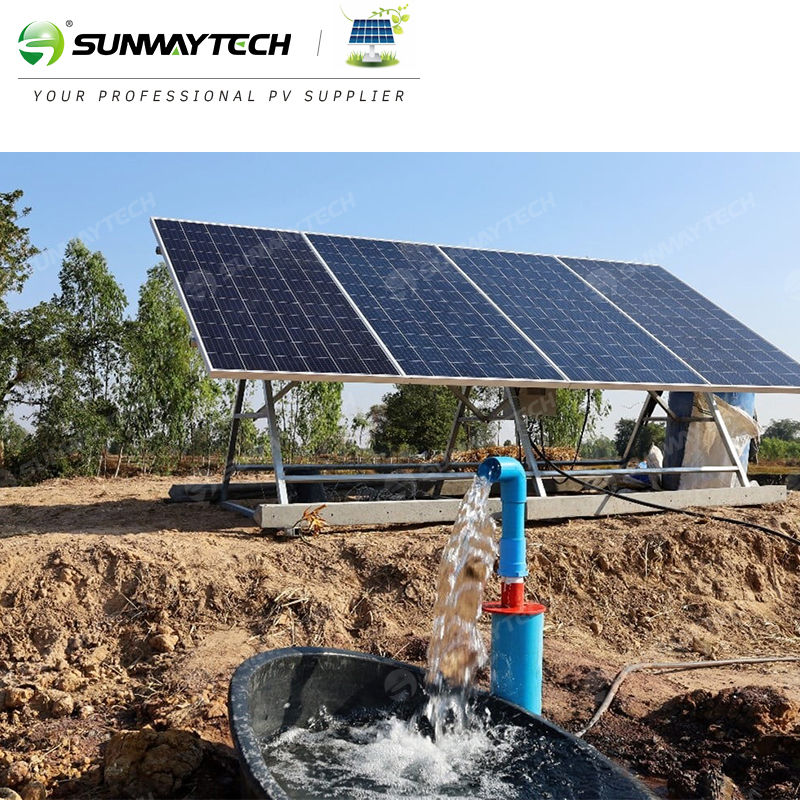

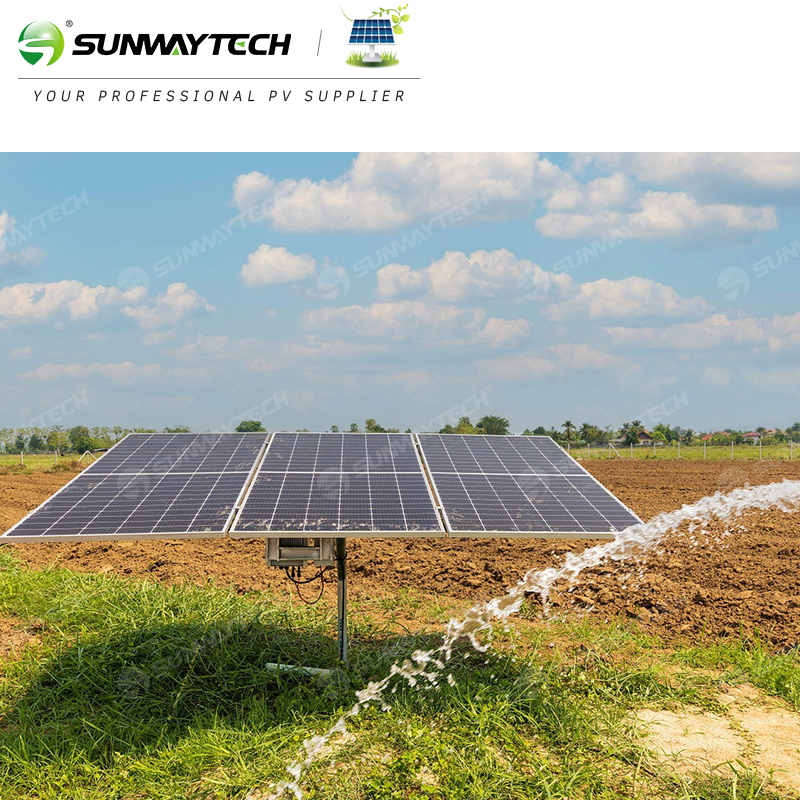

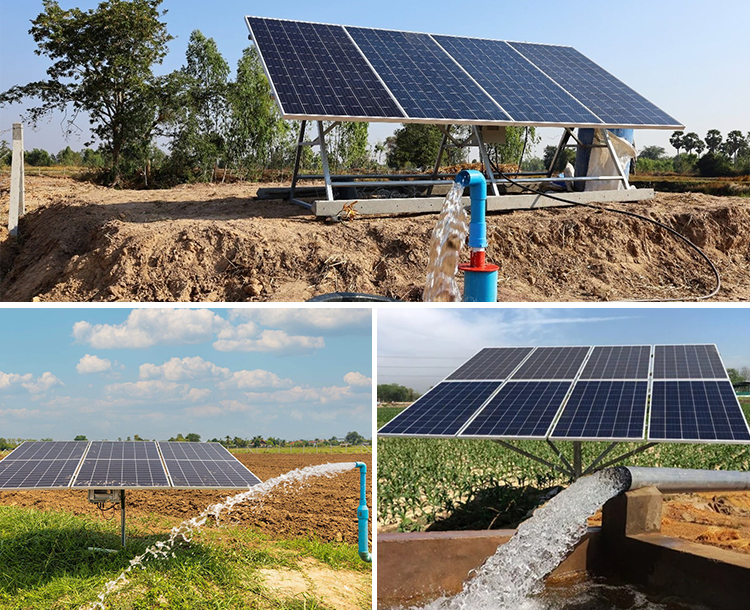

1.solar agricultural irrigation

2.solar aeration system

3.solar water treatment system

4.desert control

5.pasture animal husbandry

6.scenic fountain etc.

Pump power classification	Water pump power	Pump Model	Solar Panel Configuration (550w/420w General)	Water pump controller
22-75KW	AC400V 22KW	BSP77-80/6	13-14pcs (series connection*4 parallel)	GrandGlow 22KWPB
	AC400V 30KW	6SP46-158/18	13-14pcs (series connection*6 parallel)	GrandGIow 37KWPB
	AC400V 45KW	8SP77-160/12	13-14pcs (series connection*8 parallel)	GrandGlow 55KWPB
	AC400V 55KW	8SP77-200/15	13-14pcs (series connection*8 parallel)	GrandGlow 75KWPB
	AC400V 75KW	8SP77-267120	13-14pcs (series connection*12 parallel)	GrandGlow 90KWPB

System Features

1.Reliable solution for agricultural irrigation, daily water, desert control in non-electricity and water deficient area.

2.Wide application with all kinds of PV modules and 3-phase & 1-phase AC pumps

3.lP 65 for outdoors application

4.Max.operation temperature 60℃

5.GPRS remote monitoring for real time operation status and control on/off

6.Excellent performance during cloudy weather with 5% more water output compared to competito

7.Full automatic unattended operation with perfect protection functions for long lifespan 25 years

System Introduction (Ac system)

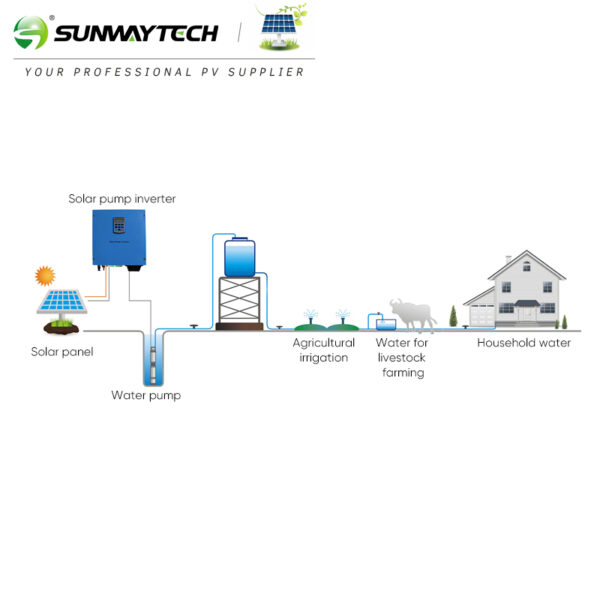

Solar pump system consists of four parts: solar panels, solar pumping inverter, three-phase AC pump and water storage device, The solar pump inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels. It will make the system to maximize efficiency to get the water as much as possible. The solar pump system fulfills concept of low carbon,energy conservation, environmental protection to improve the living standard in water-deficient area.
