Models
|
SW25100
|
SW25200
|
|
Chemistry
|
LiFeP04
|
|
|
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
100Ah(C5,25°C)
|
200Ah(C5,25°C)
|
|
Energy
|
2560Wh
|
5120Wh
|
|
Internal Resistance
|
≤50mQ
|
|

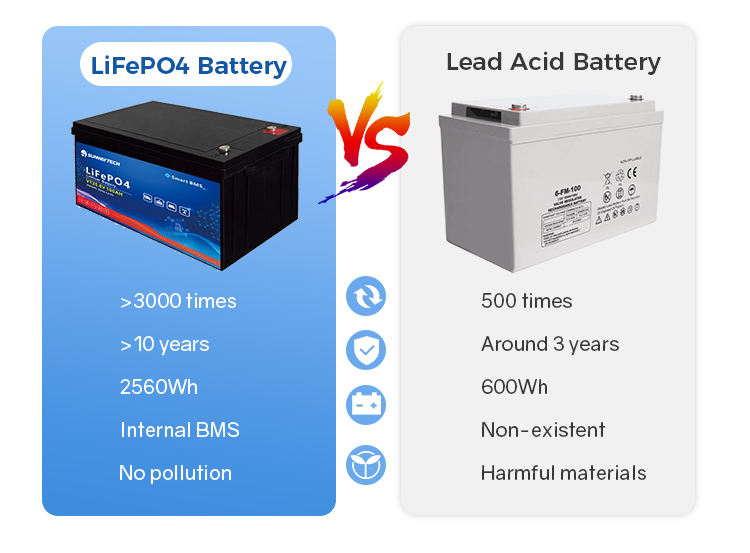

Features of LiFePO4 Battery
|
Models
|
SW25100
|
SW25200
|
|
Chemistry
|
LiFeP04
|
|
|
Nominal Voltage
|
25.6V
|
|
|
Nominal Capacity
|
100Ah(C5,25°C)
|
200Ah(C5,25°C)
|
|
Energy
|
2560Wh
|
5120Wh
|
|
Internal Resistance
|
≤50mQ
|
|
|
Gycle Life
|
>3000cycles@1C80%DOD
|
|
|
Months Self Discharge
|
<3%
|
|
|
Efficiency of Charge
|
100%@0.5C
|
|
|
Efficiency of Discharge
|
96-99%@10
|
|
|
Standard Charge
|
||
|
Charge Voltage
|
29.2±0.2V
|
|
|
Charge Mode
|
0.2C to 29.2V,then 29.2V,charge current to 0.02C(CC/CV)
|
|
|
Charger Current
|
100A
|
200A
|
|
Max.Charge Current
|
100A
|
200A
|
|
Charge Cut-off Voltage
|
31.2V±0.2V
|
|
|
Standard Discharge
|
||
|
Rated Discharge Current
|
100A
|
200A
|
|
Max Discharge Current
|
100A
|
200A
|
|
Max.Pulse Current
|
600A(<3s)
|
|
|
Discharge Cut-off Voltage
|
20V
|
|
|
Charge Temperature
|
0°C to 45*C(32F to 113F)@60±25% Relative Humidity
|
|
|
Discharge Temperature
|
-20°C to 60°C(-4F to 140F)@60±25% Relative Humidity
|
|
|
Storage Temperature
|
0°C to 40*C(32F to 104F)@60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP65
|
|
|
Mechanical
|
||
|
BMS
|
4P SMART Bluetooth
|
|
|
Plastic Case
|
ABS
|
|
|
Dimensions(in./mm.)
|
483*170-240mm
|
640*245*220mm
|
|
Weight(lbs./kg.)
|
19kg
|
38kg
|
|
Terminal
|
M8
|
|
