Sunway 300Kw 500Kw 800Kw 1Mw Battery Container Energy Storage System

Features of Sunway Energy Storage Container Energy Storage System
1. High degree of system integration, integrated battery management system, PCS, temperature control system, fire control system,
access control system, data monitoring system, AC and DC power distribution, lighting system, etc.
2. Customizable design to meet different customer needs. 3. Third-level BMS system architecture, safe and reliable.
4. The charging mode includes pre-charging, constant-current charging, uniform charging and floating charging.
5. The energy storage system has perfect functions of communication, monitoring, management, control, early warning and
protection. It operates continuously and safely for a long time. It can detect the running state of the system through the upper
computer. It has abundant data analysis ability and emergency power supply function.

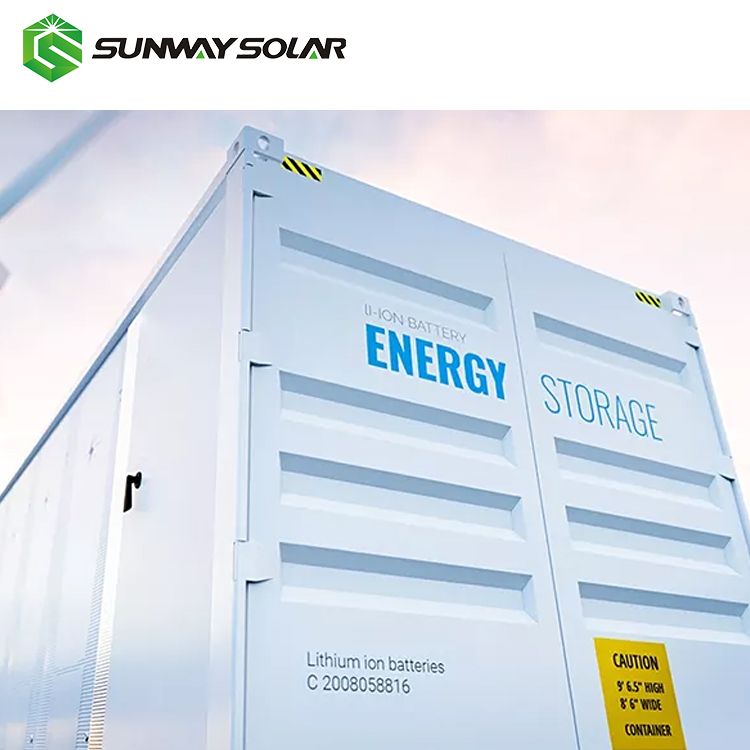

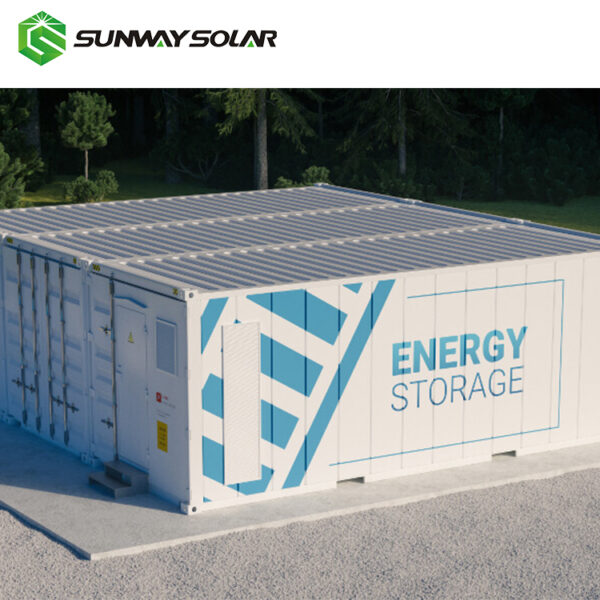

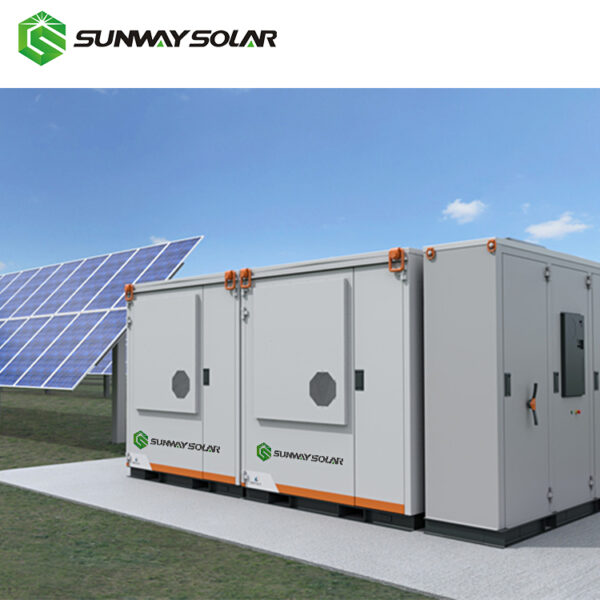

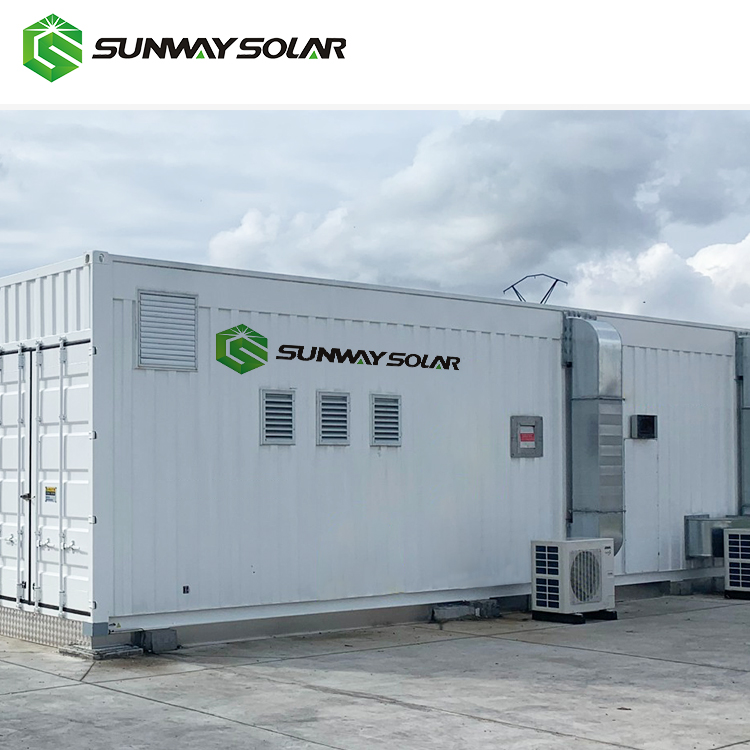

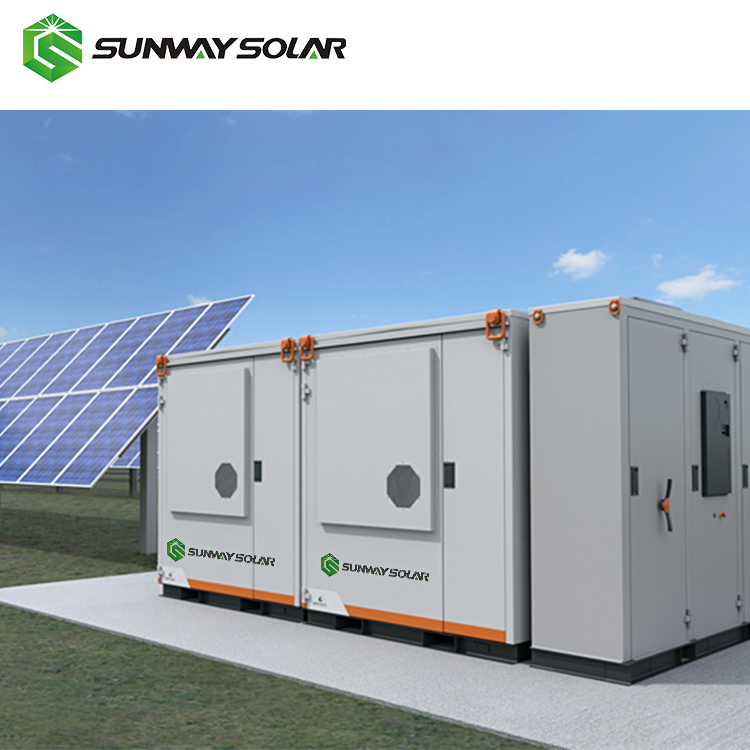

ESS Container Battery

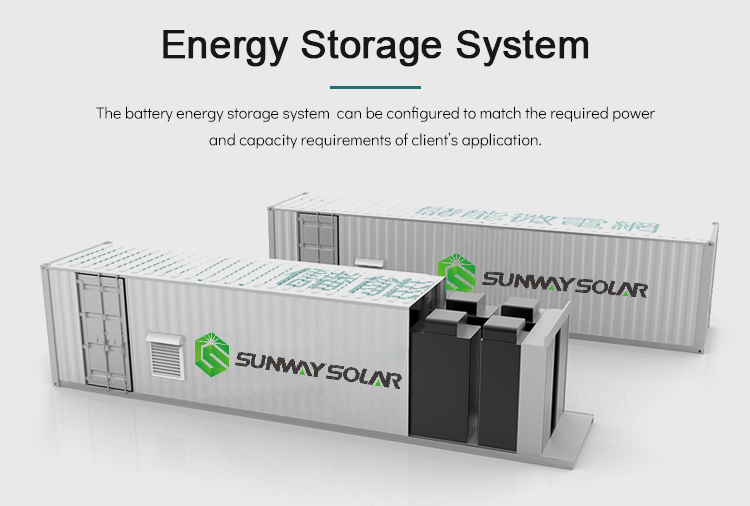

Sunway Ess battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application.
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.

Sunway ESS Lithium Energy Storage Container Energy Storage System
Model	SW300KWH-LFP	SW500KWH-LFP	SW800KWH-LFP	SW1MWH-LFP
Solar Panel	300KW	500KW	800KW	1MW
PV Combiner Box	Cutomized	Customized	Customized	Customized
Hybrid Solar Inverter	300KW PCS	500KW PCS	800KW PCS	1MW PCS
Utility Voltage Range	380V/360V-440Vac; 480V/432V - 528Vac 50/45~55Hz; 60/55~65Hz
Solar Battery Packs	Lithium Battery Packs BMS/MBMS/EMS Protection; 2V GEL/OPzV Batteries Optional
Battery Racks	4 Racks	4 Racks	6 Racks	8 Racks
Data Monitor	Wifi Monitor/4G Terminal Monitor
PV Cable	4/6mm2	4/6mm2	4/6mm2	4/6mm2
Installation Brackets	Aluminium Alloy, Stainless Steel, Hot-dip Galvanized Steel, Ground Screw Mounting, Adjustable Brackets, Solar Tracker
Installation Site	Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc
Installation Tools	Wire Cable Cutter & Stripper, Multi-Meter, Insulating gloves/covering etc
For installation manual, technical datasheet, inverter adjustment/testing or configuration, please send us inquiry.

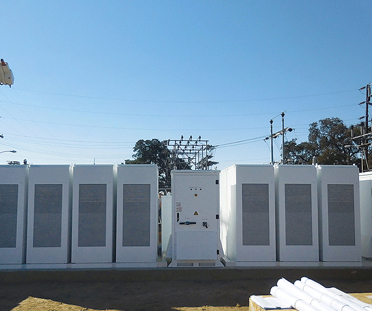

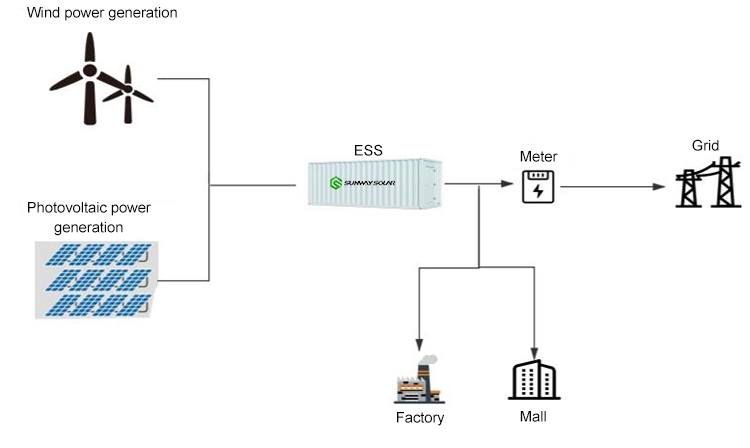

Application Scenario of Sunway Energy Storage Container Energy Storage System

1. PV station
2. Wind Grid side power station
3. Frequency regulation
4. Grid side
5. Industrial and commercial

-New-energy generation:Effectively smoothen the power output to decrease the impact to the grid
-Generate according to the plan and correct forecast errors
-Reduce the peak and fill the valley
-Grid frequency modulation with AVC and AGC functions
-Electricity of transmission and distribution
-Smart Grid - Micro-grid - Reduce the peak and fill the valley
-Military Base, smelter, chemical plant, paper mill, airport, wharf and others.

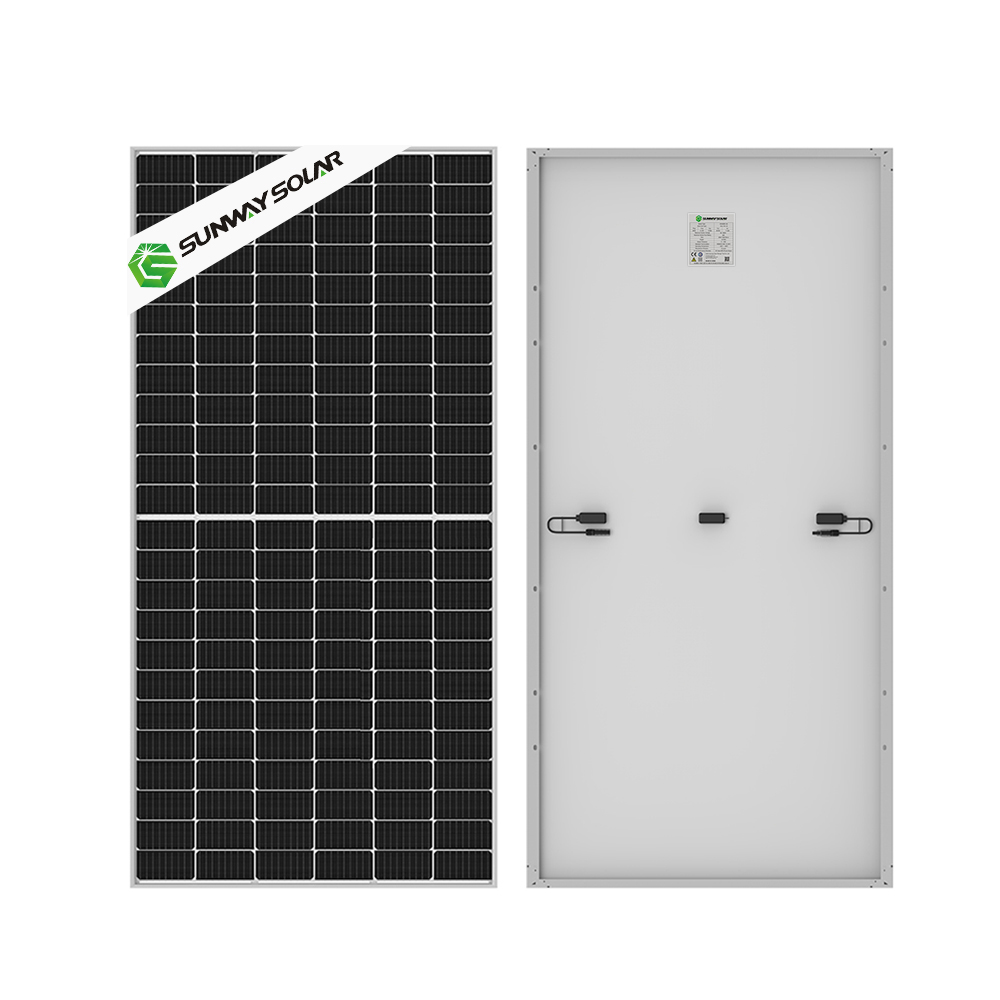

Sunway Solar Panel
Mono/Poly/Flexible/All Black Type PV Module
High Power up to 450W/550W/600W/670W Half Cut/Bifacial/Perc/Hjt Solar PV Modules

All certificates listed with more than 30years life and warranty

PID Resistant,High salt and ammonia resistance

Customized Color of Busbar/Frame/Back

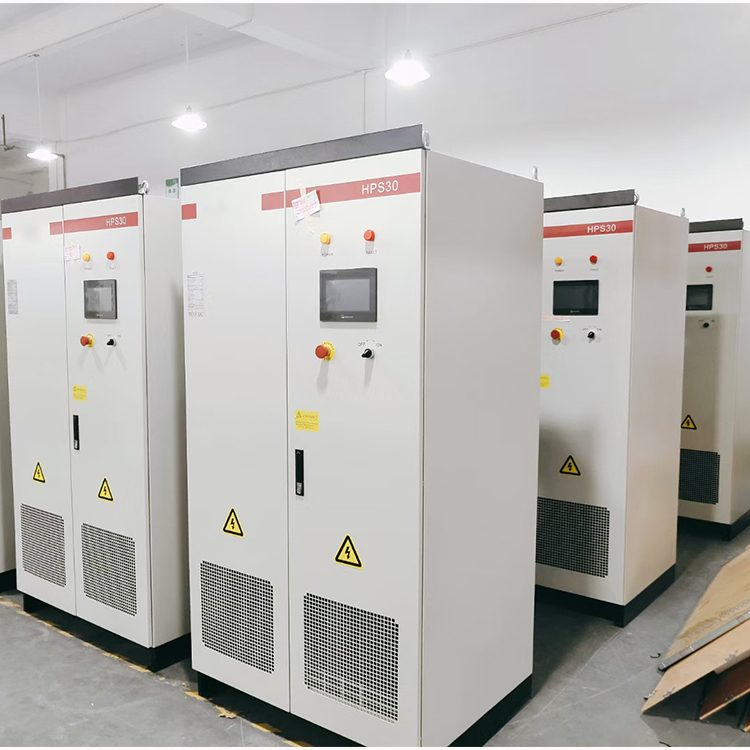

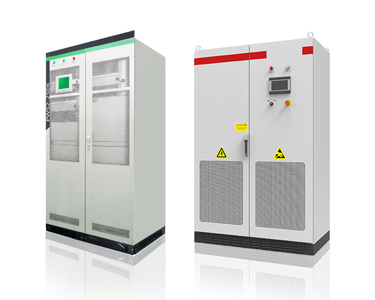

Sunway Solar Hybrid Inverter
Three - level design, low harmonic and high efficiency

Modular design, simple structure, reliable and stable

Switching to smart grid design, controllable energy scheduling, and active and reactive power regulation

Can support 4 dc input, independent control, solve the circulation problem

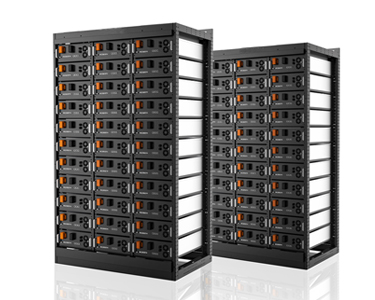

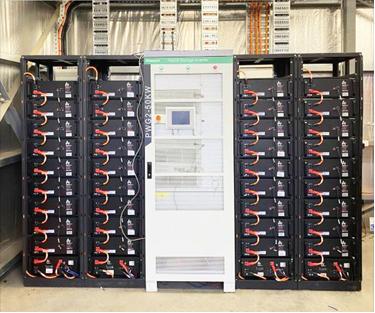

Sunway Storage Battery Bank
Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat
Marine Yachts / Electric Skateboard / Vehecle.
Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment

Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup /
Engine Starting Battery,etc.

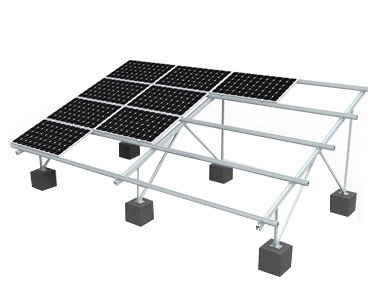

Sunway Solar Ground Bracket
Quick installation with large-scale ground photovoltaic system power station construction progress

Flexible form of adjustment to meet the complex requirements of the construction site

Refine the number of accessories to facilitate the identification of workers on site

Rust-resistance and Anti-corrosion

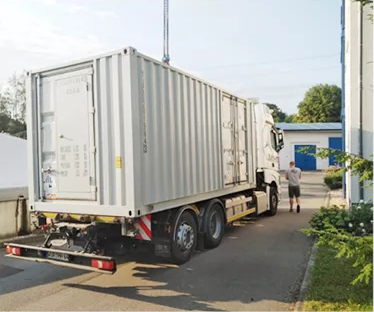

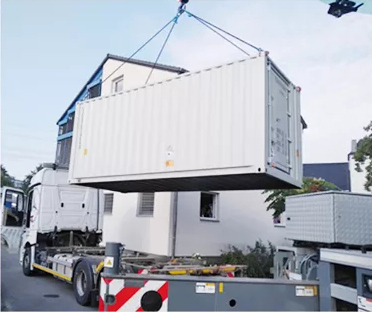

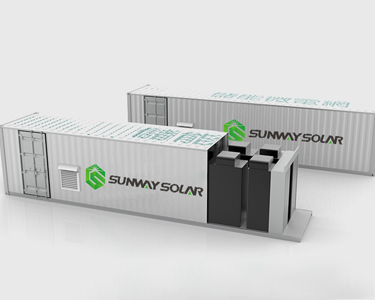

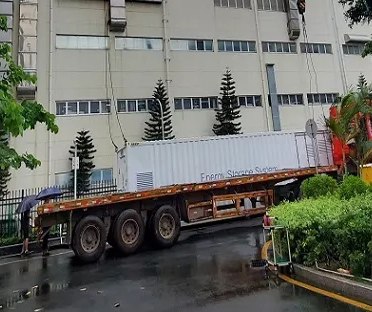

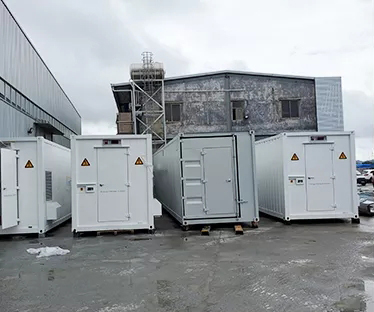

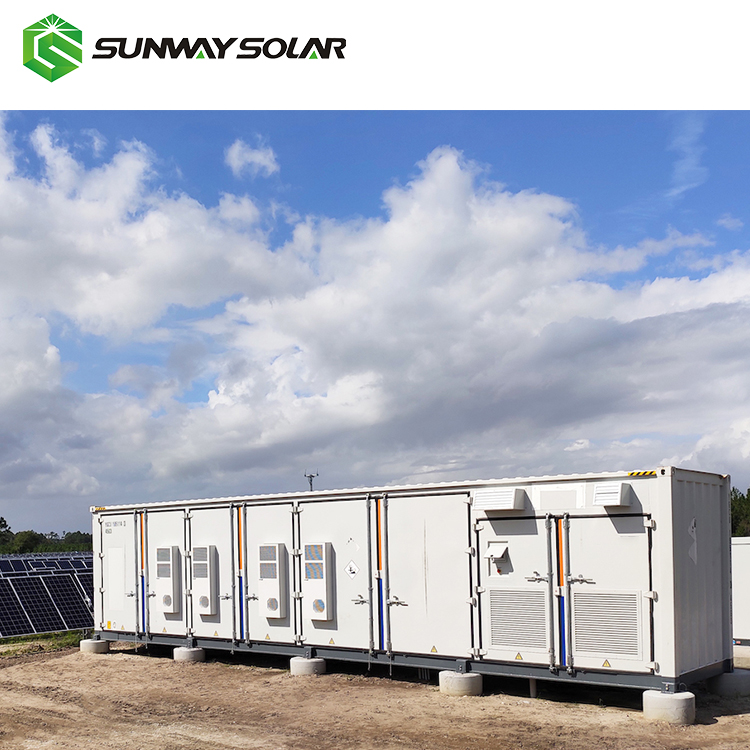

20Ft/40Ft Container

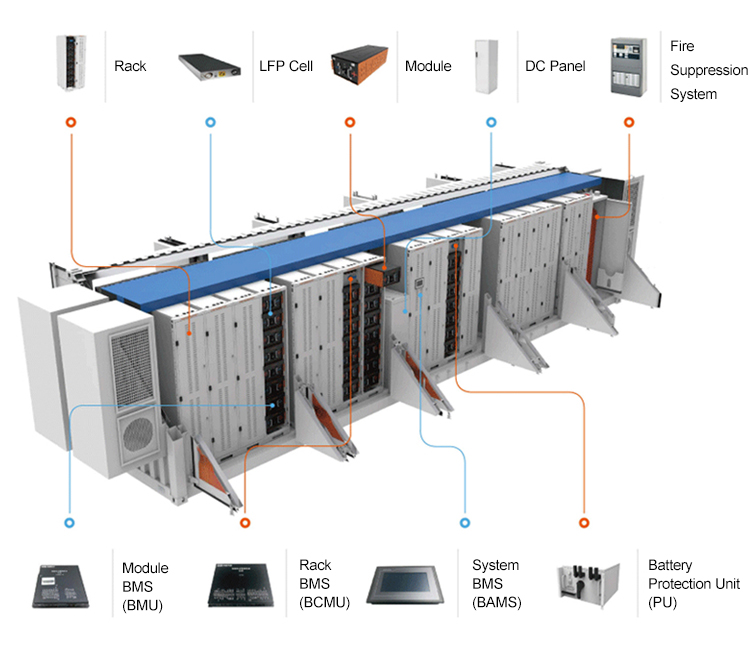

The interior of the container is divided into power distribution room and battery room

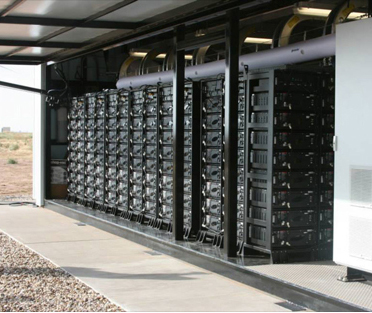

The battery room includes battery racks, fire cabinets, BMS control cabinets,Air conditioning and lighting, smoke detectors, etc

The power distribution room includes PCS inverter, transformer cabinets, EMS cabinets (including power distribution parts), fire
control, Controller, lighting, smoke, etc.
