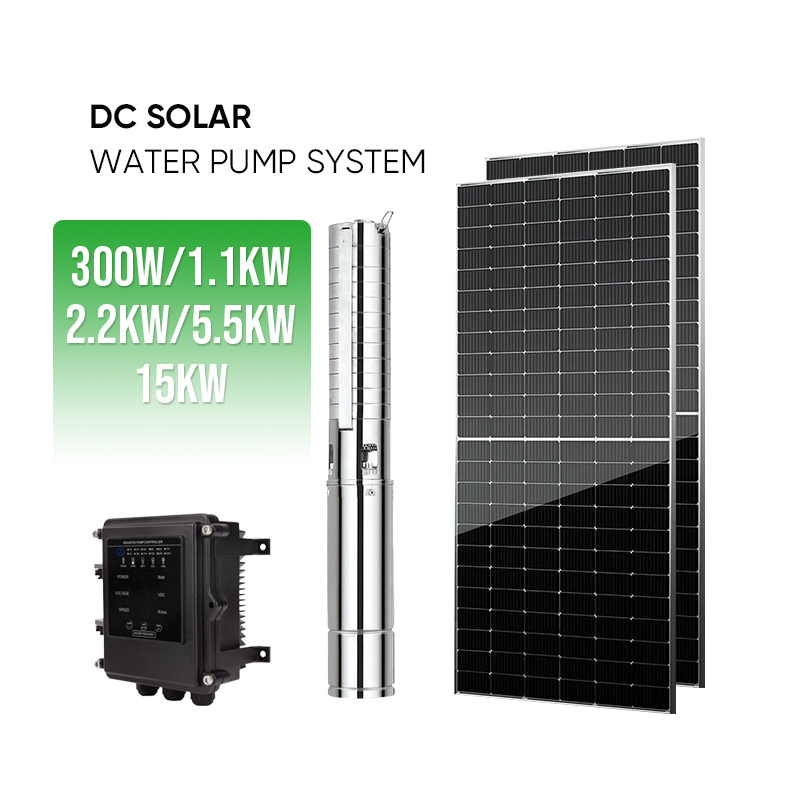

SUNWAY 300W-15KW DC Solar Water Pump System

SUNWAY 300W-15KW DC Solar Water Pump System

Category Solar Related Products

Controller Type	MPPT/32bit MCU/FOC/Sine Wave Current
OEM	OEM Services Provided
Lifespan	25YEARS
Place of Origin	China
Material	Stainless Steel

Agricultural Greenhouse Water Supply System

The system is mainly composed of solar modules, solar water pump controllers, solar water
pumps, sprinklers and conveying pipes. The system uses solar power to drive water pumps to lift
water to meet the water demand for greenhouse cultivation. And can be connected to the smart
agricultural IoT system.

Pump power classification	Water pump power	Pump Model	Solar Panel Configuration(550w/420w General）
<2.2KW	DC24V 300W	2DPC1.7-45-24-300-A/D	1pcs （series connection）
	DC110V 1.1KW	3DPC3.8-123-110-1100-A/D	3-4pcs （series connection）
	DC300V 2.2KW	4DPC13-110-300-2200-A/D	4-8pcs （series connection）
3-4KW	DC550V 5.5KW	4DPC17-175-380/550-5500-A/D	13-14pcs （series connection）
5.5-22KW	DC550V 15KW	6DSC70-160-380/550-15000-A/D	13-14pcs （series connection*2 parallel）

Solar Pump System

Sunway provides professional DC & AC type pumps with complete diameters for submersible and surface pumps.
Solar submersible pump, immersed into water, connects motor with pump directly.

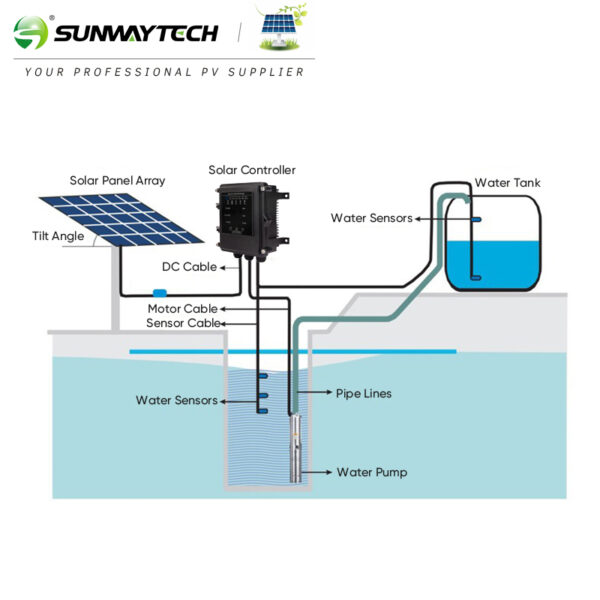

It consists of submersible pump, motor, MPPT controller, water pipe, cable, solar panels and etc. Solar panels convert solar energy into electrical energy, connecting to dedicated low-voltage solar pump. It is convenient, practical and simple. The solar pump runs automatically in the sun, while it runs continuously by battery or grid electric when little sun.
