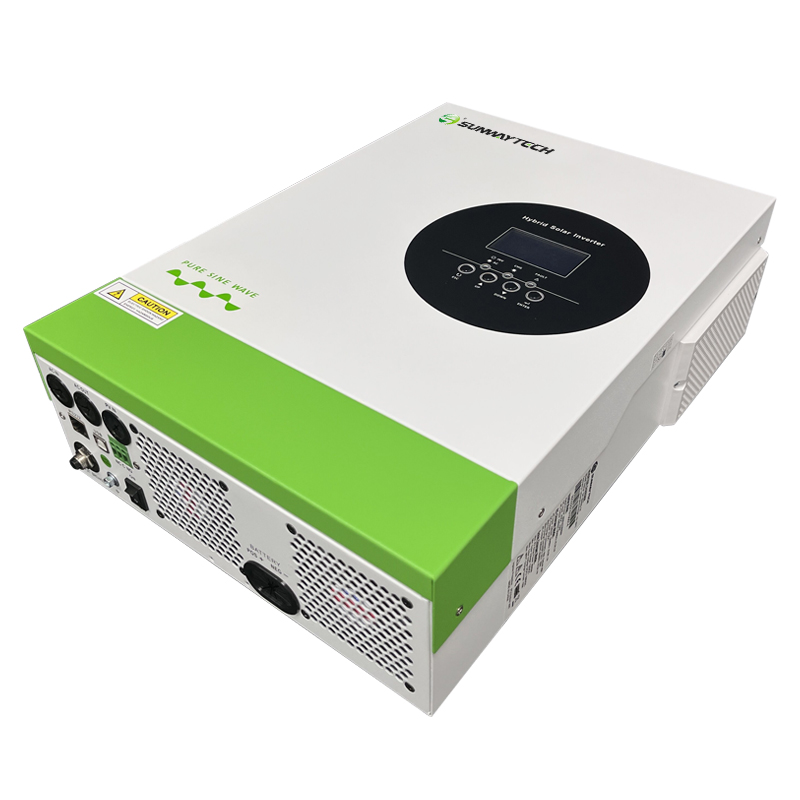

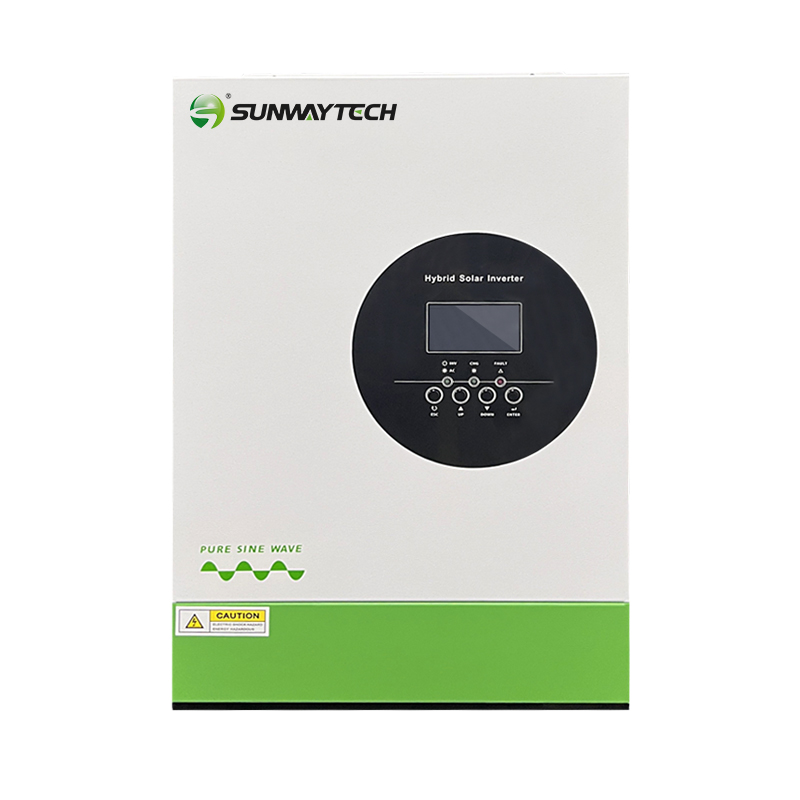

Sunway 3000w 3500w all in one 220V Single Phase Off Grid Pure Wave Solar Inverter
| Model Number: | SK-3500S-24 |
| Output power： | 3.5kw |
| Output Voltage: | 230V |
| Size: | 448*295*129mm |
| Weight: | 9KG |
|
Model
|
SK-3500S-24
|
SK-5500P-48L
|
|
Capacity
|
3500VA/3500W
|
5500VA/5500W
|
|
Battery type
|
Lead Acid
|
Lead Acid/LiFePO4
|
|

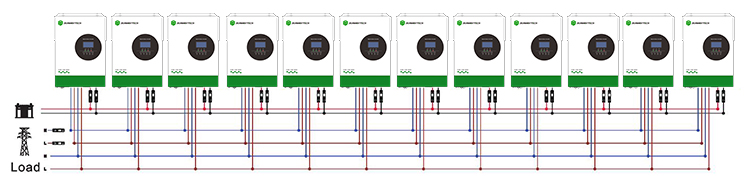

Parallel Capability
|
No
|
Yes
|
|
Input
|
||
|
Nominal Voltage
|
230VAC
|
|
|
Acceptable Voltage Range
|
170-280VAC(For personal cumputer),90-280VAC(For home appliance)
|
|
|
Frequency
|
50Hz/60Hz(Auto sensing)
|
|
|
Output
|
||
|
Nominal Voltage
|
220/230VAC±5%
|
|
|
Surge Power
|
7000VA
|
11000VA
|
|
Frequency
|
50/60Hz
|
|
|
Wave Form
|
Pure sine wave
|
|
|
Transfer Time
|
10ms(For personal computer),20ms(For home appliances)
|
|
|
Peak Efficiency(PV to INV)
|
96%
|
|
|
Peak Efficiency(Battery to INV)
|
83%
|
|
|
Overload Protection
|
5s@≥150% load; 10@110%~150% load
|
|
|
Crest Factor
|
2:1
|
|
|
Admissiable Power Factor
|
0.6~1(inductive or capacitive)
|
|
|
Battery
|
||
|
Battery Voltage
|
24VDC
|
48VDC
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
33VDC
|
63VDC
|
|
Charge Method
|
CC/CV
|
|
|
Solar Charge & AC Charge
|
||
|
Solar Charge Type
|
MPPT
|
|
|
Maximum PV Array Power
|
4000W
|
5500W
|
|
Maximum PV Array Open Circuit Vol.
|
500VDC
|
|
|
PV Array of MPPT Voltage Range
|
120VDC~450VDC
|
|
|
Maximum Solar Input Current
|
15A
|
18A
|
|
Maximum Solar Charge Current
|
100A
|
100A
|
|
Maximum AC Charge Current
|
60A
|
60A
|
|
Maximum Charge Current
|
100A
|
100A
|
|
Physical
|
||
|
Product Dimension(D*W*H mm)
|
448*295*129mm
|
|
|
Package Size(D*W*H mm)
|
540*390*217mm
|
|
|
Net Weight(kgs)
|
9KG
|
10KG
|
|
Communication Interface
|
USB/Dry-contact
|
RS485/RS232/Dry-contact
|
|
Environment
|
||
|
Operation Temperature Range
|
-10℃~55℃
|
|
|
Storage Temperature
|
-15℃~50℃
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
