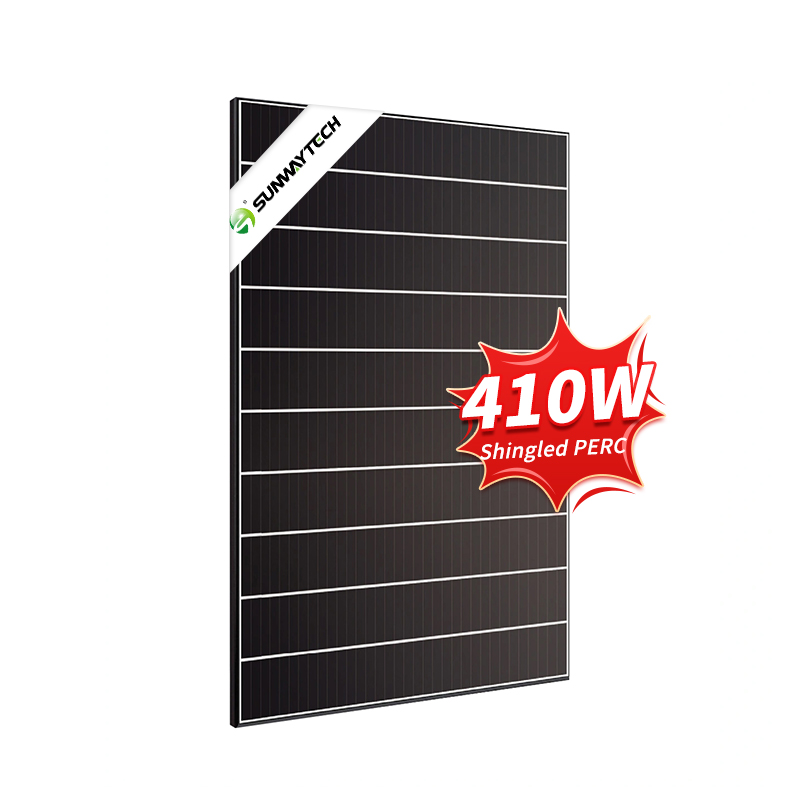

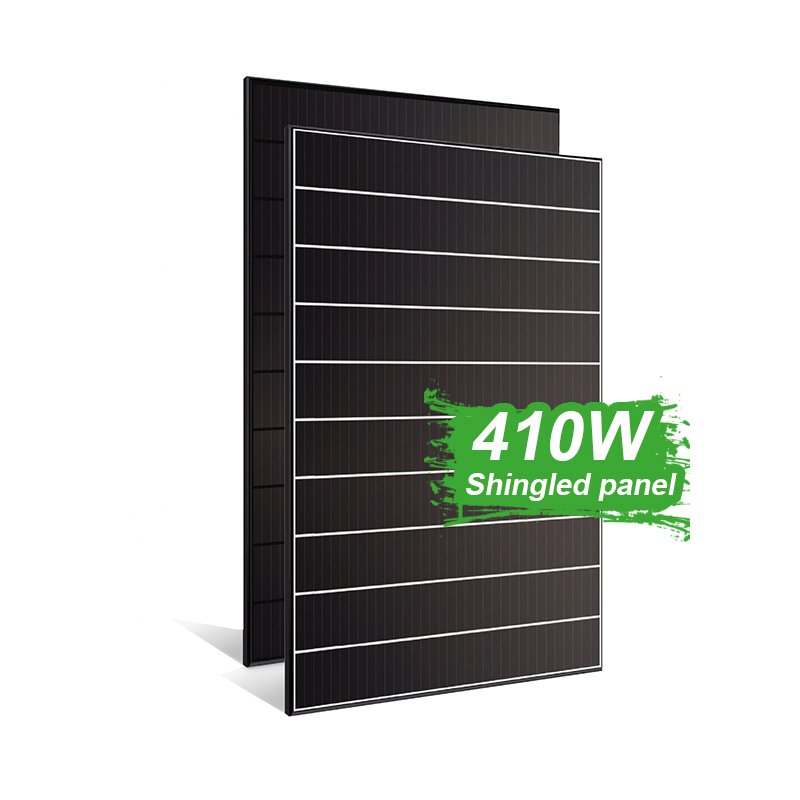

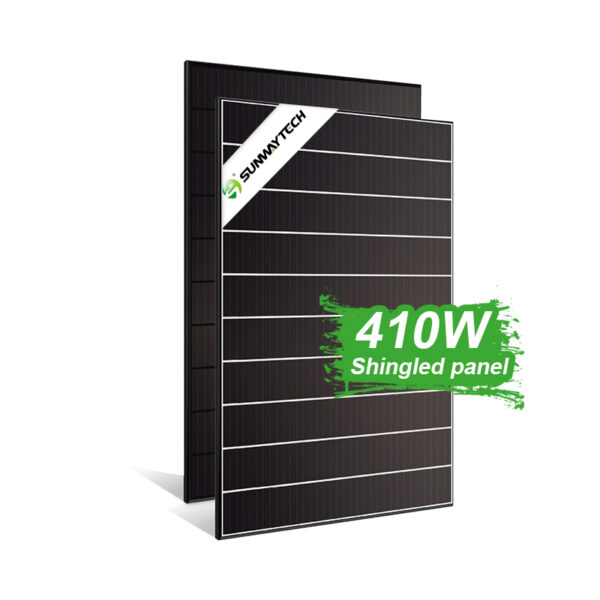

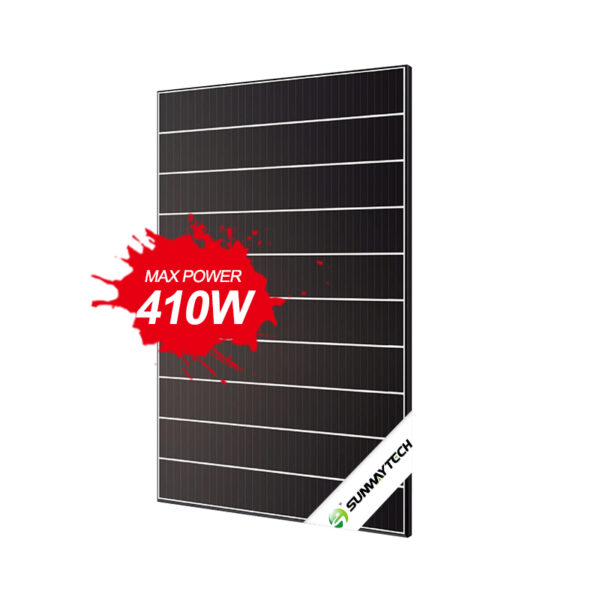

Sunway 380W 400W 410W 450W Monocrystalline Shinged Solar Panels

Sunway 380W 400W 410W 450W Monocrystalline Shinged Solar Panels

Shingled Solar Panel: Roofing Sheet Full Black Shingle 385w 390w 405w 410w Solar Panel Solar Set

Model Number: SW410M-120
Power Range: 385W-410W
Dimensions: 1719*1140*35mm
Weight: 22kg
Certificate: CE/TUV

What are shingled solar modules?

The shingle module increases the effective power generation area by more than 2% compared with conventional modules, and the number of cells that can be packaged is increased to 66 pieces compared to the 60-piece version.
Replacing the soldering strip with conductive adhesive avoids the shielding area of the soldering strip to reach 4%.
Such shingle technology has also become one of the current mainstream packaging technologies for high-efficiency modules.
Electrical Characteristics at Standard Test Conditions(STC)
Module type:SW410PM5-60SB
385
390
395
400
405
410
Maximum power-Pm(W)
385
390
395
400
405
410
Open circuit voltage-Voc(V)
46.2
46.3
46.3
46.4
46.5
46.6
Short circuit current-Isc(A)
10.82
10.87
10.92
10.97
11.02
11.07
Maximum power voltage-Vm(V)
38.4
38.5
38.5
38.6
38.7
38.8
Maximum power current-Im(A)
10.03
10.13
10.26
10.36
10.47
10.57
Module efficiency(%)
19.6
19.9
20.2
20.4
20.7
20.9
Electrical Characteristics at NMOT
Maximum power-Pm(W)
290
294
297
301
305
309
Open circuit voltage-Voc(V)
44.0
44.1
44.1
44.2
44.3
44.4
Short circuit current Isc(A)
8.37
8.77
8.81
8.85
8.89
8.93
Maximum power voltage-Vm(V)
36.6
36.7
36.7
36.8
36.9
37.0
Maximum power current-Im(A)
7.92
8.00
8.10
8.18
8.27
8.35
*STC:Irradiation 1000W/㎡;AM1.5;ambient temperature 25℃ according to EN 60904-3;
*NMOT:irradiation 800W/㎡;wind speed 1m/s;ambient temperature 20℃;
*Tolerance of Pm:0~+5W;Measuring uncertainty of power: ±3%.Performance deviation of Voc(V),Isc(A),Vm(V) and Im(A):±3%

Shingled Module Technology

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Shingled Solar Panel Details



PERC mono solar cells

1.Shingled components of the same area can be packed into more cells
2.Reduce power loss and hot spots caused by shading

Glass

1.Ture clear low iron glass
2.Translucency of normal luminance is increased 2%
3.Module efficiency is increased 2%


Frame

1.Silvery and black
2. Thickness 30/35/40/45/50mm

Humanized design

1.Prevent the aluminum frame from scratching the hand
2.Using the rain to clean dirt remaining on the solar module

Junction box

1.Quality diode ensures module running safety
2. IP68 protection level
3. Long service life

Back sheet

1.Low moisture permeability against snail trail defect
2.Excellent electric insulation for high system voltage up to 1500v
3.Outstanding weatherproof performance

Shingled Solar Panel Factory


Shingled Solar Panel Project
