Nominal Capacity (AH)
|
102/204/280AH |
| Capacity | 5/10/15KWH |
| Battery Rated Voltage | 51.2V |
| Design Life | 10 years+ |
| Certification |
CE/IEC/UN38.3/MSDS
|
>>MAIN FEATURES>>MAIN FEATURES

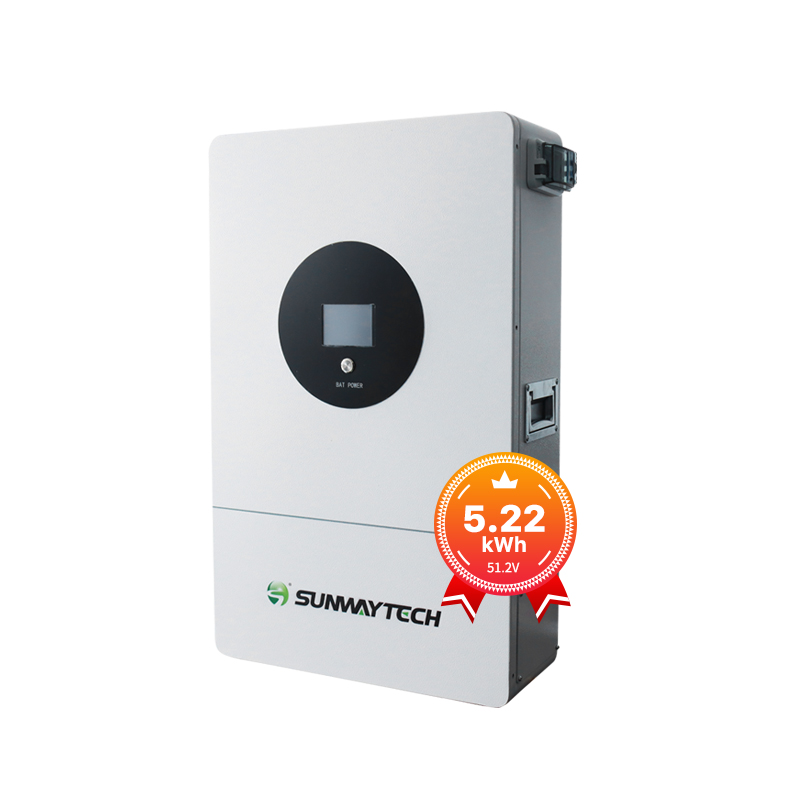

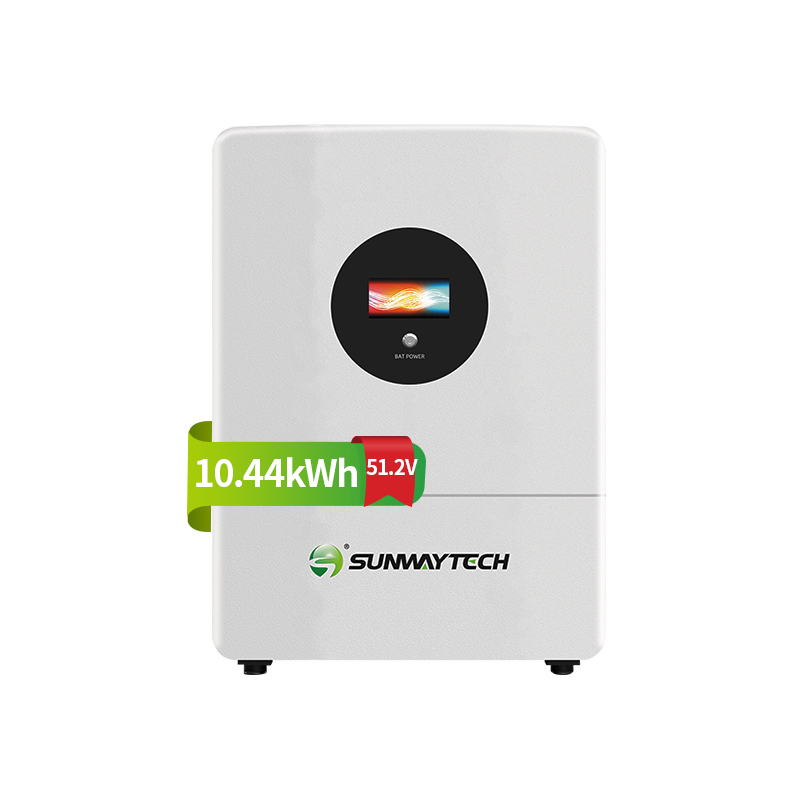

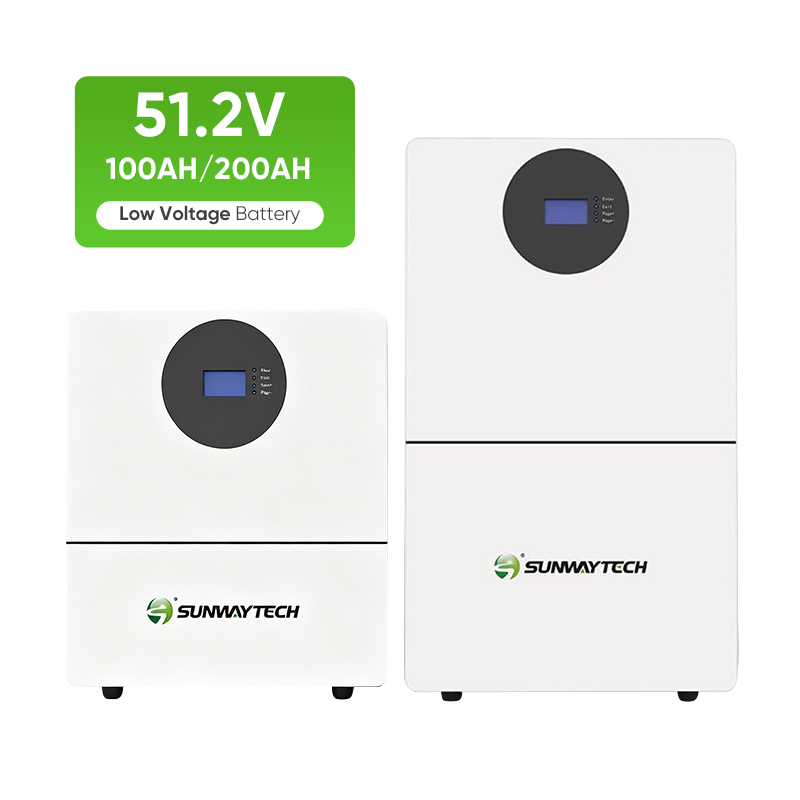

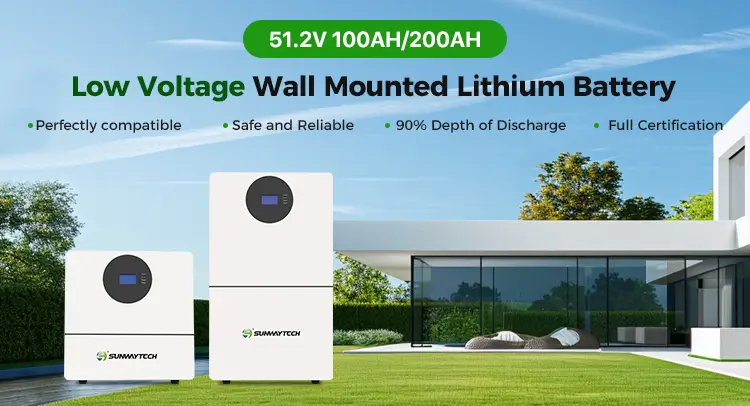

| Models | SW51B100TW2 | SW51B200TW2 |
| Usable Capacity | 5.22kWh | 10.44kWh |
| Normal Capacity | 102Ah | 204Ah |
| Voltage | 51.2V | 51.2V |
| Discharge Voltage Range | 43.2V~58.4V | 43.2V~57.6V |
| Max.Charging/Discharging Current | 75A | 100A |
| Max.Output Power | 3840W | 5120W |
| Rated Output Power | ||
| DOD | 0.9 | |
| Modules Connection | 1-32 inparalle | 1-8 inparallel |
| Communication | CAN/RS485 | |
| Cycle Life | ≥6000 | |
| Working Temp.Range | Charge: 0℃~+55℃; | Charge: 0°C~+55°C; |
| Discharge: -10℃~+55℃ | Discharge: -10°C~+55°C | |
| Storage Temperature | -10℃~+35℃ | -10°C~+35°C |
| Net Weight | 48.5kg | 94kg |
| Gross Weight | 52.5kg | 125kg |

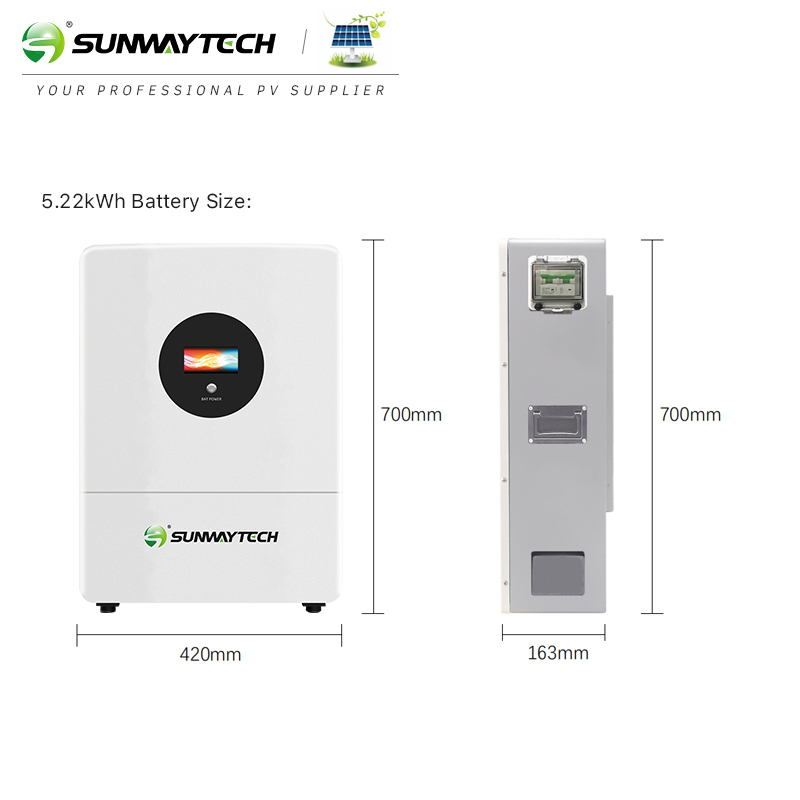

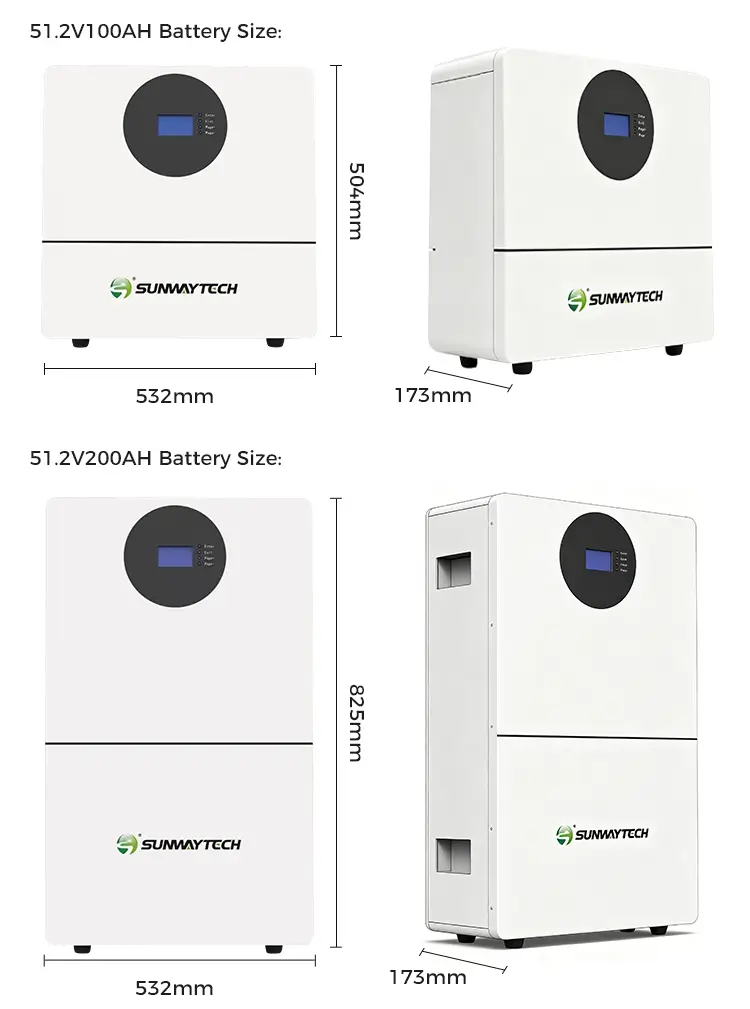

| Product Dimension | 420*163*700mm | 850*570*203mm |
| Design Life | 10years | |
| Features | HD touch screen,active balance | |

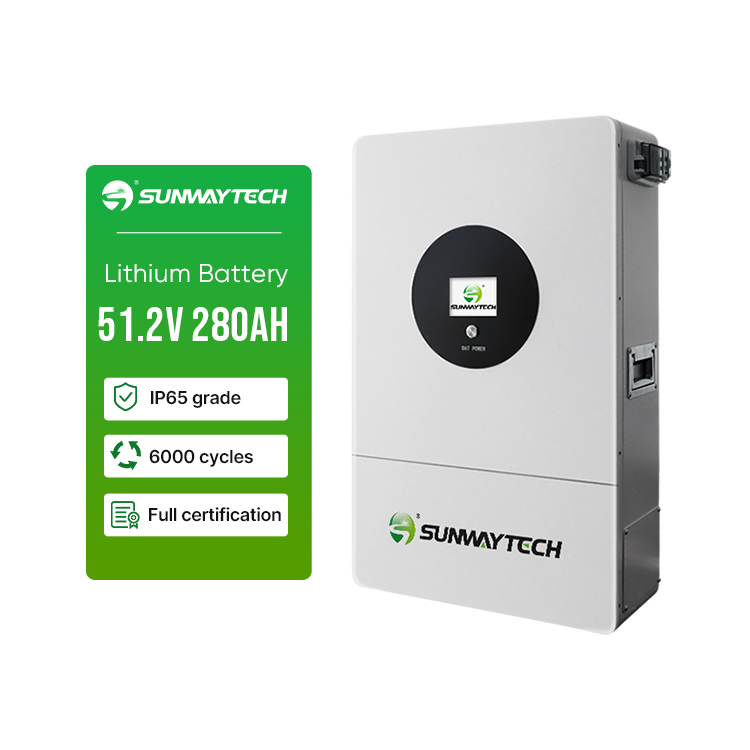

| Models | SW51B300TW2 |
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (AH) | 280AH |
| Nominal Capacity (WH) | 14336WH |
| Usable Capacity (WH) | 12902.4WH |
| Discharge Voltage (V) | 48.5V |
| Charge Voltage (V) | 55V |
| Recommend Charge/ Discharge Current (A) | 140A |
| Max. Charge/ Discharge Current(A) | 200A |
| Communication | RS485/CAN |
| Working Temperature | -20℃-70℃(25℃℃) |
| Storage Temperature | -40℃~85℃(25℃℃) |
| Humidity | 10%-85% |
| Certification | CE/ IEC/ UN38.3/ MSDS |
| Design Life | 10 years+ |
| Cycle Life | >6000@90%DOD |
| Dimension | 650*450*250mm |
| Weight(Kg) | 115Kg |
