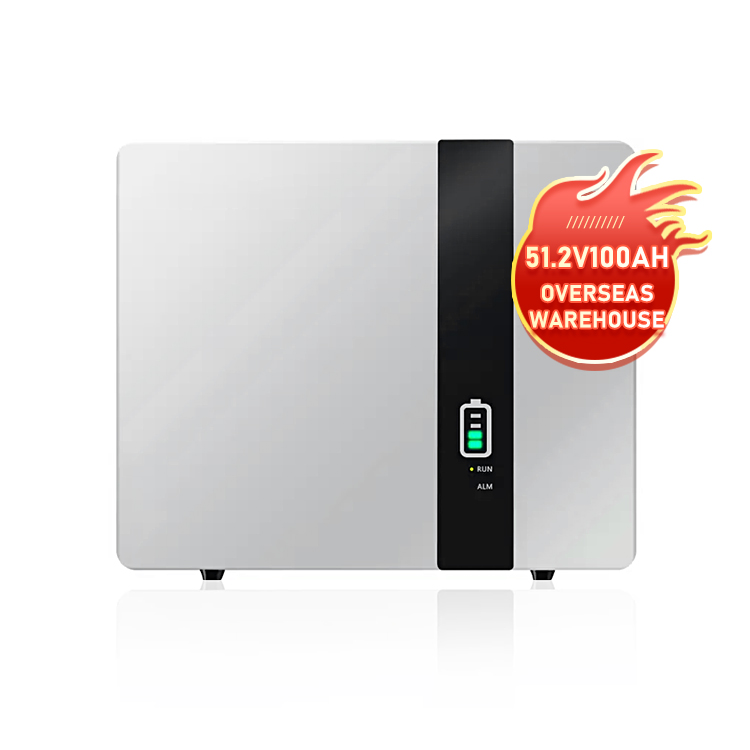

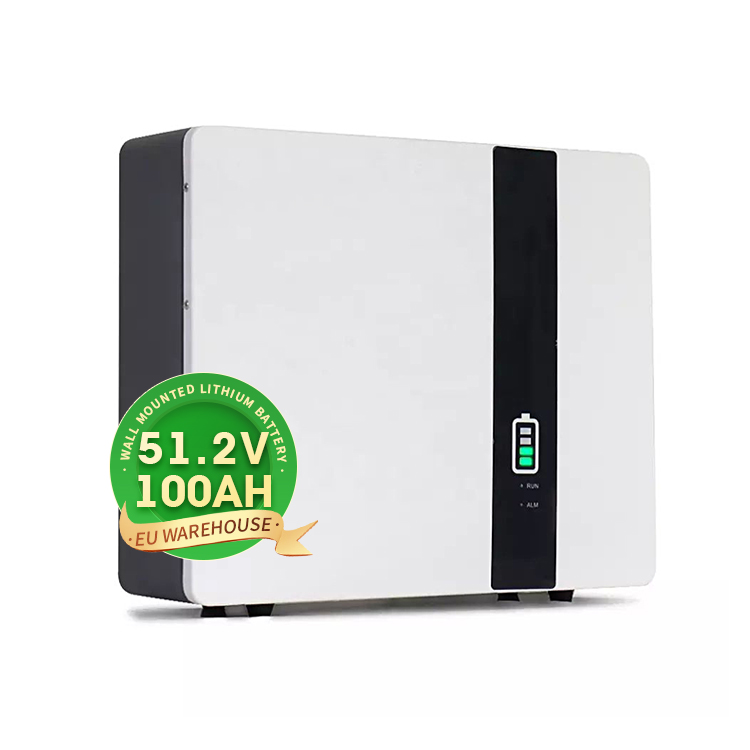

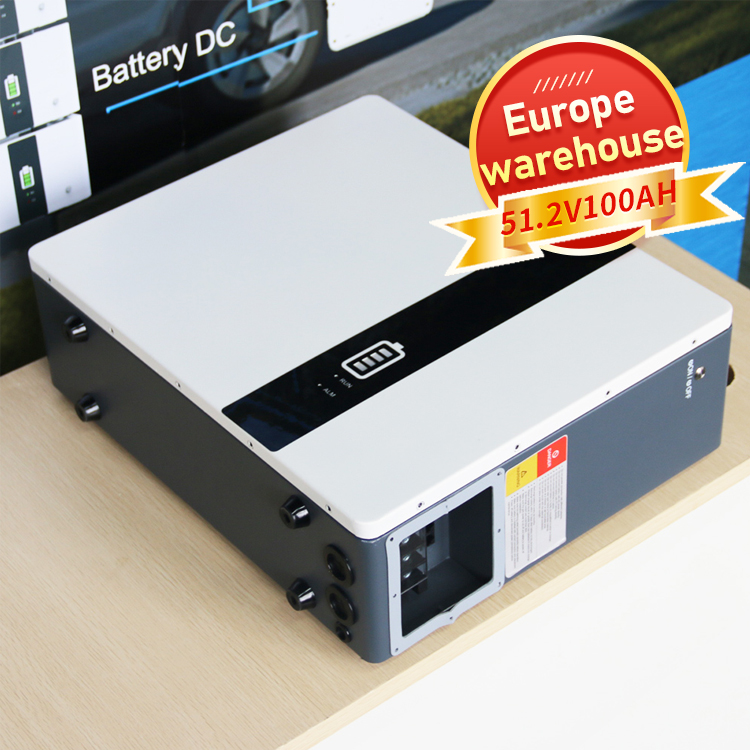

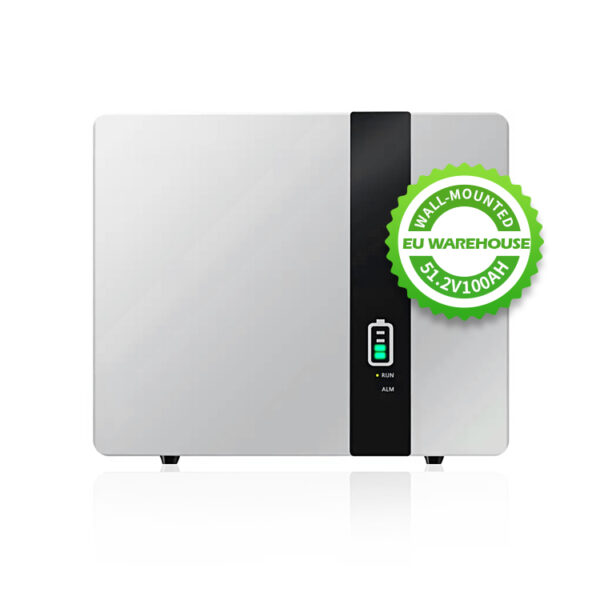

Sunway 51.2V 100Ah 5Kwh European Warehouse Wall Mounted Lithium Battery

Features of Sunway Solar Home Battery Storage Solution

1. Adopting the latest Latest LifePo4 prismatic cell technology
2. Warranted throughout of 10MWh per 1kWh of stored capacity
3. 1C Discharge rate and 0.5C Charge rate
4. 158Wh per Kg+/-5% for cells
5. 2.6kWh 5kWh 10kWh optional
6. 5000 cycles @25℃ 0.7C conditions
7. Plug and Play functionality
8. Multiple BMS functionality allowing greater control and monitor
9. Scalable Battery Packs
10.Wall mounted and Ground type selectable
11.Multiple Energy Capacity options
12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc.,
13.Wall mounted lithium battery is mainly for home energy stoarge solutions.

Residential Solar & Storage Solution

Hybrid Inverter + Lithium ion Battery

(3.6KW/5KW Hybrid Inverter+5kWh Wall Mounted Lithium Battery)

Mode Capacity	LFPWall 2500	LFPWall 5000	LFPWall 10K
Energy Capacity	2.56kWh	5.12kWh	10.24kWh
Nominal Voltage(V)	51.2V
Operation Voltage(V)	43.2V-58.4V
Ah Capacity	50Ah	100Ah	200Ah
Suggested SOC	10% ~ 100%
Usable Energy	2.3kWh	4.6kWh	9.21kWh
Nominal Voltage	51.2V, 48V optional
Operation Voltage	44.8V ~ 57.6V
Maximum Charge/Discharge Current	35A	70A	100A
BMS	Yes, intelligent monitoring and protection BMS per install
Scalable (Parallel Function)	Yes
Cycle Life	≥ 6000
Warranty BTT	Standard 5 year, 10 years optional 10MWh per kWh BTT (battery total throughput)
Operation Temperature	Charge 0℃ ~ 45℃ ， Discharge -20℃ ~ 45℃
Storage Temperature	-20℃ ~ 45℃
Net Weight	30kg	52kg	96kg
Dimensions	537*365*196mm	542*468*197mm	694*581*219mm
Certifications	MSDS, UN38.3, CE, RoHS
IP Grade	IP65
Communications	RS485, CAN, RS232, BMS has been compiatble with most of hybrid inverter brands in market
More options	Nominal 48V or 51.2V options Fire suppression per install Heating system per install OEM & ODM support
Note	LFPWall 2500, 2.6kWh (51.2V) 2.4kWh (48V) LFPWall 5000, 5.12kWh (51.2V) 4.8kWh (48V) LFPWall 10K, 10.24kWh (51.2V) 9.6kWh (48V)
