Certification
|
CE/IEC/UN38.3/MSDS
|
|
Dimension
|
650*450*250mm
|
|
Weight(Kg)
|
115Kg
|
| Nominal Voltage (V) | 51.2V |
|
Nominal Capaaity (AH)
|
280AH
|

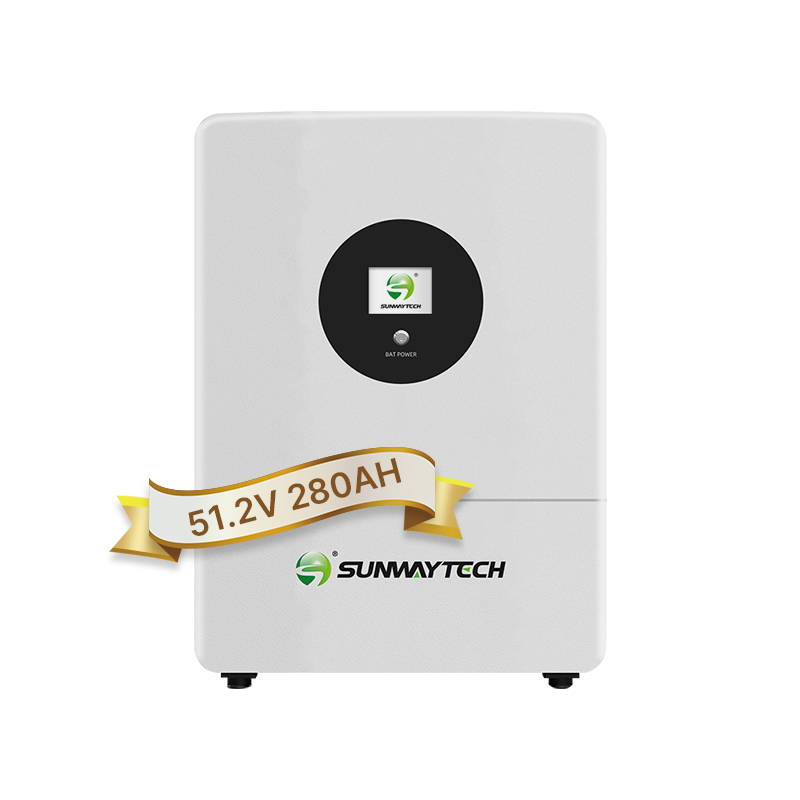

51.2V 280AH 14.33KWH LITHIUM BATTERY
Lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of lithium batteries according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space long power backup time and long service life.
| Nominal Voltage (V) | 51.2V |
|
Nominal Capaaity (AH)
|
280AH
|
|
Nominal Capacity (WH)
|
14336WH
|
|
Usable Capacity (WH)
|
12902.4WH
|
|
Discharge Voltage (V)
|
48.5V
|
|
Charge Voltage (V)
|
55V
|
|
Recommend Charge/Discharge Current (A)
|
140A
|
|
Max.Charge/Discharge Cument(A)
|
200A
|
|
Communication
|
RS485/CAN
|
|
Working Temperature
|
-20℃~70℃(25℃)
|
|
Storage Temperature
|
-40℃~85℃(25℃)
|
|
Humidity
|
10%-85%
|
|
Certification
|
CE/IEC/UN38.3/MSDS
|
|
Design Life
|
10 years+
|
|
Cycle Life
|
>6000@90%DOD
|
|
Dimension
|
650*450*250mm
|
|
Weight(Kg)
|
115Kg
|
Product Features
* The whole module is non-toxic, non-polluting and environmentally friendly
* Safety performance and long cycle life
* Battery management system with better performance, possesses protection functions like over-discharge, over-charge, over-current, abnormal temperature
* Self-management on charging and discharging, Single core balancing function.
* Intelligent design configures integrated inspection module
* Flexible configurations allow parallel of multi-battery for longer standby time
* Less battery self-discharge, then recharging period can be up to 10 months during the storage.
