china supplier 51.2V 55Ah 150Ah 2.8Kwh 7.6Kwh high energy lto lithium titanate lifepo4 battery
| Model Number: | Ground ECO2800 |
| Capacity： | 2.8kWH |
| Battery Rated Voltage: | 51.2V |
| Dimensions（mm）: | 480*280*210 |
| Weight（kg）: | 30 |

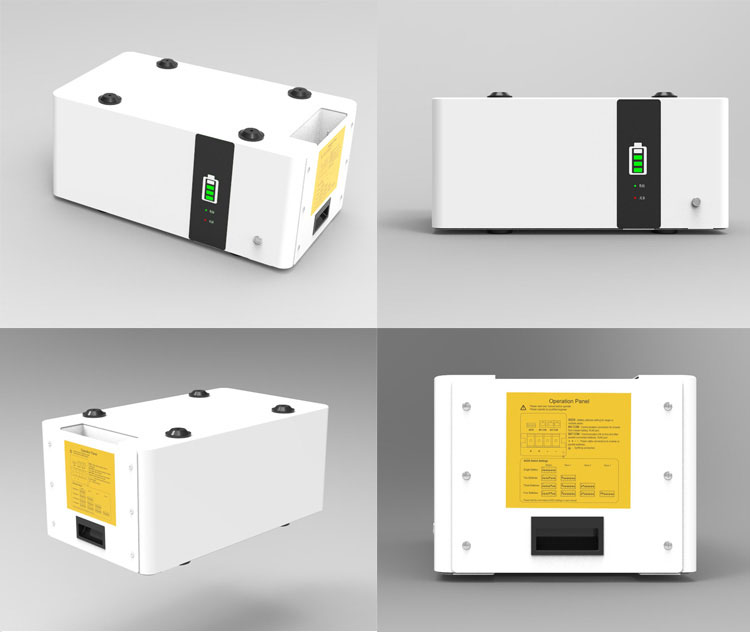

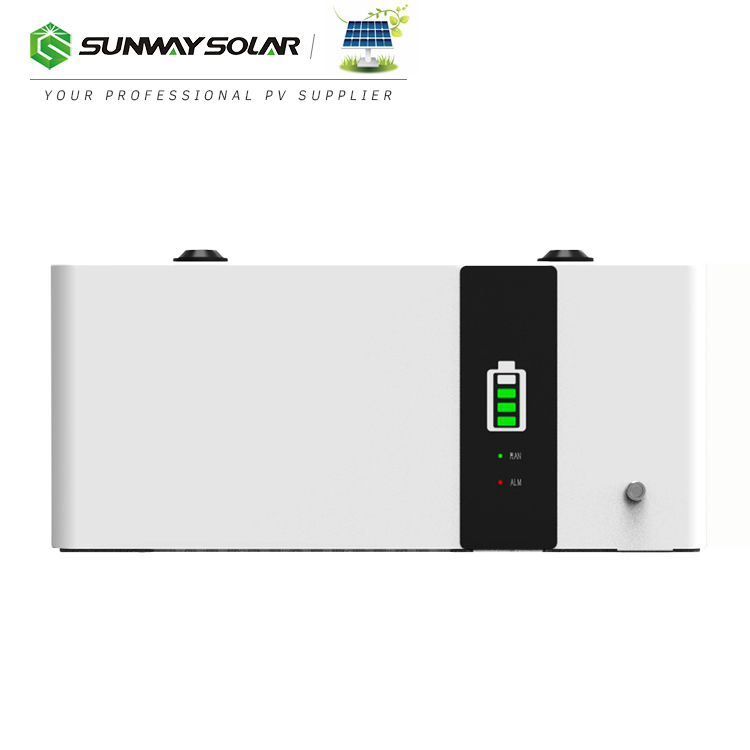

Sunway Ground Eco battery is a Ground mounted lithium battery pack which consists of long life-span LiFePO4 battery cells and functional BMS. It can store and release electric energy based on the requirements of the inverter controller. It is mainly for home energy storage system.
Features of Sunway Ground Eco Lithium Solar Battery
1. Advanced LiFePO4 battery cells
2. 6000 cycles @25℃ 0.7C conditions
3. Growatt, Goodwe, Deye, Luxpower, Megarevo etc hybrid inverters BMS compatible
4. Wall Mounted Similar Powerwall
5. 2.8kWh 5.6kWh 7.68kWh 11.2kWh optional
6. 51.2V Nominal Voltage
7. Outdoor Ground IP54 Grade
8. Maximum 1C charge and discharge capability

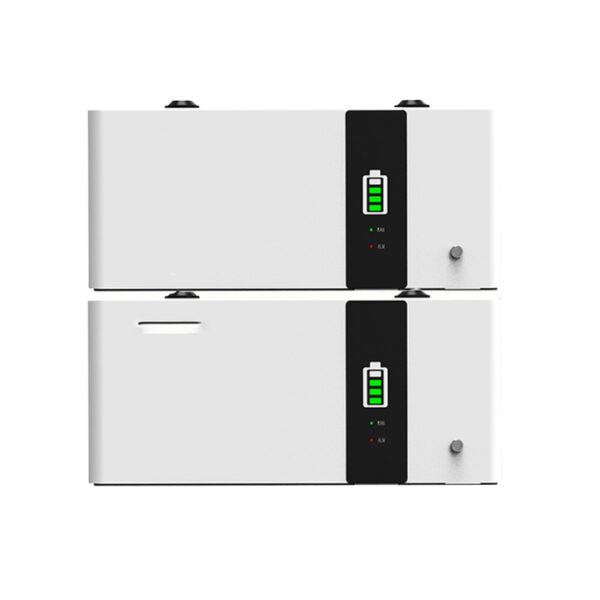

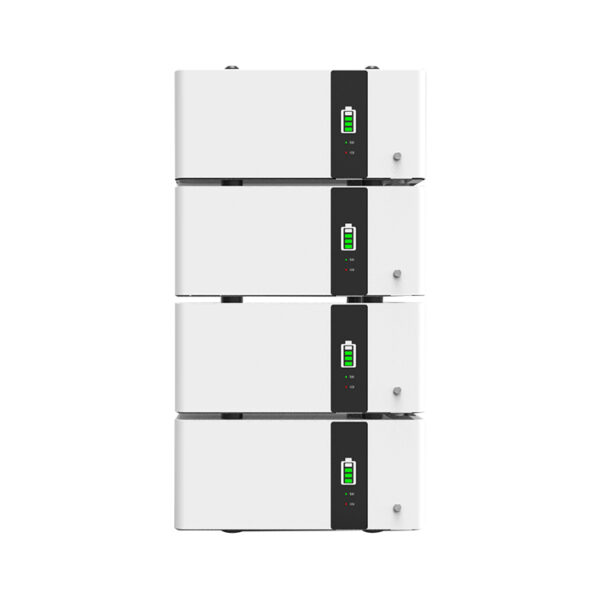

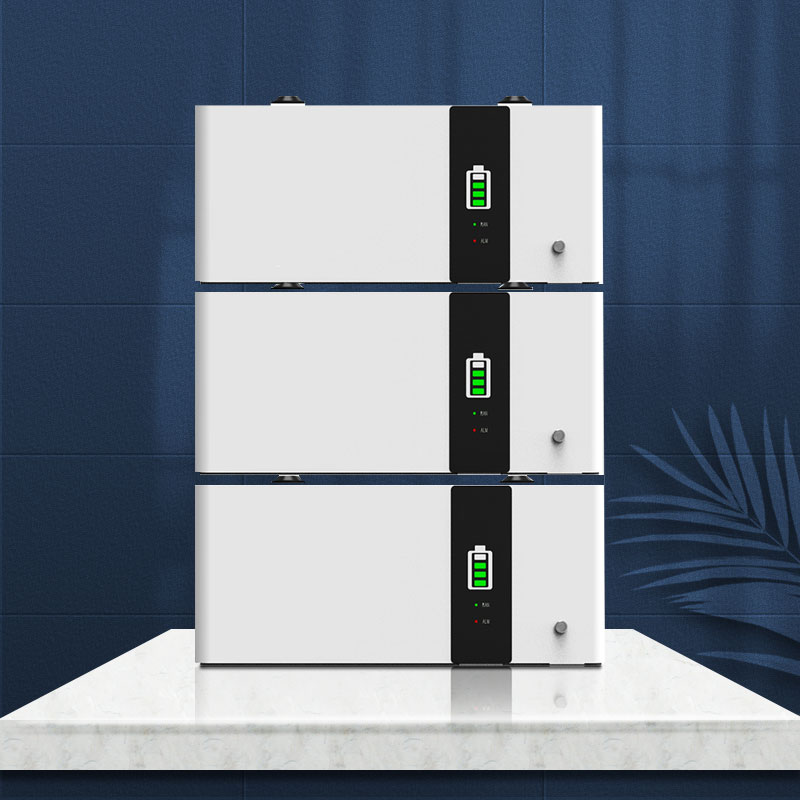

9. Scalable up to maximum 15 packs
Residential Solar & Storage Solution
Hybrid Inverter + Lithium ion Battery
(3.6KW/5KW Hybrid Inverter+7.6kWh Stacked Lithium LifePo4 Battery)
Sunway Ground Eco lithium battery is mainly for home energy stoarge solutions. The BMS has been compatible with most famous inverter brands in market, such as Growatt, Goodwe, Megarevo, Luxpower, Deye hybrid inverters.
|
SPECIFICATIONS
|
||
|
Model
|
Gound Eco-2800
|
Gound Eco-10K
|
|
Capacity Energy
|
2.8kWh
|
11.2kWh
|
|
Capacity Ah
|
55Ah
|
220Ah
|
|
Suggested SOC
|
10-100%
|
|
|
Usable Capacity
|
2.6kWh
|
10.4kWh
|
|
Normal Voltage
|
51.2V
|
|
|
Operation Voltage
|
44.8V 〜57.6V
|
|
|
Maximum Charqinq
/Discharging Current
|
35A/50A
|
100A/100A per stack
|
|
BMS
|
Parrallel function,single cell voltage and temperature
measurement,protections,display optional,heating function optional
|
|
|
Communication
|
CAN,RS485
|
|
|
Scalable
|
Yes, maximum 15 packs
|
|
|
Design Lifespan
|
More than 10 years
|
|
|
Operation Temperature
|
-20°C 〜45°C
|
|
|
Weight
|
30kg
|
120kg
|
|
Dimensions
|
480*280*210mm
|
480*280*900mm
|
|
Certifications
|
MSDS,UN38.3,RoHS,IEC62619JUL,CE
|
|
|
IP Grade
|
IP54
|
|
