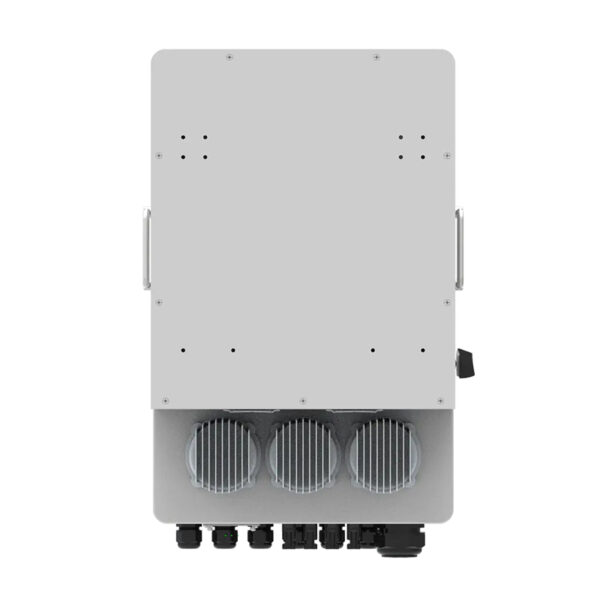

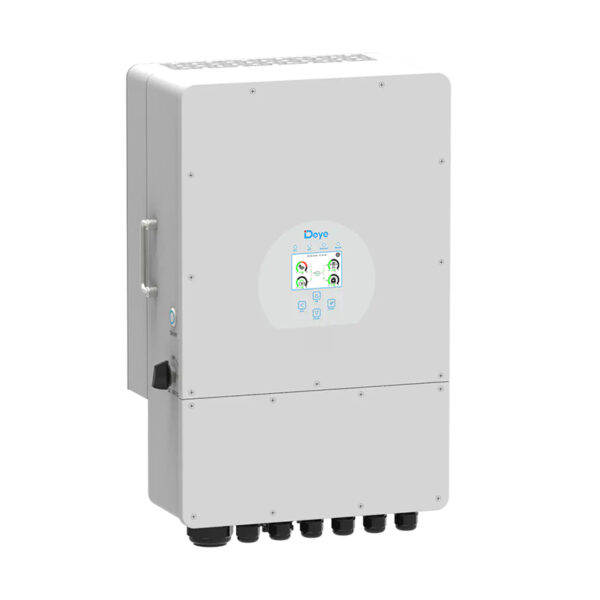

Deye SUN-5/6/8/10/12K-SG04LP3 5-12Kw Three Phase Hybrid Solar Inverter

Deye SUN-5/6/8/10/12K-SG04LP3 5-12Kw Three Phase Hybrid Solar Inverter

Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)

Model Number:	SUN-5/6/8/10/12K-SG04LP3
Output power：	5-12KW
Output Voltage:	Single Phase 230V,3 Phase 480V
Size:	422 x 658 x 254mm
Weight:	38kg

Hybrid Inverter

SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

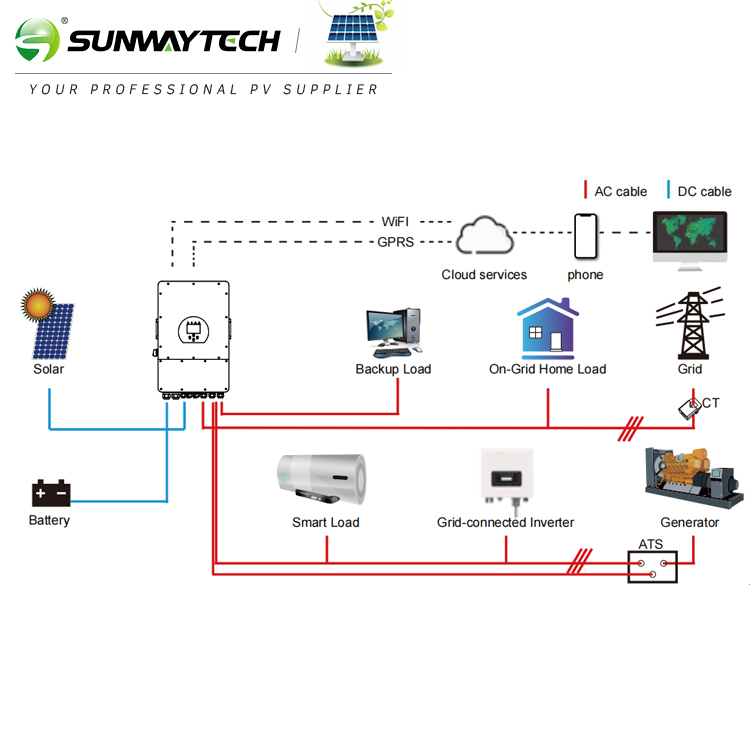

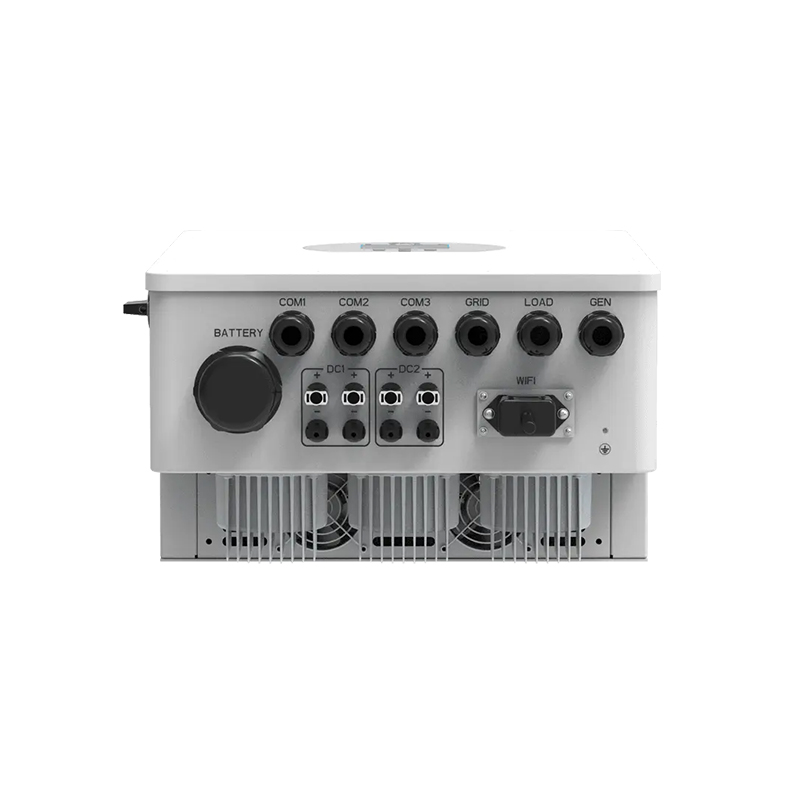

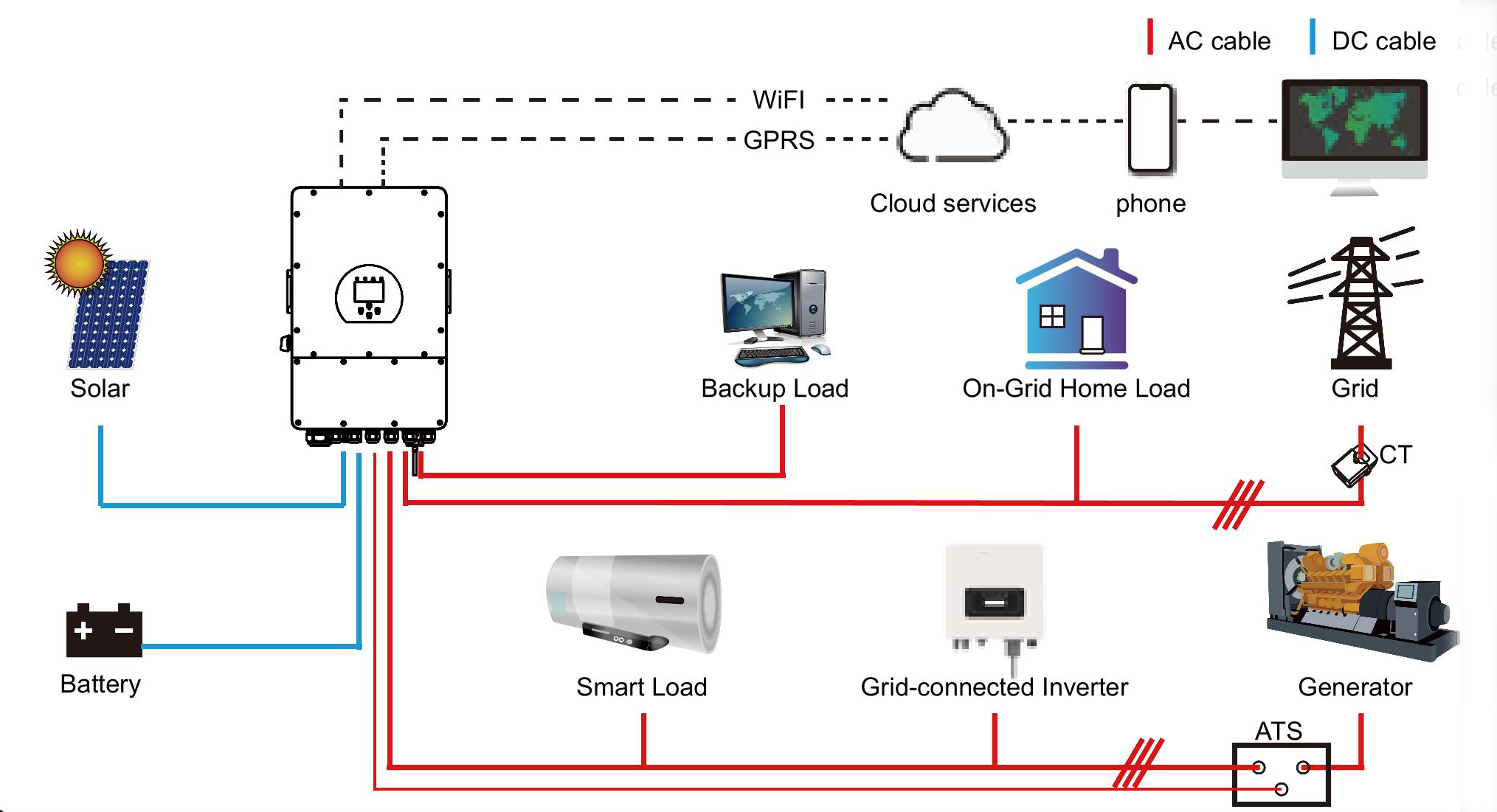

SUN 5/6/8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

①②③ DC Breaker for battery

SUN 5K-SG-EU: 150A DC breaker
SUN 6K-SG-EU: 200A DC breaker
SUN 8K-SG-EU: 250A DC breaker
SUN 10K-SG-EU:300A DC breaker
SUN 12K-SG-EU:300A DC breaker

④⑥⑧ AC Breaker for grid port

SUN 5K-SG-EU: 63A AC breaker
SUN 6K-SG-EU: 63A AC breaker
SUN 8K-SG-EU: 63A AC breaker
SUN 10K-SG-EU:63A AC breaker
SUN 12K-SG-EU:63A AC breaker

⑤⑦⑨ AC Breaker for backup load

SUN 5K-SG-EU: 16A AC breaker
SUN 6K-SG-EU: 16A AC breaker
SUN 8K-SG-EU: 20A AC breaker
SUN 10K-SG-EU:32A AC breaker
SUN 12K-SG-EU:32A AC breaker

Model	SUN-5K -SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40~60V
Max. Charging Current (A)	120	150	190	210	240
Max. Discharging Current (A)	120	150	190	210	240
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	10000	12000	16000	20000	24000
Max PV Input Power（W）	6500	7800	10400	13000	15600
Max PV Input Voltage（V）	800
MPPT Voltage Range（V）	200V-650V
Start-up Voltage (V)	160V
Rated PV Input Voltage(V)	550
Max. Operating PV Input Current (A)	13+13			26+13
Max. Input Short-Circuit Current (A)	17+17			34+17
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1			2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）	5000	6000	8000	10000	12000
Max AC Input/Output Apparent Power （VA）	5500	6600	8800	11000	13200
Peak Power (off grid)	2 times of rated power, 10 S
Rated AC Input/Output Current（A）	7.6/7.2	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4
Max AC Input/Output Current（A）	8.4/8	10/9.6	13.4/12.8	16.7/15.9	20/19.1
Max Continuous AC Passthrough (grid to load)（A）	45
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Certififications and Standards
Grid Regulation	IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC/Standard	IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃)	-40~60℃, >45℃ derating
Cooling	Smart cooling
Noise (dB)	<=45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W×702H×281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5years
