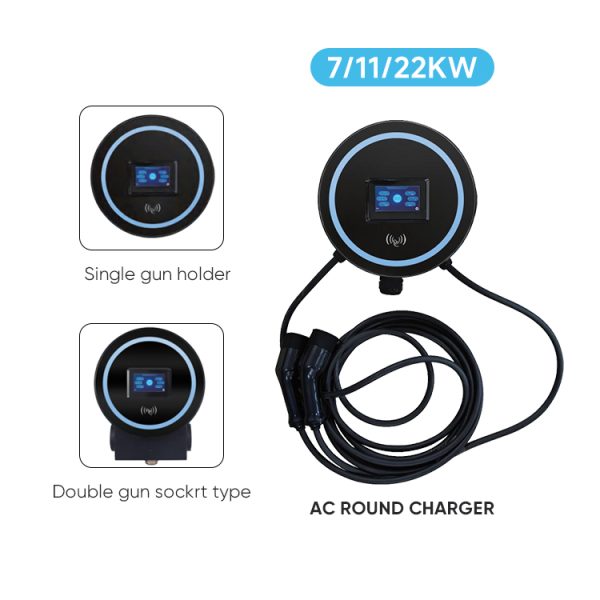

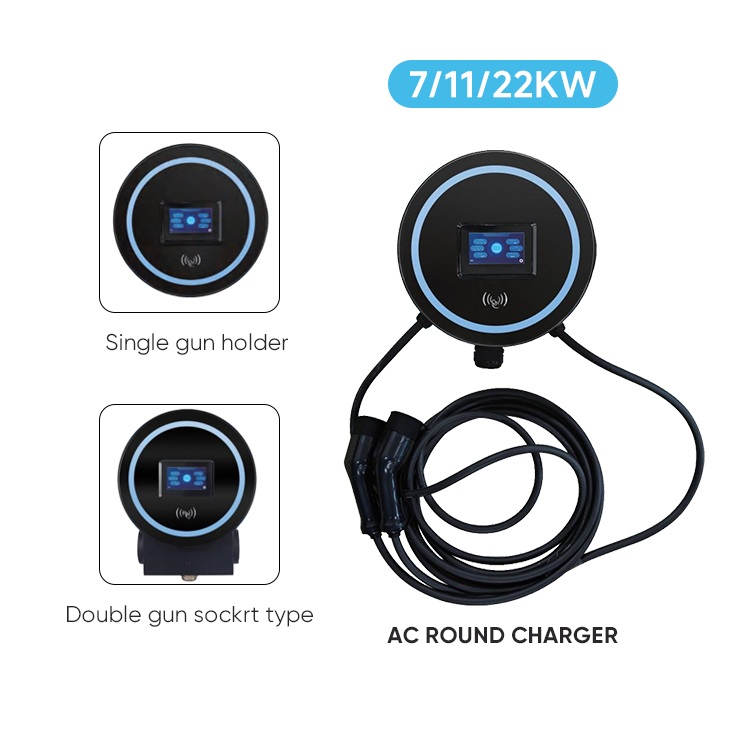

SUNWAY 7-22KW AC Round EV Charger

SUNWAY 7-22KW AC Round EV Charger

Output Power	7-22KW

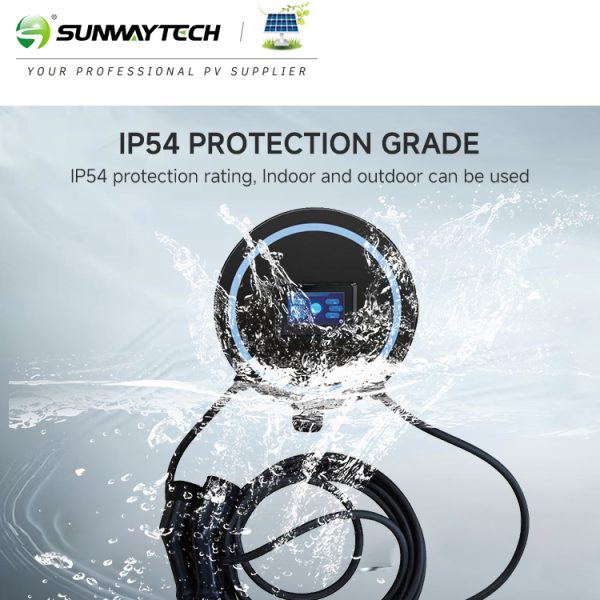

IP Rating	IP54
Networking	Wi-Fi, 4G, LAN, etc.
Weight	5.4kg/7kg
Operating Temperature	-20°℃~+50°℃

Product Model	AC0732	AC1116	AC2232
Input Voltage	AC220V	AC380V
Output Voltage	AC220V±20%	AC380V
Intput Current	32A	16A	32A
Maximum Output Current	32A	16A	32A
Output Power	7KW	11KW	20KW

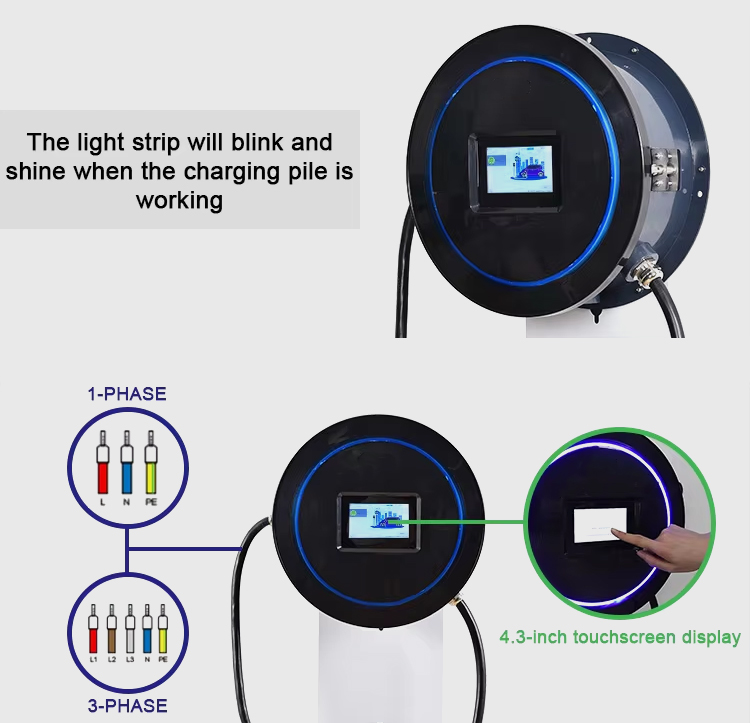

User Interface	4.3-inch color touch screen, with card swiping, supports WeChat and Alipay payment
Size(mm)	Without gun seat 350150350/ single gun seat 350150370/ double gun seat 350150450/ column 1135
Weight	5.4kg/7kg
Operating Temperature	-25~50°℃,25*C(TYPE)
IP Rating	IP54

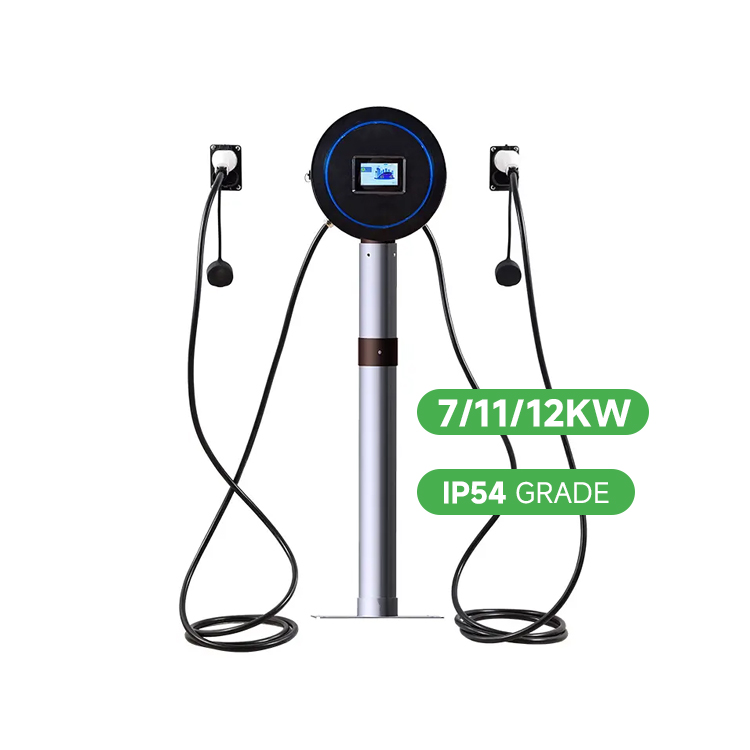

Installation	Wall hanging/Vertical hanging

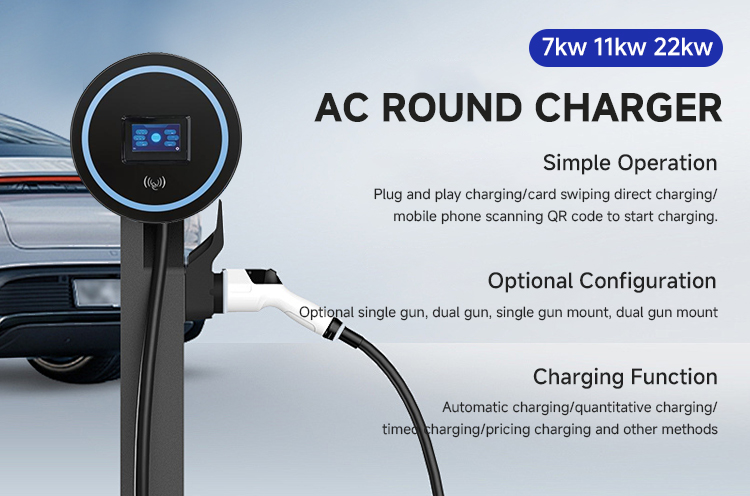

Charging Mode	Card, APP, Manual
Charging gun cable length	4M	5M	5M
Networking Protocol	OCPP1.6/Cloud Fast Charge
Smart Charging	Dynamic load balancing (optional)
Networking	Wi-Fi, 4G, LAN, etc.
Applicable Standards	GBT20234/EN62196/EN61851-1.JEVSG 105/CHADEMO

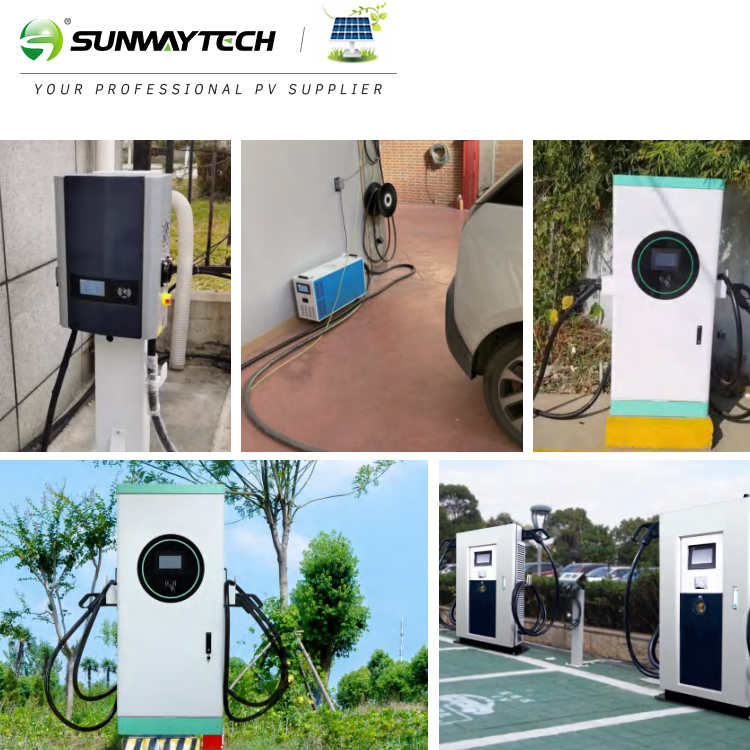

Sunway provides both stand-column and wall-mounted DC charging stations for vehicles with a power ranging from 7kW to 22kW, equipped with one to three guns to meet various applications.

Are Sunway’s DC fast chargingstations compatible with all electric vehicles?

Yes, Sunway’s DC fast charging stations are designed to be compatible with a wide range of electric vehicles. Contact Sunway now for more information of DC EV chargers.

Experience the elevated DC fast charging with SUNWAY. Our DC charger for EVs provides substantial power for speed charging, which means that you can get your car powered up and ready to go within a rather short time. With our EV DC quick charging stations, you can take long road trips without worry since you can quickly get charged whenever you need them.
