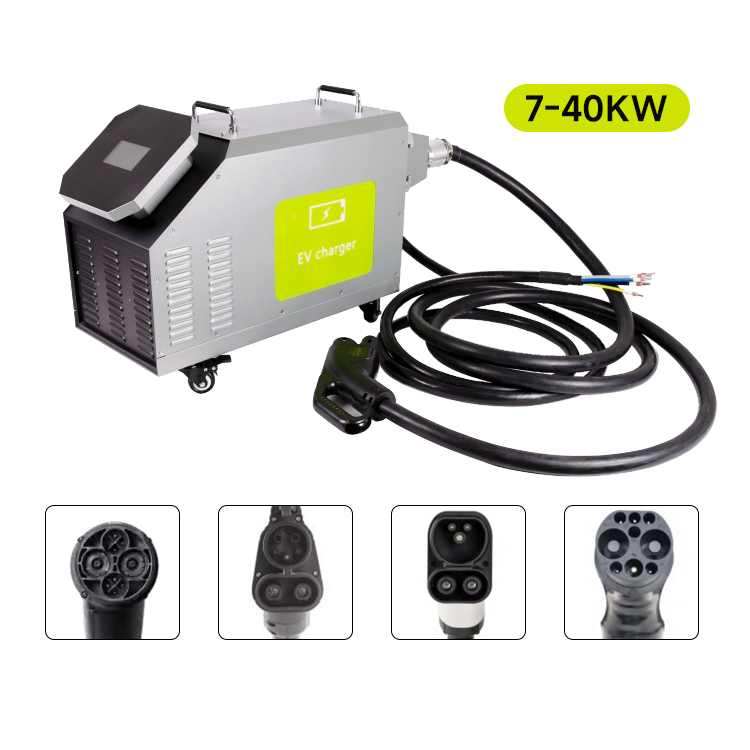

| Output Power | 7-40KW |
| IP Rating | IP44 |

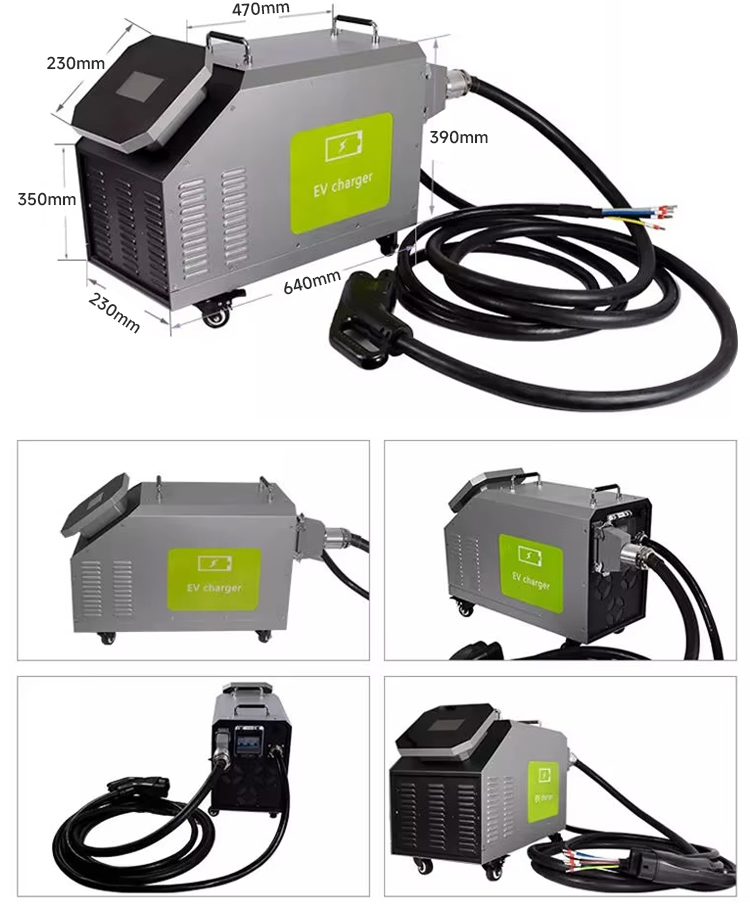

| Size(mm) | 635*295*500 |
| Weight | 20-60KG |
| Operating Temperature | -20°℃~+50°℃ |
| Product Model | XC07750 | XC15750 | XC20750 | XC30750 | XC40750 |
| Input Voltage | 90-265V | 260-475V | |||
| Input Wiring | L+N+PE | 3P+N+PE | |||
| Input Current | 32A | 25A | 32A | 45A | 64A |
| Frequency | 50/60Hz | ||||
| Power Factor | -0.99@FULL LOAD | ||||
| Work Efficiency | 95% | ||||
| Output Voltage | 200-750V(200-1000V optional) | ||||
| Output Power | 7KW | 15KW | 20KW | 30KW | 40KW |
| Output Current | 20A | 25A/37A | 33A/60A | 50A/100A | 66A/120A |

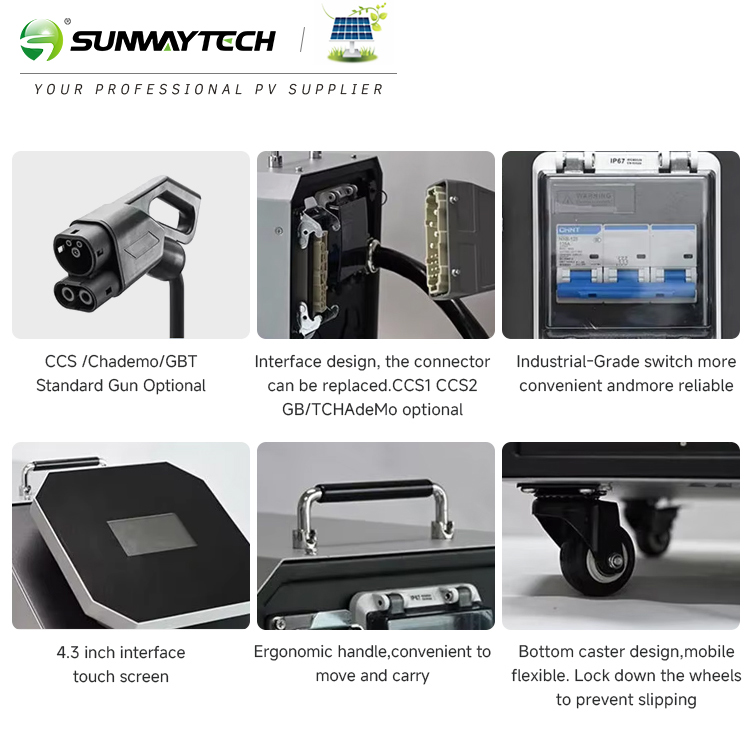

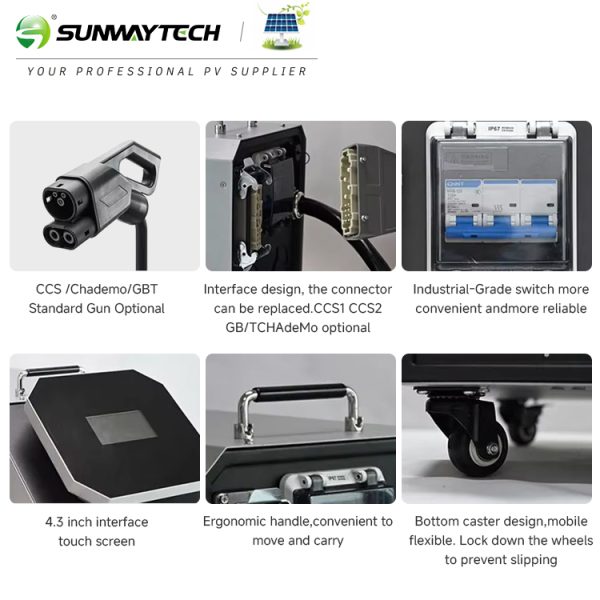

| User Interface | 4.3-inch touch screen | ||||
| Auxiliary Source | 12V(24V optional) | ||||
| Size(mm) | 635*295*500 | ||||
| Weight | 20kg | 25kg | 42kg | 50kg | 60kg |
| Operating Temperature | -20°℃~+50°℃ | ||||
| IP Rating | IP44 | ||||
