Cell Type
|
LFP
|
|
Ingress Protection
|
IP21
|
|
Communication
|
CAN & RS485
|
|
Model Number
|
SW5KS5121 |

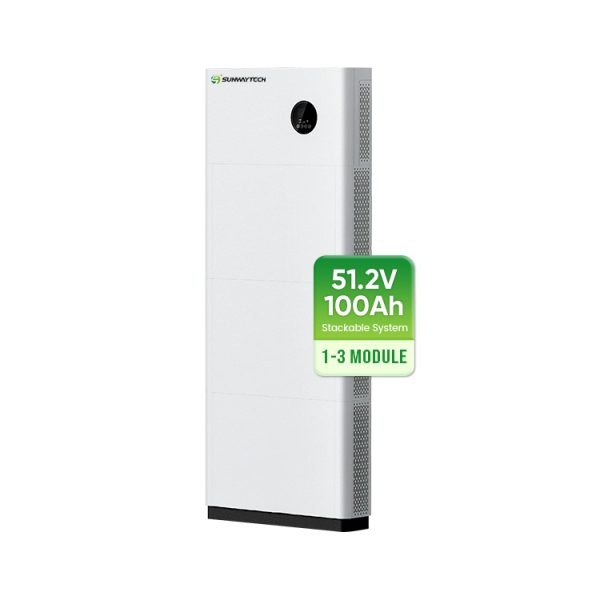

5.12KWH 10.24KWH 15.36KWH solar energy system off grid solar energy storage system lifepo4 lithium ion battery all in one for home
|
Model
|
SW5KS5121
|
SW5KS5121
|
SW5KS5121
|
|
|
1 Battery Module
|
2 Battery Module
|
3 Battery Module
|
|
PV Input
|
|||
|
Rated Voltage (V)
|
350-360
|
||
|
MPPT Voltage Operation Range(V)
|
120-500
|
||
|
Max Input Power (W)
|
6000
|
||
|
Max Input Voltage(V)
|
500
|
||
|
Max Input Current(A)
|
18
|
||
|
AC Input & Output (Grid)
|
|||
|
Max AC input Current (A)
|
40
|
||
|
Rated Output Power(W)
|
5000
|
||
|
Max Output Power (VA)
|
5000
|
||
|
Rated Output Current(A)
|
21.7
|
||
|
Max Output Current(A)
|
23.9
|
||
|
Rated Output Voltage (V)
|
220/230/240
|
||
|
THDI
|
＜3%（Nominal Power）
|
||
|
Emergency Output
|
|||
|
Max Output Power (VA)
|
5000
|
||
|
Peak Output Power (VA)
|
10000
|
||
|
Max Output Current(A)
|
16-26.1
|
||
|
Rated Output Voltage (V)
|
220/230/240(+/-0.2%)
|
||
|
Output Frequency(Hz)
|
50/60(+/-0.2%)
|
||
|
THDU
|
＜2%
|
||
|
Transfer Time (ms)
|
＜10
|
||
|
Efficiency
|
|||
|
Max Battery Discharge Efficiency
|
91%
|
||
|
Max Charge Efficiency
(PV to battery)@ Full load |
98.50%
|
||
|
System Parameter
|
|||
|
Dimensions(W*D*H)
|
674*170*775mm
|
674*170*1135mm
|
674*170*1535mm
|
|
Work Temperature Rang (°C)
|
-20~+60 (Derating @45 °C)
|
||
|
Storage Temperature(C)
|
-20~+45
|
||
|
Storage RH (%)
|
5%~90%(non-condensing)
|
||
|
Altitude(m)
|
＜2000
|
||
|
Ingress Protection
|
IP21
|
||
|
Dispaly
|
LCD/APP
|
||
|
Cooling Method
|
Natural cooling
|
||
|
Inverter Topology
|
Non-isolated
|
||
|
Installation
|
Floor-mount
|
||
|
Battery Pack Specification
|
|||
|
Cell Type
|
LFP
|
||
|
Cell Configuration
|
16S1P
|
||
|
Nominal Voltage(V)
|
51.2
|
||
|
Nominal Capa ity (Ah)
|
100
|
||
|
Nominal Energy/Module (Wh)
|
5120
|
||
|
System Energy (Wh)
|
5120(1 Module)
|
10240 (2 Modules)
|
15360 (3 Modules)
|
|
Charge Voltage(V)
|
58
|
||
|
Max Charging Current (A)
|
100
|
||
|
Max Discharging Current (A)
|
100
|
||
|
Charge Temperature Range (°C)
|
0~45
|
||
|
Discharge Temperature Range (°C)
|
-20~60
|
||
|
Storage Temperature Range (°C)
|
-20~45
|
||
|
Humidity(%)
|
5~95%RH
|
||
|
Cooling Method
|
Natural cooling
|
||
|
Cycle Life (Time)
|
>6000(80% DOD,Remaining 80%)
|
||
|
Communication
|
CAN & RS485
|
||
|
Weight (kg)
|
55
|
||
If you need other parameters, you can contact us, we have our own factory, and professional engineers, support customization.
