Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany, Italy,Belgium, Spain etc.)

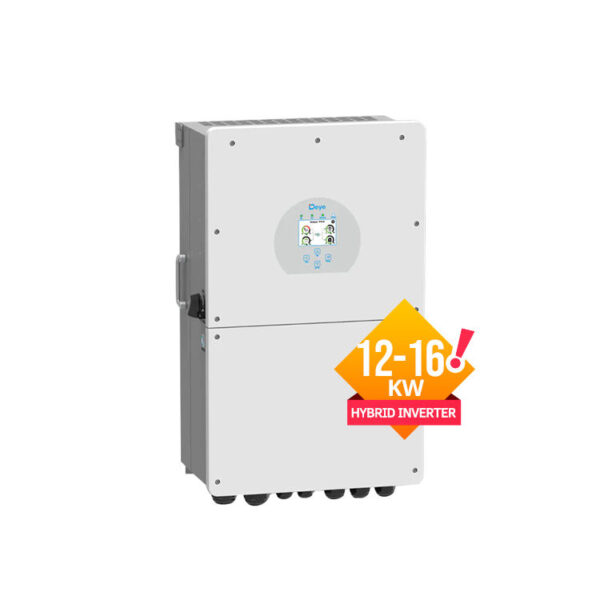

| Model Number: | SUN-16K-SG01LP1-EU |
| Output power： | 12kw 14kw 16kw |
| Output Voltage: | 230V |
| Size: | 464W*798.4H*300D(mm) |
| Weight： | 48.5KG |
Hybrid Inverter
SUN 3.6/6K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.
During the day, the PV system generates electricity which will be provided to the loads initially.
Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it.
The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It equipped with RS485/CAN port for battery communication
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
Battery Input Data | |||
Battery Type | Lead-acid or Lithium-ion | ||
Battery Voltage Range (V) | 40~60 | ||
Max. Charging Current (A) | 220 | 250 | 290 |
Max. Discharging Current (A) | 220 | 250 | 290 |
Charging Curve | 3 Stages / Equalization | ||
External Temperature Sensor | Yes | ||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
PV String Input Data | 15600 | 18200 | 20800 |
Max. DC Input Voltage (V) | 500 | ||
Start-up Voltage (V) | 125 | ||
MPPT Range (V) | 150~425 | ||
Rated DC Input Voltage (V) | 370 | ||
PV Input Current (A) | 26+26+26 | ||
Max. PV ISC (A) | 44+44+44 | ||
No.of MPPT Trackers | 3 | ||
No.of Strings Per MPPT Tracker | 2+2+2 | ||
AC Output Data | |||
Rated AC Output Active Power (W) | 12000 | 14000 | 16000 |
Max AC Output Active Power (W) | 13200 | 15400 | 17600 |
Rated AC Output Current (A) | 54.5/52.2 | 63.6/60.9 | 72.7/69.6 |
Max AC Output Current (A) | 60/57.4 | 70/67 | 80/76.5 |
Max. Continuous AC Passthrough (A) | 100 | ||
Peak Power (off grid) | 2 times of rated power, 5 S | ||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
Power Factor | 1 | ||
Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac | ||
Grid Type | Single Phase | ||
Total Harmonic Distortion (THD) | <3% (of nominal power) | ||
DC Current Injection | <0.5% 1n | ||
General Data | |||
Operating Temperature Range (℃) | -45~60℃, >45℃ Derating | ||
Cooling | Smart Cooling | ||
Noise (dB) | ≤30 dB | ||
Communication with BMS | RS485; CAN | ||
Weight (kg) | 48.5 | ||
Cabinet Size (WxHxD mm) | 464×763×282 (Excluding Connectors and Brackets) | ||
Protection Degree | IP65 | ||
Installation Style | Wall-mounted | ||
Warranty | 5 Years (10 Years Optional) | ||
Why Choose Deye Solar inverters?
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9
own subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
