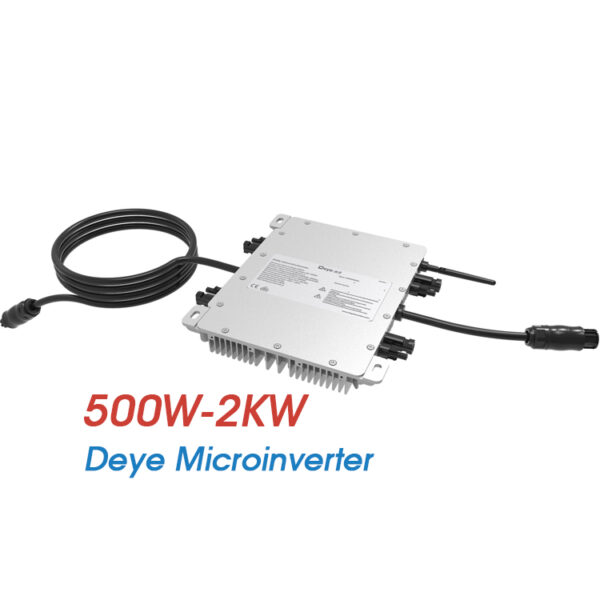

High quality Deye microinverter 500w 220V On grid inverter for Home Energy Storage Systems
| Model Number: | SUN500G3-EU-230 |
| Output power： | 500w |
| Output Voltage: | 60V |
| Size: | 189×184×31.5mm |
| Weight: | 2.15KG |
Deye microinverters power ranges from 300W to 2000W, and it comes with different output voltage 220V/230V/127V. It supports multiple communication methods
WIFI/PLC/Zigbee. Thanks to the MECD, communication gateway, the microinverter can be turned off remotely and immediately.
|
Model
|
SUN500G3-EU-230
|
SUN600G3-EU-230
|
SUN800G3-EU-230
|
SUN1000G3-EU-230
|
SUN1300G3-EU230
|
SUN1600G3-EU-230
|
SUN2000G3-EU-230
|
|
Input Data (DC)
|
|||||||
|
Recommended input Power(STC)
|
210~600W(1Piece)
|
210~400W(2Pieces)
|
210~500W(2Pieces)
|
210~600W (2Pieces)
|
210~400W(4Pieces)
|
210~500W (4 Pieces)
|
210~600W (4 Pieces)
|
|
Maximum input DC Voltage
|
60V
|
||||||
|
MPPT Voltage Range
|
25~55V
|
||||||
|
Full Load DC Voltage Range (V)
|
40~55V
|
24.5~55V
|
33~55V
|
40~55V
|
26.5~55V
|
33~55V
|
40~55V
|
|
Max. DC Short Circuit Current
|
19.5A
|
2×19.5A
|
4×19.5A
|
||||
|
Max. input Current
|
13A
|
2×13A
|
4×13A
|
||||
|
No.of MPP Trackers
|
1
|
2
|
4
|
||||
|
No.of Strings per MPPT racker
|
1
|
||||||
|
Output Data (AC)
|
|||||||
|
Rated output Power
|
500W
|
600W
|
800W
|
1000W
|
1300W
|
1600W
|
2000W
|
|
Rated output Current
|
2.2A
|
2.6A
|
3.5A
|
4.4A
|
5.7A
|
7A
|
8.7A
|
|
Nominal Voltage / Range (this may
vary with grid standards) |
230V/0.85Un-1.1Un
|
||||||
|
Nominal Frequency / Range
|
50 / 60Hz
|
||||||
|
Extended Frequency / Range
|
45~55Hz / 55~65Hz
|
||||||
|
Power Factor
|
>0.99
|
||||||
|
Maximum units per branch
|
10
|
8
|
6
|
5
|
4
|
4
|
3
|
|
Mechanical Data
|
|||||||
|
Ambient Temperature Range
|
-40~65℃
|
||||||
|
Size (mm) |
189W×184H×31.5D (Without mounting bracket and cable)
|
212W×230H×40D (Without mounting bracket and cable)
|
267W×300H×42D (Without mounting bracket and cable)
|
||||
|
Weight (kg)
|
2.15
|
3.15
|
5.2
|
||||
|
Cooling
|
Natural cooling
|
||||||
|
Enclosure Environmental Rating
|
IP67
|
||||||
|
Features
|
|||||||
|
Compatibility
|
Compatible with 60~72 cell PV modules
|
||||||
|
Communication
|
Power line / WIFI / Zigbee
|
||||||
|
Grid Connection Standard
|
EN50549-1, VDE0126-1-1, VDE 4105, ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116,
RD1699, UNE 206006 IN, UNE 206007-1 IN, IEEE1547
|
||||||
|
Safety EMC / Standard
|
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
|
||||||
|
Warranty
|
10 years
|
||||||
