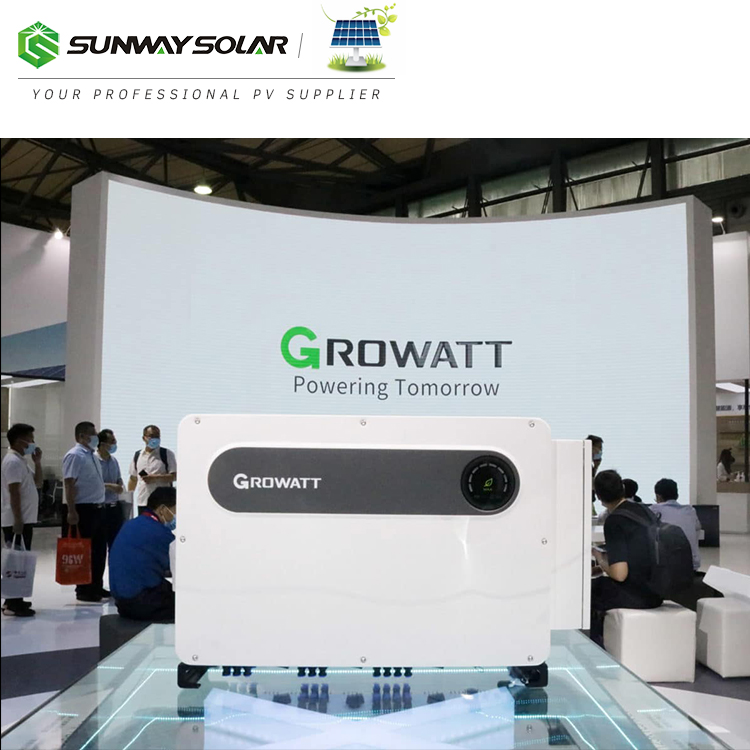

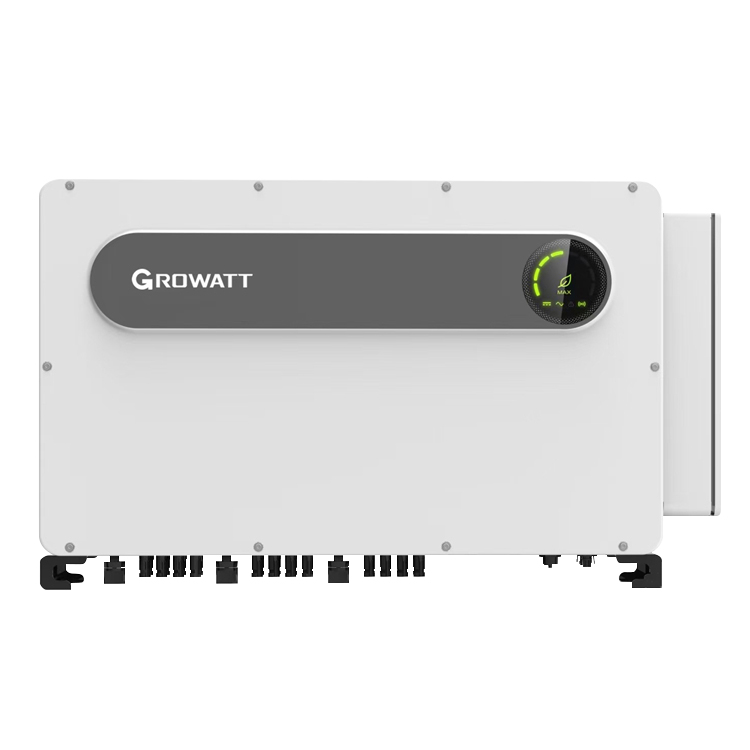

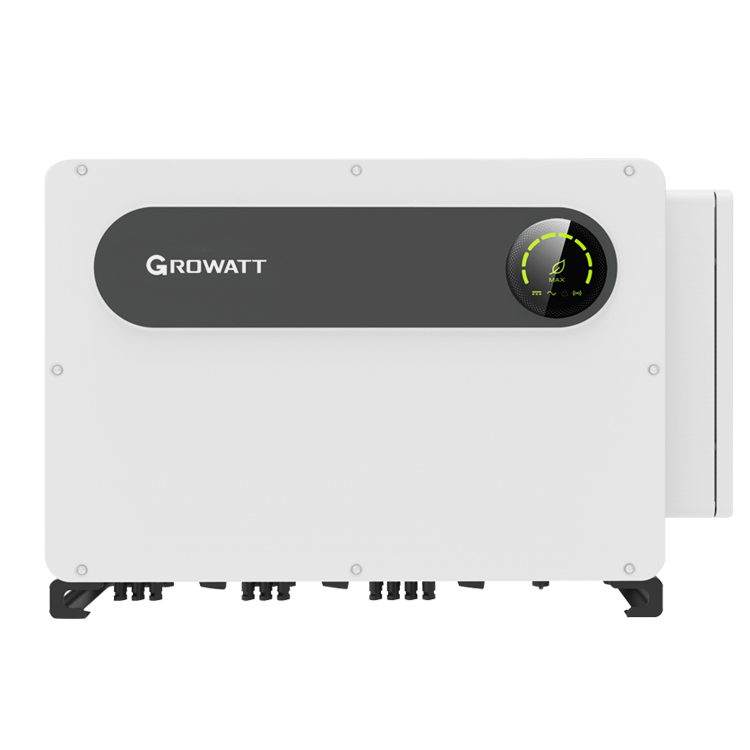

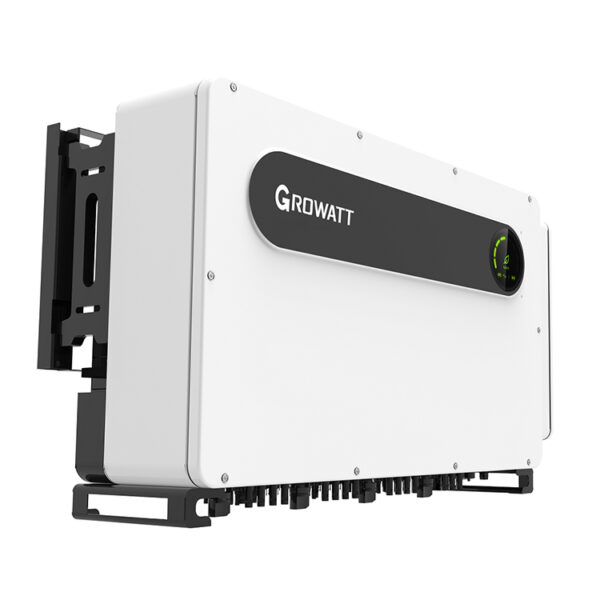

Good quality solar inverter on off grid Max 100-125KTL3-X 100kw 125kw 380V growatt on grid solar inverter in factory price
| Model Number: | Max 100-125KTL3-X |
| Output power： | 100-125kw |
| Output Voltage: | 380V |
| Size: | 970*640*345mm |
| Weight: | 84KG |

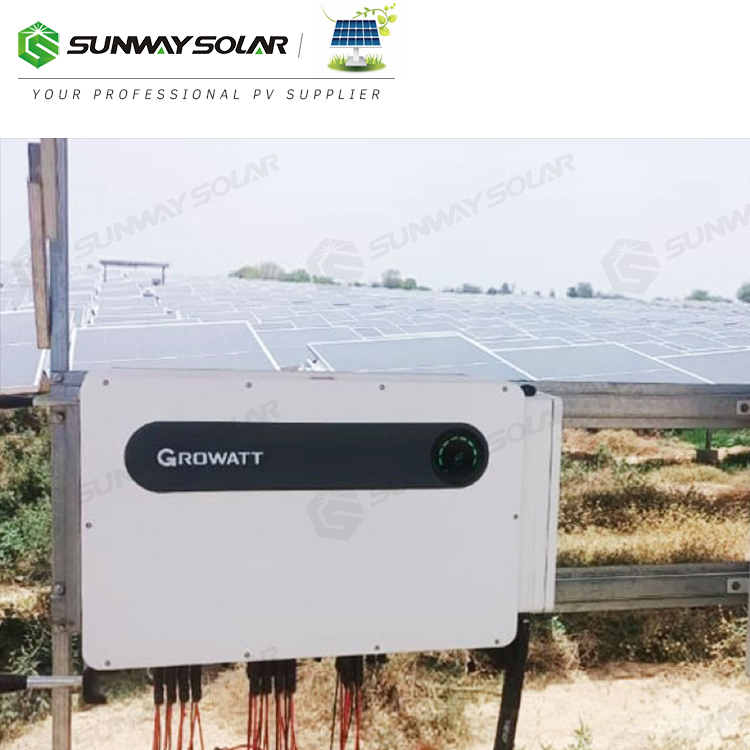

Growatt MAX 100K-125KTL3-X LV inverters are ideal for commercial roofs and large distribution projects.
– Maximum efficieny up to 98,8%– 10 MPP Trackers
– Type II Surge Arrester for AC and DC side
– Including Smart I/V scan and diagnosis
|
Datasheet
|
MAX
100KTL3-X LV
|
MAX
110KTL3-X LV
|
MAX
120KTL3-X LV
|
MAX
125KTL3-X LV
|
|
Input data (DC)
|
||||
|
Max. DC voltage
|
1100V
|
|||
|
Start Voltage
|
195V
|
|||
|
Nominal voltage
|
600V
|
|||
|
MPP voltage range
|
180-1000V
|
|||
|
No. of MPP trackers
|
10
|
|||
|
No. of PV strings per MPP tracker
|
2
|
|||
|
Max. input current per MPP tracker
|
32A
|
|||
|
Max. short-circuit current per MPP tracker
|
40A
|
|||
|
Output data (AC)
|
||||
|
AC nominal power
|
100000W
|
110000W
|
120000W
|
125000W
|
|
Max. AC apparent power
|
110000VA
|
121000VA
|
132000VA
|
137500VA
|
|
Nominal AC voltage (range*)
|
400V/380V, (340-440VAC)
|
|||
|
AC grid frequency (range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||
|
Max. output current
|
158.8A @400V 167.1A@380V
|
174.6A@400V 183.8A@380V
|
190.5A @400V 200.5A@380V
|
198.5A@400V 208.9A@380V
|
|
Adjustable power factor
|
0.8leading…0.8lagging
|
|||
|
THDi
|
<3%
|
|||
|
AC grid connection type
|
3W+N+PE
|
|||
|
Efficiency
|
||||
|
Max.efficiency
|
98.8%
|
|||
|
European efficiency
|
98.4%
|
98.5%
|
||
|
MPPT efficiency
|
99.9%
|
|||
|
General data
|
||||
|
Dimensions (W / H / D)
|
970/640/345mm
|
|||
|
Weight
|
84kg
|
|||
|
Operating temperature range
|
-30 °C ... +60 °C
|
|||
|
Nighttime power consumption
|
<1W
|
|||
|
Topology
|
Transformerless
|
|||
|
Cooling
|
Smart cooling
|
|||
|
Protection degree
|
IP66
|
|||
|
Relative Humidity
|
0~100%
|
|||
|
Altitude
|
4000m
|
|||
|
DC connection
|
H4/MC4 (Max.6mm²)
|
|||
|
AC connection
|
OT Terminal (Max. 240mm²)
|
|||
|
Display
|
LED/WIFI+APP
|
|||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
|
Yes/Yes /Optional/Optional/Optional/Optional
|
|||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
|||
