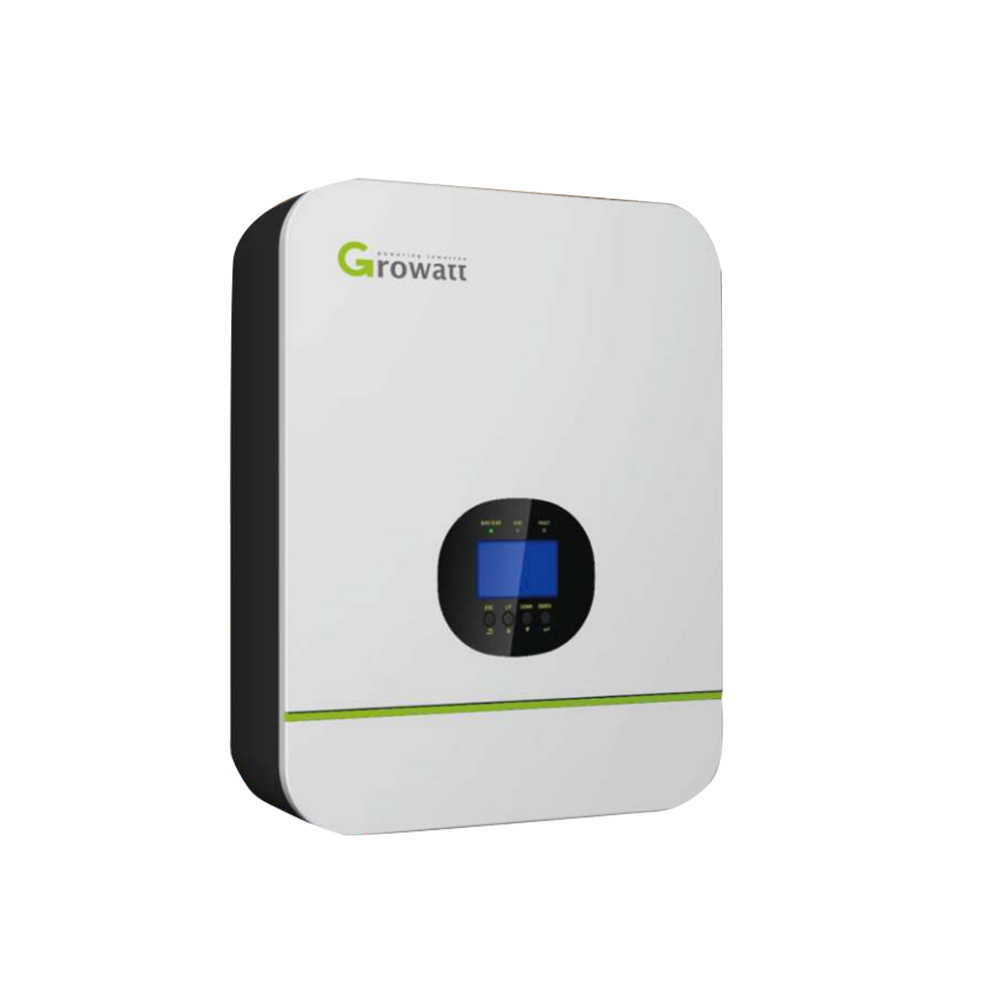

GROWATT Off-grid 3000w 220V Inverter Pure Sine Wave Power Inverter Single Phase
| Model Number: | SPF 3000TL LVM-48P |
| Output power： | 3kw |
| Output Voltage: | 230V |
| Size: | 130/350/455mm |
| Weight: | 11.5KG |
This is a multifunctional off grid solar inverter, It is an inverse control integrated machine with built-in MPPT controller a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off gridbackup power and self-consumption applications.
The transformerless design provides reliable power conversion in compact size. It can support the access of mains and diesel generators. It has a beautiful appearance, compact structure, and supports multiple monitoring methods.
|
Technical Documentation
|
||
|
Datasheet
|
SPF 3000TL LVM-24P
|
SPF 3000TL LVM-48P
|
|
Battery Voltage
|
24VDC
|
48VDC
|
|
INVERTER OUTPUT
|
||
|
Rated Power
|
3000VA/3000W
|
3000VA/3000W
|
|
Parallel Capability
|
Yes
|
Yes
|
|
AC Voltage Regulation(Battery Mode)
|
120VAC ±5% @ 50/60Hz
|
120VAC ±5% @ 50/60Hz
|
|
Surge Power
|
6000VA
|
6000VA
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10ms (For Personal Computers); 20ms (For Home Appliances)
|
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
2000W
|
45000W
|
|
MPPT Range @ Operating Voltage
|
30VDC ~115VDC
|
60VDC ~ 115VDC
|
|
Maximum PV Array Open Circuit Voltage
|
145VDC
|
145VDC
|
|
Maximum Solar Charge Current
|
80A
|
80A
|
|
Maximum Efficiency
|
98%
|
|
|
Standby Power Consumption
|
2W
|
|
|
AC CHARGER
|
||
|
Maximum AC Charge Current
|
60A
|
40A
|
|
AC Input Voltage
|
120VAC
|
120VAC
|
|
Selectable Voltage Range
|
95-140 VAC ( For Personal Computers); 65-140 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
50Hz/60Hz (Auto sensing)
|
|
PHYSICAL
|
||
|
Dimension (D/W/H) in mm
|
130/350/455
|
130/350/455
|
|
Net Weight (kgs)
|
11.5
|
11.5
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5%-95% Relative Humidity (Non-condensing)
|
|
|
Operating Temperature
|
0℃~55℃
|
|
|
Storage Temperature
|
-15℃~60℃
|
|
