Sunwaysolar Off Grid Inverter Solar Growatt 3500w 5000w 230V Mppt Inverters Without Battery
| Model Number: | SPF 3500-5000ES |
| Output power： | 3.5-5kw |
| Output Voltage: | 230V |
| Size: | 330/485/135mm |
| Weight: | 11.5KG |

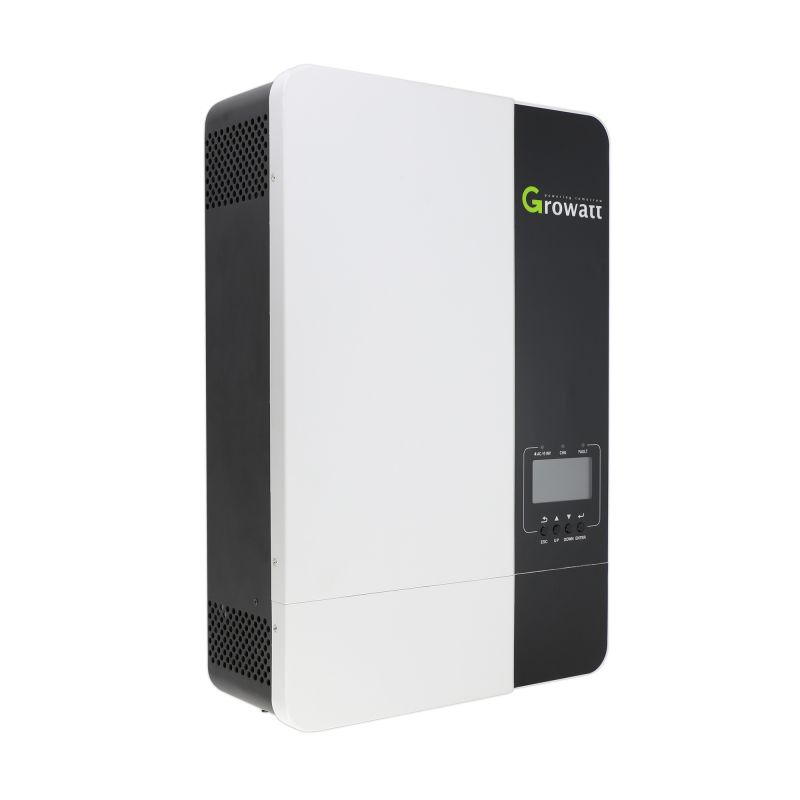

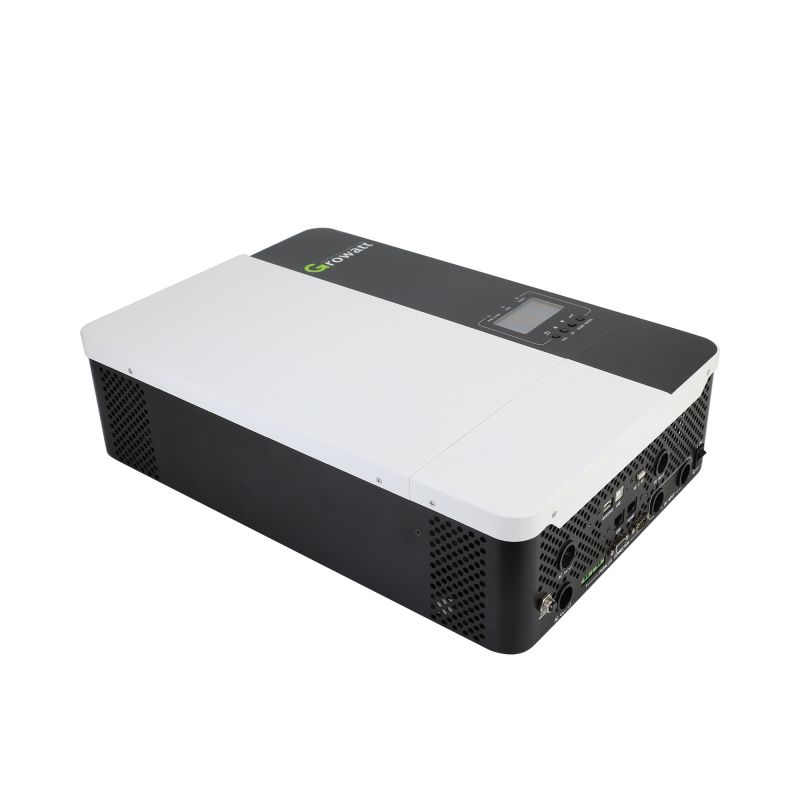

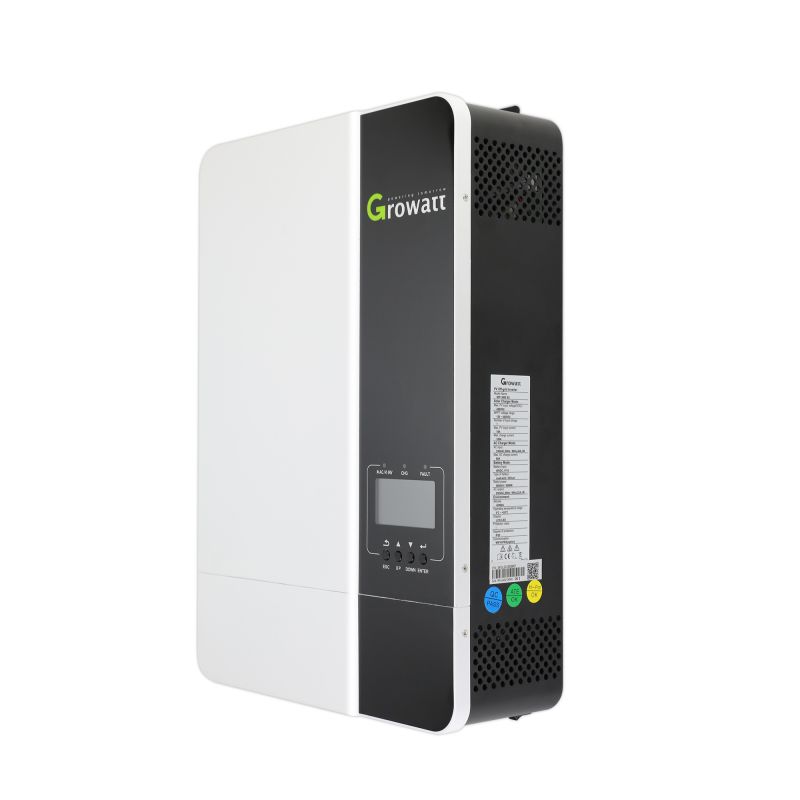

Growatt SPF3500~5000ES

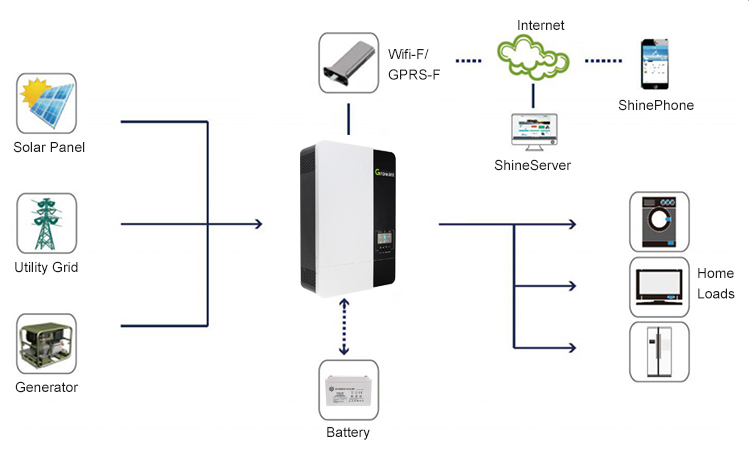

Is 230VAC output voltage off-grid inverter for backup power and self-consumption application, maximum PV input voltage up to 450VDC. also it can work without battery to saving system investment cost.
Features of Growatt SPF3500~5000ES Off Grid Inverter
1. Integrated MPPT charge controller. 2. Equalization charging function.
3. Work with battery or without battery.
4. Maximum PV input voltage up to 450VDC.
5. Configurable grid or solar input priority.
6. Optional WIFI/ GPRS remote monitoring.
7. Support parallel operation for capacity expansion up to 30kW.
8. PV and Grid power the load jointly if PV energy unsufficient.
9. Flexibly schedule the Inverter charging and discharging time.
|
Datasheet
|
SPF3500ES
|
SPF5000ES
|
|
Battery Voltage
|
48VDC
|
|
|
Battery Type
|
Lithium/Lead-acid
|
|
|
INVERTER OUTPUT
|
|
|
|
Rated Power
|
3500VA/ 3500W
|
5000VA/ 5000W
|
|
Parallel Capability
|
Yes, 6 units maximum
|
|
|
AC Voltage Regulation (Battery Mode)
|
230VAC ± 5% @ 50/60Hz
|
|
|
Surge Power
|
7000VA
|
10000VA
|
|
Efficiency (Peak)
|
93%
|
|
|
Waveform
|
Pure sine wave
|
|
|
Transfer Time
|
10ms typical, 20ms Max
|
|
|
SOLAR CHARGER
|
|
|
|
Maximum PV Array Power
|
4500W
|
6000W
|
|
MPPT Range @ Operating Voltage
|
120VDC ~ 430VDC
|
|
|
Number of Independent MPP Trackers/ Strings Per MPP Tracker
|
1/1
|
|
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|
|
Maximum Solar Charge Current
|
80A
|
100A
|
|
AC CHARGER
|
|
|
|
Charge Current
|
60A
|
80A
|
|
AC Input Voltage
|
230VDC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances) |
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|
|
PHYSICAL
|
|
|
|
Protection Degree
|
IP20
|
|
|
Dimension (W/H/D)
|
330/485/135mm
|
330/485/135mm
|
|
Net Weight
|
11.5kgs
|
12kgs
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Altitude
|
＜2000m
|
|
|
Operating Temperature
|
0℃~55℃
|
|
|
Storage Temperature
|
-15℃~60℃
|
|
