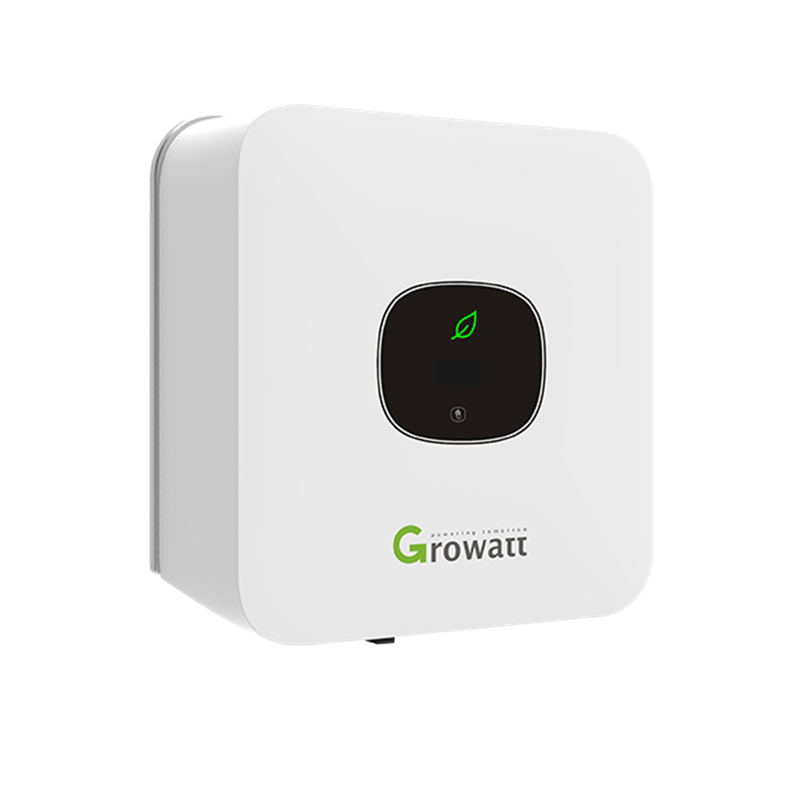

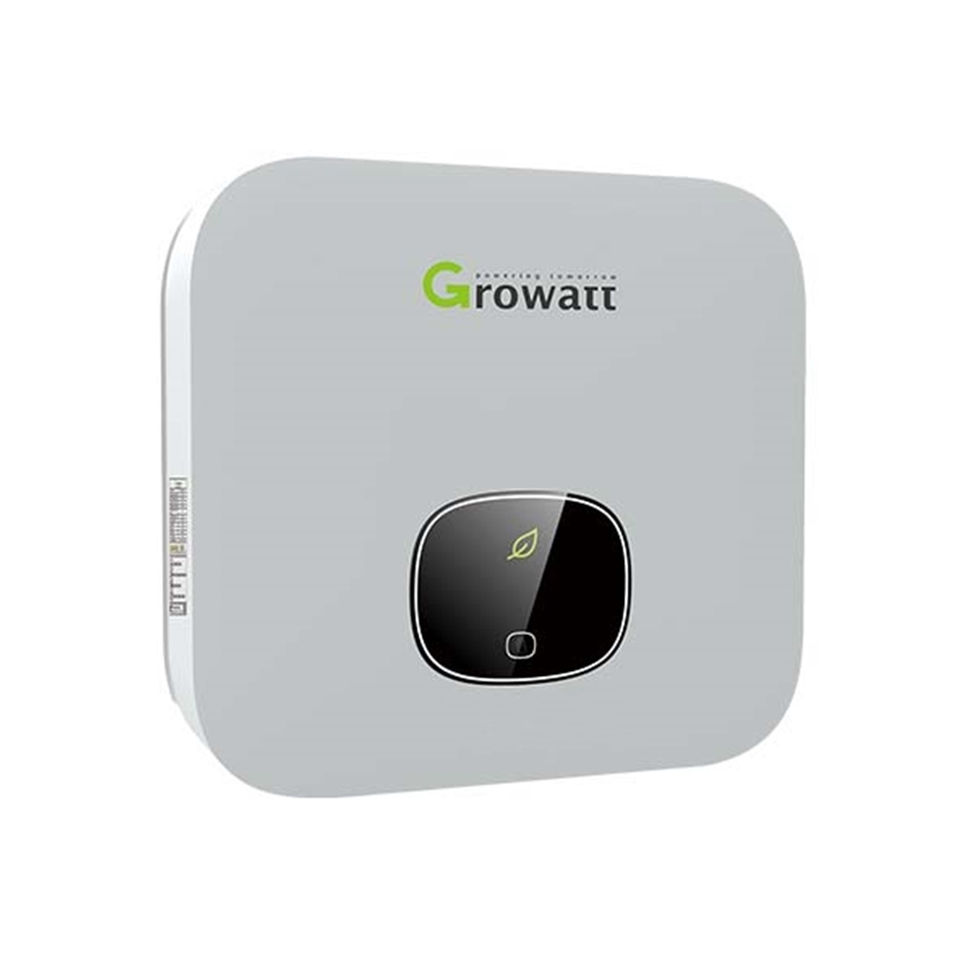

Growatt On Grid Solar Inverter Mid 2500w 6000w 220V Dual Mppt Trackers Growatt On Grid Inverter With USB
| Model Number: | MIN 4200TL-X |
| Output power： | 2.5-6kw |
| Output Voltage: | 230V |
| Size: | 355*419*158mm |
| Weight: | 15KG |
5kw On Grid Inverter
*Double MPPT Tracker, MPPT tracking accuracy more than 99.5% *Max. Efficiency 97.9%, European Efficiency 97.4%
*Transformerless design and high power density, offer lighter and more convenient installation
*5 years standard warranty
*Power factor continuously adjustable
*Flexible communication connection, support RF, WiFi, Ethernet
*Comply with European, Australia, Asia-Pacific safety regulations
|
Datasheet
|
MIN3000TL-X
|
MIN4000TL-X
|
MIN5000TL-X
|
MIN5500TL-X
|
|
Max. recommended PV power
(for module STC)
|
4680W
|
5460W
|
5980W
|
6500W
|
|
Max. DC voltage
|
500V
|
500V
|
500V
|
500V
|
|
Start voltage
|
100V
|
100V
|
100V
|
100V
|
|
MPP work voltage range/
nominal voltage
|
80V-550V /360V
|
80V-550V /360V
|
80V-550V /360
|
80V-550V /360V
|
|
Full load dc voltage range
|
190V-500V
|
150V-500V
|
160V-500V
|
175V-500V
|
|
Max. input current of tracker A/tracker B
|
10A/10A
|
15A/15A
|
15A/15A
|
15A/15A
|
|
Max. input current per string of tracker A/tracker B
|
10A/10A
|
15A/15A
|
15A/15A
|
15A/15A
|
|
Number of independent MPP trackers / strings per MPP tracker
|
2/1
|
2/1
|
2/1
|
2/1
|
|
Output (AC)
|
||||
|
Rated AC output power
|
3600W
|
4200W
|
4600w
|
5000w
|
|
Max. AC apparent power
|
3600VA
|
4200VA
|
4600VA
|
5000VA
|
|
Max. output current
|
16.3A
|
19A
|
20.9A
|
22.7A
|
|
AC nominal voltage; range
|
220V/230C/240V;180Vac-280Vac
|
220V/230C/240V;180Vac-280Vac
|
220V/230C/240V;180Vac-280Vac
|
220V/230C/240V;180Vac-280Vac
|
|
AC grid frequency; range
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
50Hz,60Hz / 5Hz
|
|
Displacement power factor,
configurable
|
0.8leading…
0.95lagging
|
0.8leading…
0.95lagging
|
0.8leading…
0.95lagging
|
0.8leading…
0.95lagging
|
|
THDi
|
<3%
|
<3%
|
<3%
|
<3%
|
|
AC connection
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
