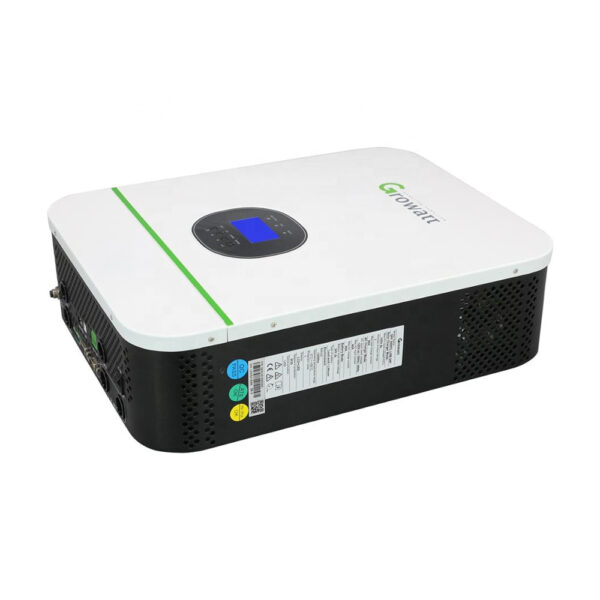

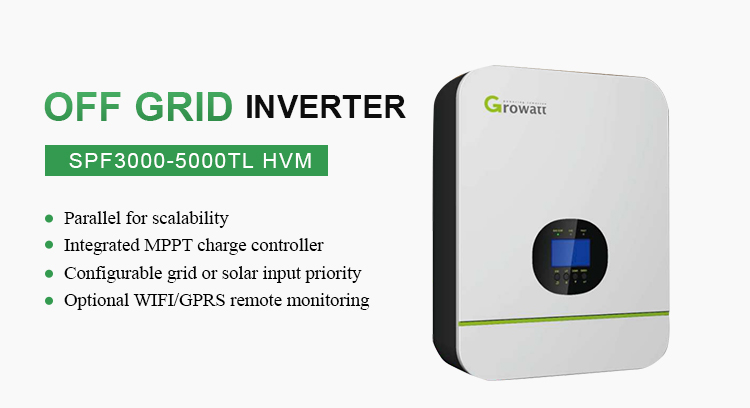

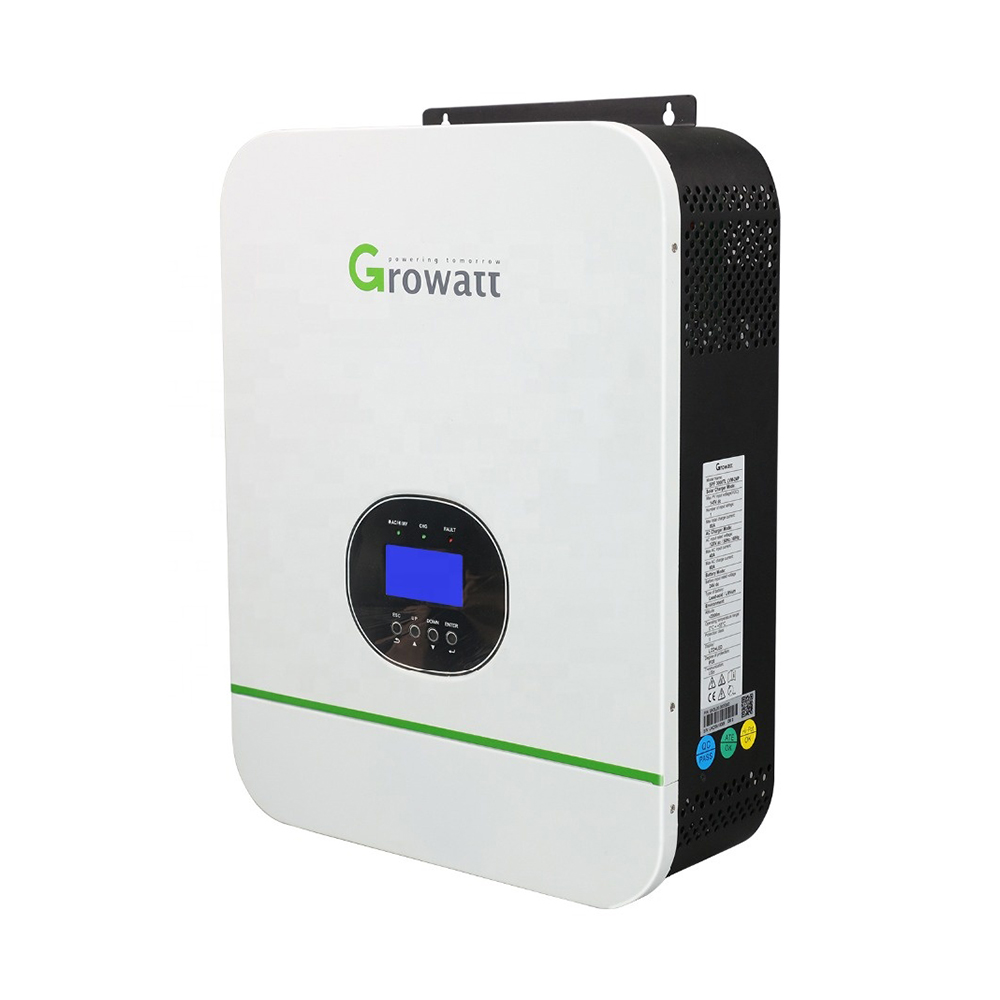

Growatt single phase solar inverter off grid 3kw 5kw 230V power inverter
| Model Number: | SPF 5000TL HVM |
| Output power： | 3-5kw |
| Output Voltage: | 230V |
| Size: | 350*455*130mm |
| Weight: | 14.5KG |
|
Technical Documentation
|
||||
|
Datasheet
|
SPF 3000TL HVM
|
SPF 5000TL HVM
|
|
|
|
Battery Voltage
|
24VDC/48VDC
|
48VDC
|
|
|
|
INVERTER OUTPUT
|
|
|
||
|
Rated Power
|
3000VA/3000W
|
5000VA/5000W
|
|
|
|
Parallel Capability
|
No
|
Yes, 6 units
|
|
|
|
AC Voltage Regulation(Battery Mode)
|
230VAC ±5% @ 50/60Hz
|
230VAC ±5% @ 50/60Hz
|
|
|
|
Surge Power
|
6000VA
|
10000VA
|
|
|
|
Efficiency (Peak)
|
93%
|
|
|
|
|
Waveform
|
Pure sine wave
|
|
|
|
|
Transfer Time
|
10ms (For Personal Computers); 20ms (For Home Appliances)
|
|
|
|
|
SOLAR CHARGER
|
|
|
||
|
Maximum PV Array Power
|
1000W/2400W
|
45000W
|
|
|
|
MPPT Range @ Operating Voltage
|
30VDC ~ 80VDC/60VDC~115VDC
|
60VDC ~ 115VDC
|
|
|
|
Maximum PV Array Open Circuit Voltage
|
102VDC/145VDC
|
145VDC
|
|
|
|
Maximum Solar Charge Current
|
50A/40A
|
80A
|
|
|
|
Maximum Efficiency
|
97%
|
|
|
|
|
Standby Power Consumption
|
2W
|
|
|
|
|
AC CHARGER
|
|
|
||
|
Maximum AC Charge Current
|
30A
|
60A
|
|
|
|
AC Input Voltage
|
230VAC
|
230VAC
|
|
|
|
Selectable Voltage Range
|
170-280 VAC ( For Personal Computers); 90-280 VAC (For Home Appliances)
|
|
|
|
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
50Hz/60Hz (Auto sensing)
|
|
|
|
PHYSICAL
|
|
|
||
|
Dimension (D/W/H) in mm
|
120/315/390
|
130/350/455
|
|
|
|
Net Weight (kgs)
|
8
|
14.5
|
|
|
|
OPERATING ENVIRONMENT
|
|
|
||
|
Humidity
|
5%-95% Relative Humidity (Non-condensing)
|
|
|
|
|
Operating Temperature
|
0℃~55℃
|
|
|
|
|
Storage Temperature
|
-15℃~60℃
|
|||
