| Reliable Quality |
| Positive power tolerance: 0~+5W |
| 100% EL Double-inspection ensures modules are defects free |
| Modules Binned by Current to improve system performance |
| Potential induced Degradation (PID) Resistant |
| Electrical Parameters | ||||||
| Maximum Power Pmax (W) | 450 | 455 | 460 | 465 | 470 | 475 |
| Maximum Power Voltage (Vmp/V) | 34.60 | 34.80 | 35.00 | 35.20 | 35.40 | 35.80 |
| Maximum Power Current (Imp/A) | 13.01 | 13.07 | 13.15 | 13.22 | 13.28 | 13.27 |
| Open Circuit Voltage (Voc/V) | 41.40 | 41.60 | 41.80 | 42.00 | 42.20 | 42.40 |
| Short Circuit Current (Isc/A) | 13.68 | 13.73 | 13.78 | 13.83 | 13.86 | 13.92 |
| Module Efficiency (%) | 20.79 | 21.02 | 21.25 | 21.48 | 21.72 | 21.94 |
| Power Tolerance (W) | 0 ~ +5W | |||||
| Temperature Coefficient of Isc (αIsc) | +0.05%/℃ | |||||
| Temperature Coefficient of Voc (βVoc) | -0.282%/℃ | |||||
| Temperature Coefficient of Pmax (γPmp) | -0.348%/℃ | |||||
| STC | Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5 | |||||
| Mechanical parameters | |
| Cell(mm | Mono 182*91mm |
| Weight(kg) | 24kg |
| Glass Thickness | 3.2mm |

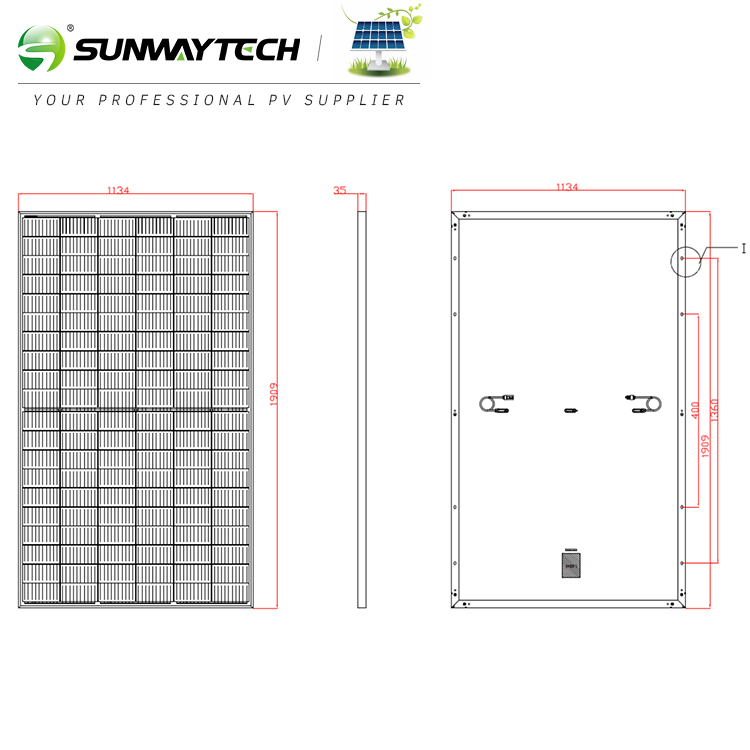

| Dimensions (L*W*H)(mm) | 1909*1134*35mm |
| Cable Cross-Section Size (mm²) | 4 |
| Cable Cross-Section Length (mm) | 300 |
| No.of Cells and Connections | 120(6*20) |
| Junction Box | ≥IP68 |
| Connector | MC4 Compatible |
| Working Conditions | |
| Maximum System Voltage | DC 1500V |
| Operating Temperature | -40℃~ +85℃ |
| Maximum Series Fuse | 25A |
| Maximum Static Load,Front (e.g.,snow and wind) | 5400Pa (112 lb/ft²) |
| Maximum Static Load,Back (e.g.,wind) | 2400Pa (50 lb/ft²) |
| NOCT | 45±2℃ |
| Positive power tolerance | 0~ +5W |
| Application Class | Class A |
