| Protection Class | IP65 |
|
Dimension
|
570*400*240mm
|
|
Weight(Kg)
|
95±2kg
|
| Nominal Voltage (V) | 51.2V |
|
Nominal Capaaity (AH)
|
100Ah
|
Stacked Lithium Battery is short for Lithium Iron Phosphate Battery, some people also call it LFP Battery. It is a kind of
rechargeable battery widely used in new energy industry, which is gradually replacing the traditional lead-acid solar battery.
|
Models
|
SW51R100W2
|
SW51R200W2
|
|
Nominal Voltage
|
51.2V
|
51.2V
|
|
Actual Voltage@20% SOC
|
51.2V
|
51.2V
|
|
AMP-HRS
|
100
|
205
|
|
Nameplate Capacity
|
5.12KWH
|
10.5KWH
|
|
Parallel
|
40 units
|
40 units
|
|
Charging/Discharging
|
||
|
Maximum Continuous Discharge Current
|
90A
|
140A
|
|
Recommended Discharge(Maximum AMPS)
|
75A
|
120A
|
|
Maximum Continuous Discharge
|
4.6KW
|
7.2KW
|
|
Surge Discharge AMPS 0.5 (microseconds)
|
1000
|
1000
|
|
Surge Discharge 10MS
|
200
|
300
|
|
Maximum Charge Current - Continuous
|
70
|
120
|
|
Peak Charge Current - 30 Minutes
|
80
|
140
|
|
Recommended Voltage Range (cycle)
|
51-56.5
|
51-56.5
|
|
Max Voltage Range (cycle)
|
48-57.6
|
48-57.6
|
|
Recommended Absorption Voltage
|
56.8
|
56.8
|
|
Maximum Absorption Voltage - Solar Only
|
57.6
|
57.6
|
|
Absorption Completed Amperes/each battery
|
5
|
10
|
|
Absorption Completion Time (minutes)
|
10
|
10
|
|
Float Voltage
|
54.4
|
54.4
|
|
Operational
|
||
|
Rated Cycle Life-100% DOD
|
4000
|
4000
|
|
Rated Cycle Life- 80% DOD
|
6000
|
6000
|
|
Rated Cycle Life- 50% DOD
|
8500
|
8500
|
|
Maximum Recommended Discharge Voltage
|
51V(20%)
|
51V(20%)
|
|
Inverter Low Battery Cutout
|
48V
|
48V
|
|
Low Voltage Cutout Wakeup
|
44
|
44
|
|
High Voltage Cutout Wakeup
|
55
|
55
|
|
Environment/Installation
|
||
|
Minimum Temperature (Fahrenheit)
|
32
|
32
|
|
Maximum Temperature (Fahrenheit)
|
120
|
120
|
|
Maximum Number of Batteries Per Stack
|
6
|
4
|
|
IP Rating
|
50
|
50
|
|
Installation Position
|
Horizontal with base unit only
|
Horizontal with base unit only
|
|
Internal
|
||
|
Cell Chemistry
|
LIFEPO4
|
LIFEPO4
|
|
BMS AMP Ratings
|
150
|
200
|
|
Balancing Type
|
Impactive
|
Impactive
|
|
Cell Connection
|
Welded Busbar
|
Welded Busbar
|

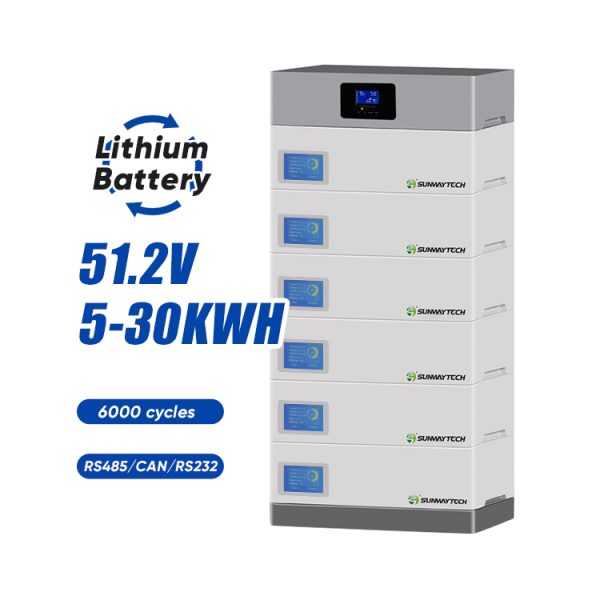

The 51.2V modular lithium-ion battery has a modular stacked design with up to 6000 cell cycles This battery is high-density, small in size, and light in weight. The intelligent BMs allows communication with different brands ofsolar inverters, while Sunway promises you a 5-vear warranty,
